5.15.8 Recommended AC Output Wire Strip Lengths

The following wire strip lengths are required for the output wires
listed.
Phase A, B & C Wires:
Neutral Wire:
Note AC input, AC Load and sense wiring are NOT included with
the power source Cabinet and must be supplied by the end-user. Only internal
cabinet wiring and terminal blocks are included.
5.15.9 Cabinet Load Connections – Three Phase WYE Loads

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
AFX Series Power Source Operation Manual
11/16", 17 mm
1 9/16", 40 mm
L1

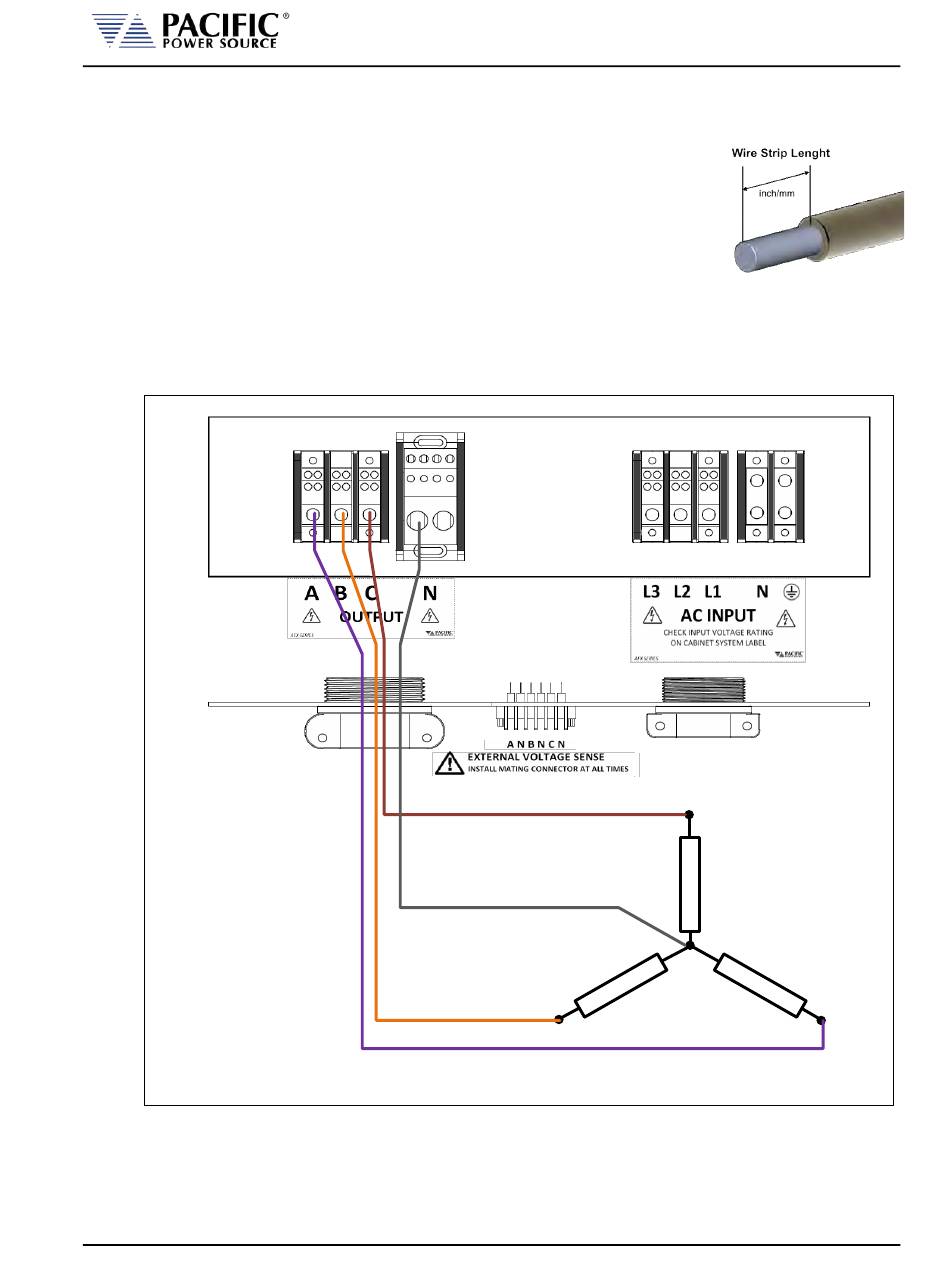

Figure 5-17: WYE Load Connection Diagram

AFX SERIES® OPERATION MANUAL
SECTION 5: UNPACKING AND INSTALLATION
L2
N
L3
