5.12.1 Air Filter Removal

To remove the air filter, proceed as follows:
1. Turn the unit off first.
2. Using a small Philips screwdriver, remove the four M3 Philips screws from each
corner of the filter panel on the front of the unit.
3. Pull the filter panel toward you carefully and remove the filter material.

5.12.2 Filter Cleaning

Use warm water and some mild detergent to rinse all dirt out of the filter material. Allow
the filter do dry for 2 hours or more till fully dry before re-installing. If the filter material is
too dirty to clean, replace with a new filter. Contact customer service for replacement
filters.

5.12.3 Air Filter Installation

To reinstall the filter material, proceed as follows:
1. Place the cleaned filter material against the lower part of the units front panel.
2. Line up the filter materials so the corner cut-outs align with the four corners
3. Install the removable filter panel using the four M3 Philips screws.

5.13 Liquids

The AFX Series® of AC power sources offer no protection against liquid spills. Do not install where
chemicals are used or where liquids could spill into the unit.

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
AFX Series Power Source Operation Manual

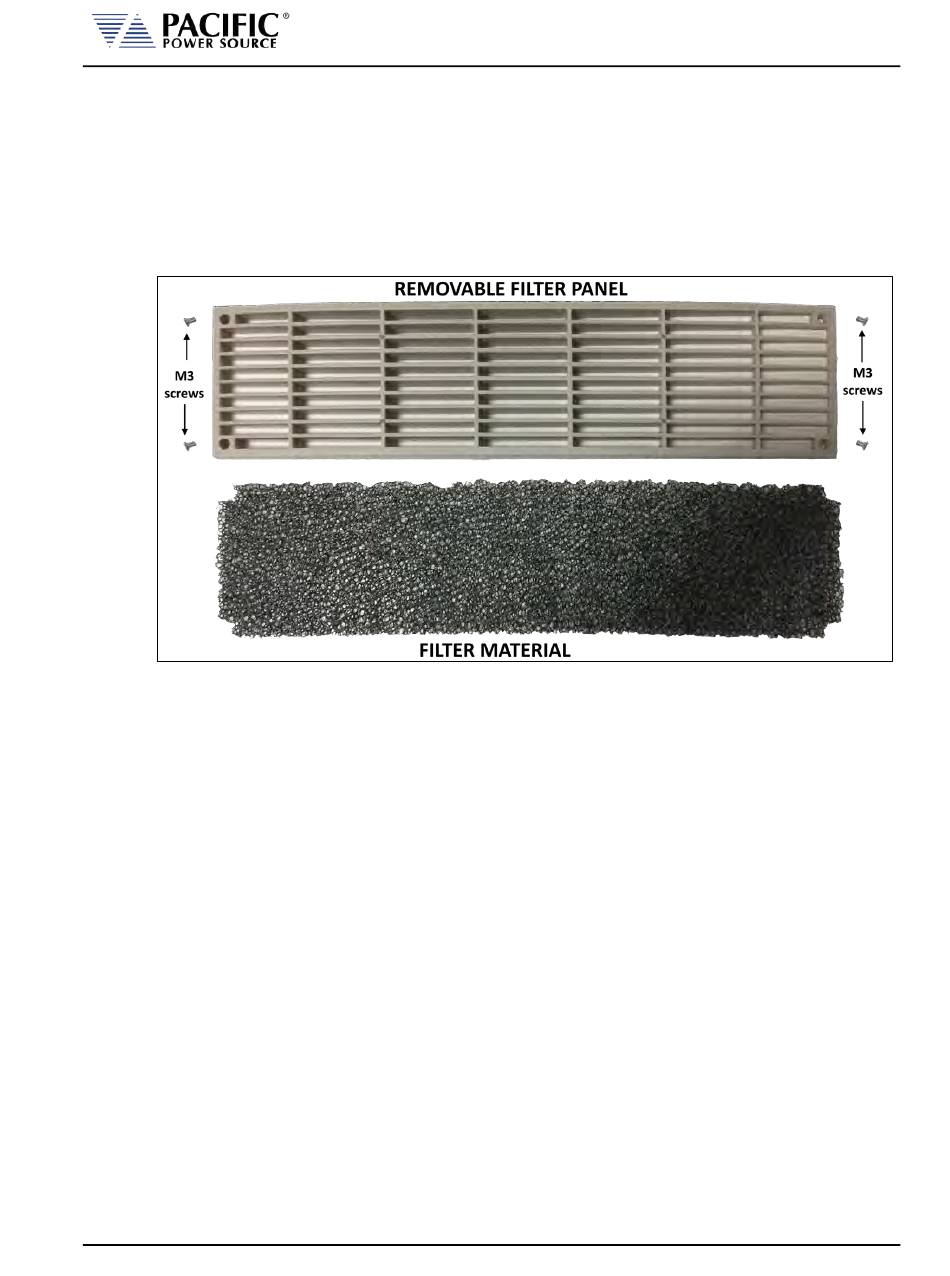

Figure 5-7: Air Intake Filter and Filter Panel
