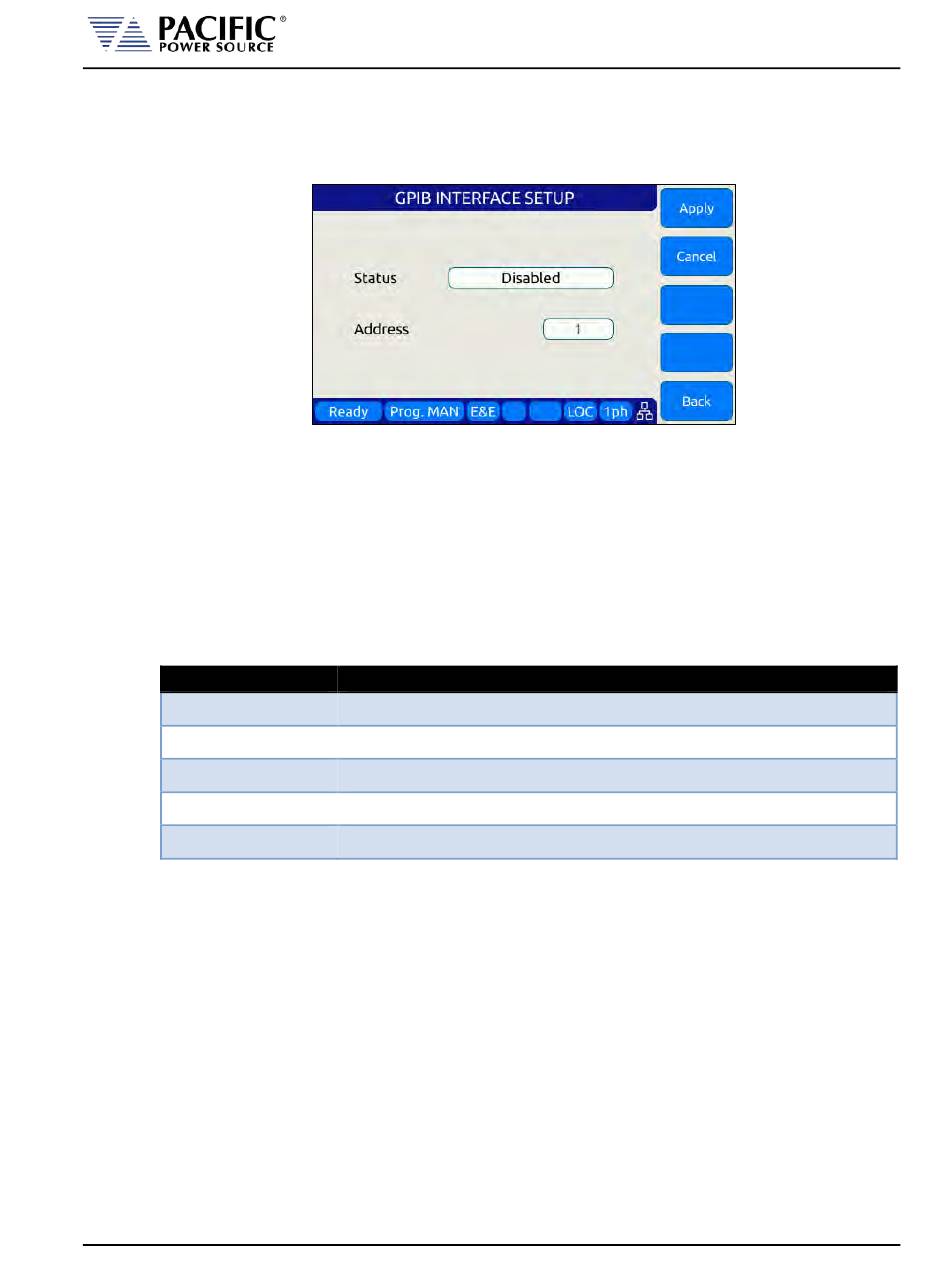

6.8.5.6 GPIB INTERFACE SETUP Screen
The GPIB INTERFACE SETUP screen allows configuring the GPIB interface and is accessed
from the INTERFACE SETUP screen.
The following settings can be configured on this screen:
Status
Address
The following soft keys are available from the GPIB INTERFACE SETUP screen:
SOFT KEY
Apply (SK1)
Cancel (SK2)
-
-
Back (SK5)
6.8.5.7 DIGITAL & ANALOG I/Os SETUP Screen
The Digital & Analog IOs SETUP screen allows configuring the auxiliary I/O interfaces and is
accessed from the INTERFACE SETUP screen.
For further details, refer to Section 7.3, "Auxiliary I/O" on page 189.

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
AFX Series Power Source Operation Manual
Figure 6-31: USB INTERFACE SETUP Screen
Enables or disables the GPIB interface. Disable when not in
use to avoid erroneous interrupts.
Sets GPIB bus address. Available range is from 1 through 30.
Default factory setting is address 1.
Description
Accepts new settings and returns to previous screen.
Returns to the previous screen.
Returns to the previous screen.

Table 6-33: Available GPIB INTERFACE SETUP screen soft keys
