6.7.8

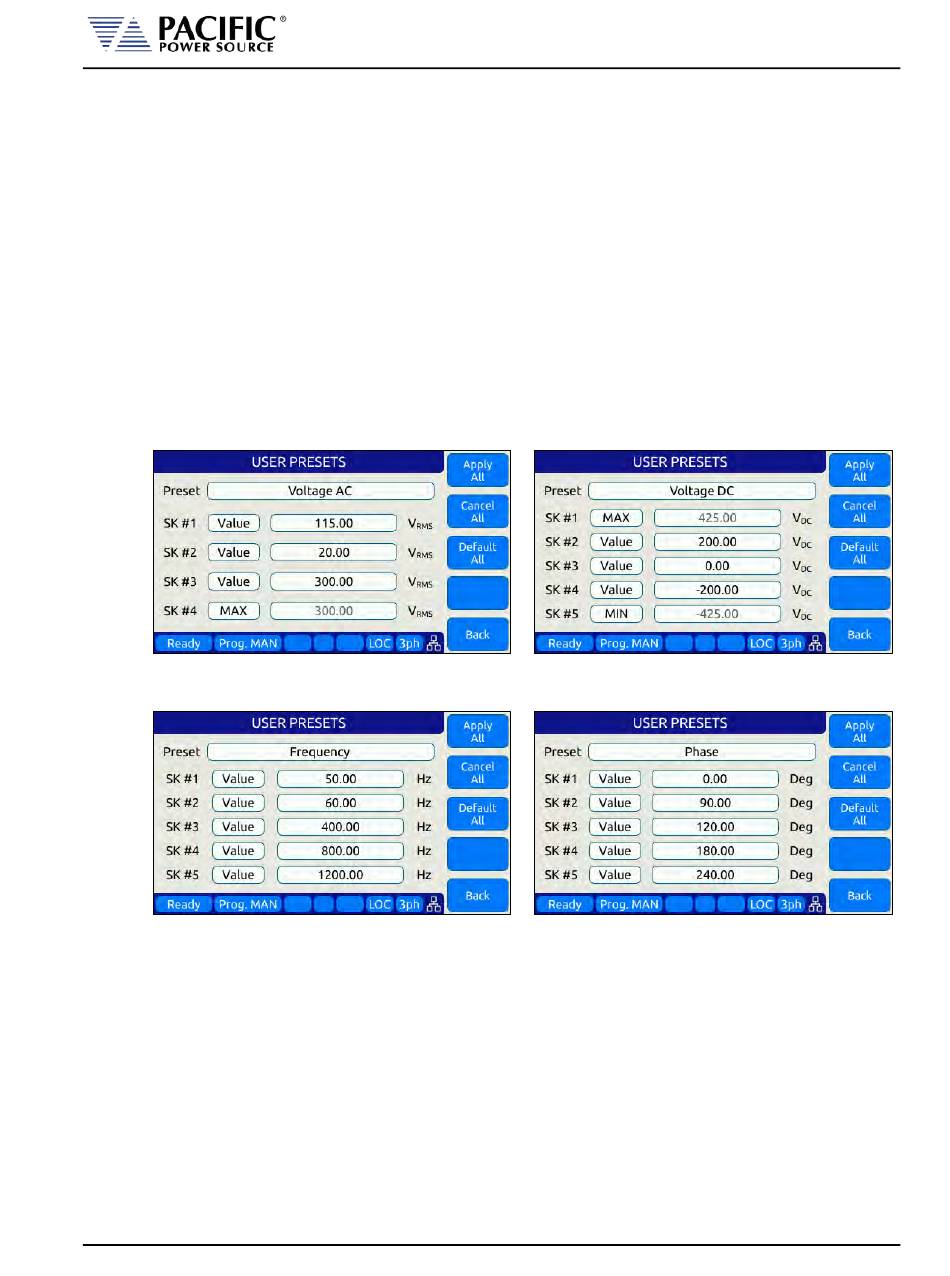

USER PRESETS Screen
The USER PRESETS screen allows the soft key set values for output programming that
appear in the PROGRAM screen to be changed to setting values preferred by the user.
Presets can be defined for the following output settings:
VOLTage[:AC]
•
VOLTage:DC
•
FREQuency
•
•
PHASe
CURRent:LIMit
•
•
POWer:LIMit
•
KVA:LIMit
6.7.8.1
AC and DC Voltage Soft keys
6.7.8.2
Frequency and Phase Soft keys
Entire Contents Copyright
2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
AFX Series Power Source Operation Manual
AFX SERIES® OPERATION MANUAL
Front Panel Operation
SECTION 6:
Page 162 of 485
