6.8.5.5 USB INTERFACE SETUP Screen
The USB INTERFACE SETUP screen allows configuring the USB interface and is accessed from
the INTERFACE SETUP screen.
The following settings can be configured on this screen:
Enable Virtual Serial Port
Enable LAN
Note: Any changes made to this screen will NOT take effect until the power source has
been completely powered off and back on. (Re-boot).
The following soft keys are available from the USB INTERFACE SETUP screen:
SOFT KEY
Enable All (SK1)
Disable All (SK2)
-
-
Back (SK5)

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
AFX Series Power Source Operation Manual

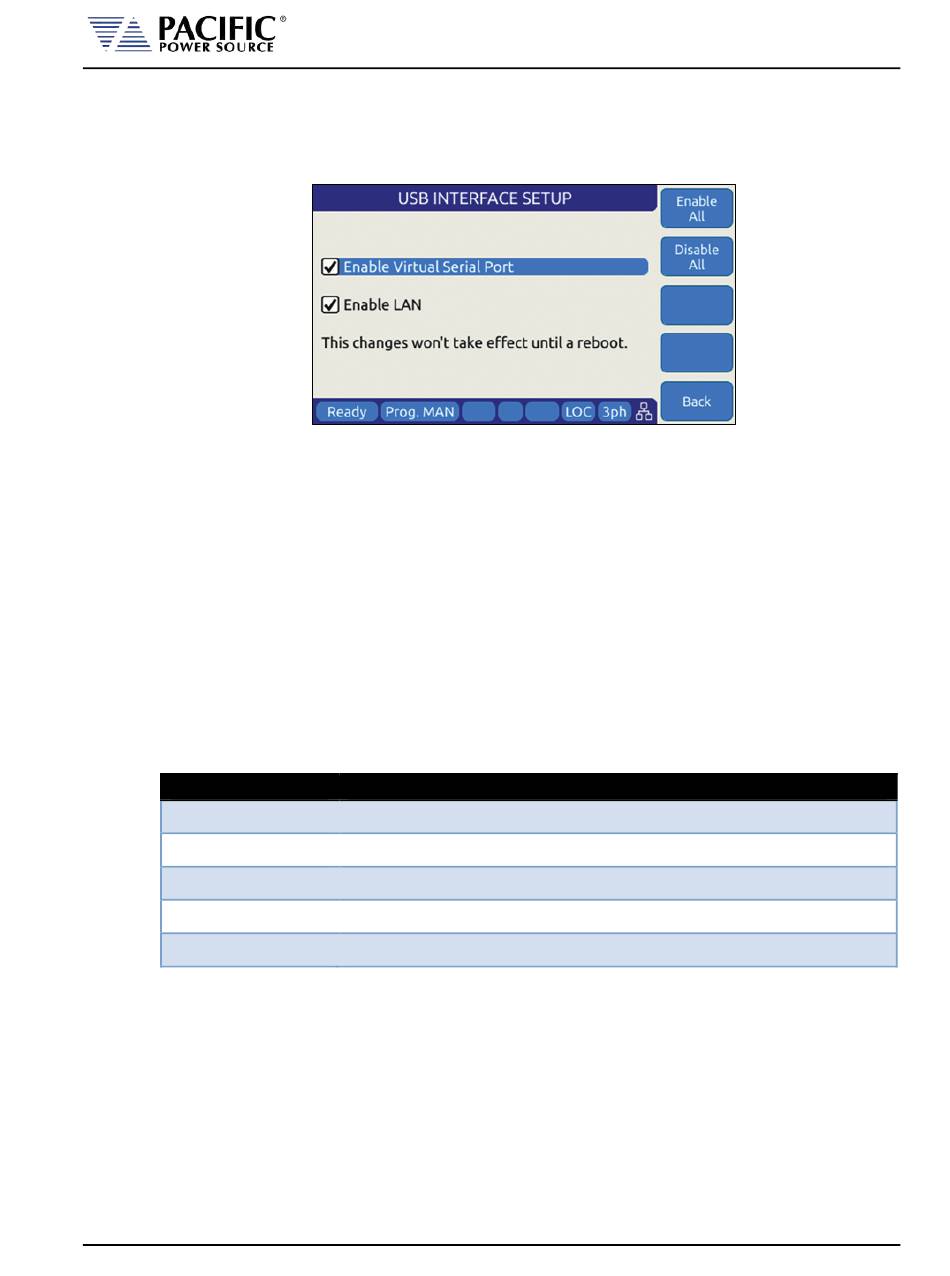

Figure 6-30: USB INTERFACE SETUP Screen
Enables or disables PC control using a virtual serial port
driver.
Enables or disables the LAN (Ethernet) Interface IP
emulation mode, which supports use of the embedded LXI
web server. The virtual IP address of the USB-LAN emulation
mode is fixed at 192.168.123.1.
Description
Set all check boxes
Clear all check boxes
Returns to the previous screen.

Table 6-32: Available USB INTERFACE SETUP screen soft keys
