Product Overview

This chapter provides an overview of the PPS AFX Series® programmable power sources. It
introduces the reader to general operating characteristics of these power supplies.

3.1 General Description

The Pacific Power Source (PPS) AFX Series® power source is designed to provide accurate,
stable and clean AC or DC power to a unit under test. The PPS AFX Series® power supply can
be operated from the front panel (manual mode) or using RS232, USB or LAN (Ethernet)
remote control.
The performance of the AFX Series® power source models are detailed in section 4,
"Technical Specifications". Maximum voltage, current and power capability depends on the
specific model. This manual covers standard AFX Series® models. Modified units are
generally shipped with a manual addendum as a supplement to this manual. The manual
addendum covers specific modifications from the standard model(s).
Model Number Decoder
All AFX Series models use a common model number scheme. The model decoder is shown in
the diagram below.
Both "L" and "AG" versions of the AFX Series are covered by this user manual. The series
designation letter is the first letter following the "-2" or "-4" input voltage designation on
the type label.
3 = Three Phase Output
60 = 6kVA/kW
90 = 9kVA/kW
120 = 12kVA/kW
150 = 15kVA/kW
T = Transformer Option
Delete for no T Option

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
AFX Series Power Source Operation Manual
3 nnn AFX T - n A G

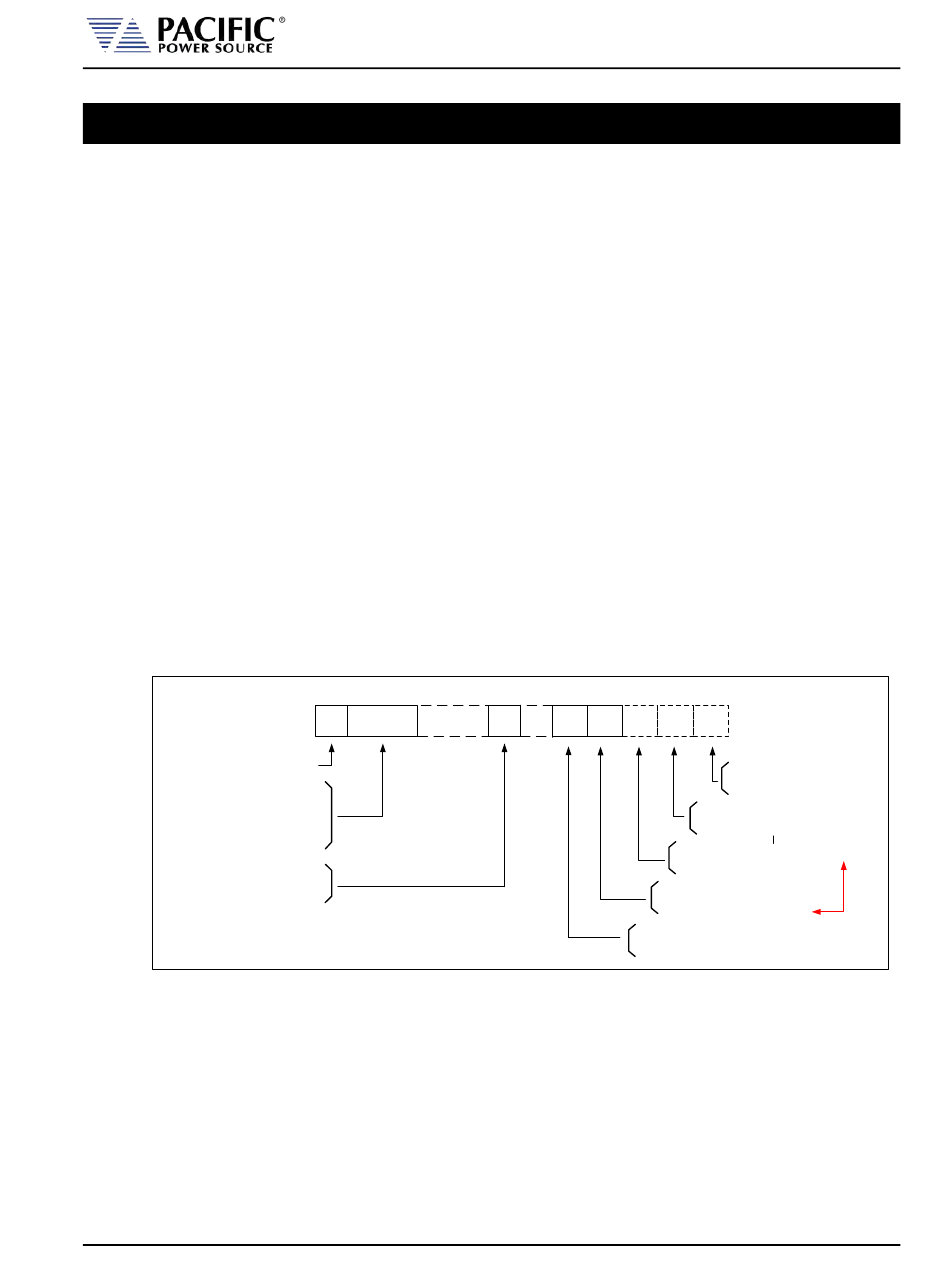

Figure 3-1: AFX Series Model Number Decoder

AFX SERIES® OPERATION MANUAL
Product Overview
SECTION 3:
O E
E = Export Version
Delete for non Export
O = OCS Option
Delete for no OCS
G = GPIB
(A version only)
L = Base Model
A = Incl. Auxiliary I/O
2 = 208-230V AC input
4 = 380-480V AC input
Page 23 of 485
