6.6.8

STEP or RAMP Parameters

Step transients can be used to create discrete stair step like voltage and/or frequency
changes or smooth ramps. The default ramp time is 0.2 msec.
Ramps can be can be programmed in three modes:
• INIDEL (0):
• FINDEL (1):
INIFIN (2):
•
Step transients can be used to step frequency, voltage AC, voltage DC, and phases.
The HOLD is ON, the last step values will be set as steady-state when the step execution
ends. Duration of each step is determined by: LENGTH = WIDTH + RAMP TIME

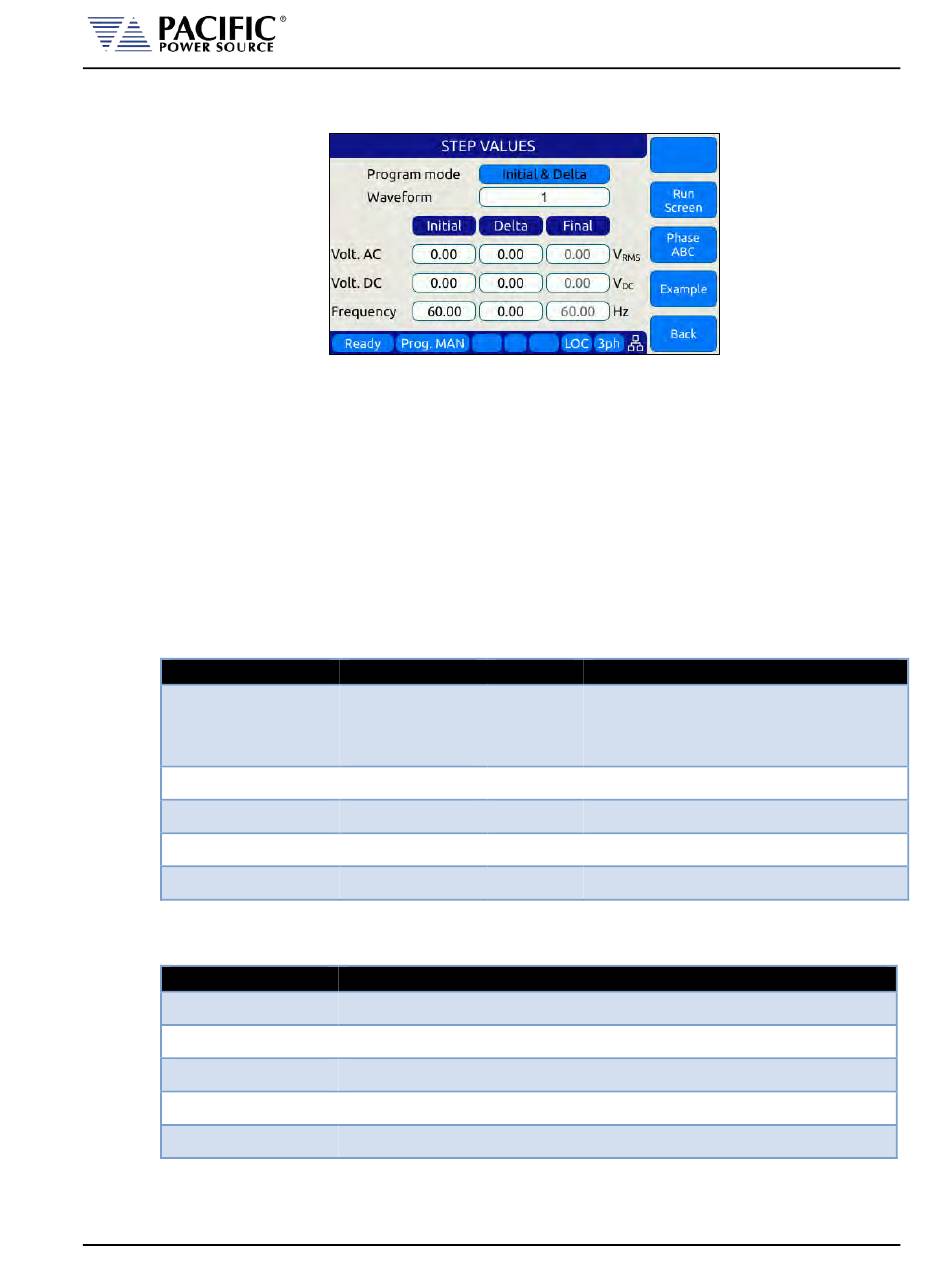

The following parameters are available in a STEP VALUES screen.
PARAMETER
Program Mode
Waveform
Voltage AC
Voltage DC
Frequency
The following soft keys are available on the STEP PROGRAM screen.
SOFT KEY
(SK1)
Run Screen(SK2)
Phase ABC (SK3)
Example (SK4)
Back (SK5)

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
AFX Series Power Source Operation Manual
Initial & Delta: Programmed by initial and delta values
Final & Delta: Programmed by final and delta values
Initial & Final: Programmed by initial and final values
Range
Initial & Delta
Final & Delta
Initial & Final
1 ~ 200
0 ~ 300
-425 ~ + 425
15 ~ 1200

Table 6-14: Available STEP Transient Parameters

Description
Displays the STEP EXECUTION screen.
Toggles between phase A, B, C or Coupled ABC
Displays a graphical representation of the STEP parameters
Returns to previous screen

Table 6-15: Available STEP PROGRAM screen soft keys

AFX SERIES® OPERATION MANUAL
SECTION 6:
Unit Description
- Program Entry Modes
Waveform number
Vrms AC Voltage
Vdc DC Voltage
Hz Frequency
Front Panel Operation
