6.6.11 PULSE Parameters

Pulse transients can be used to create repetitive events for endurance testing of AC and DC
powered products.

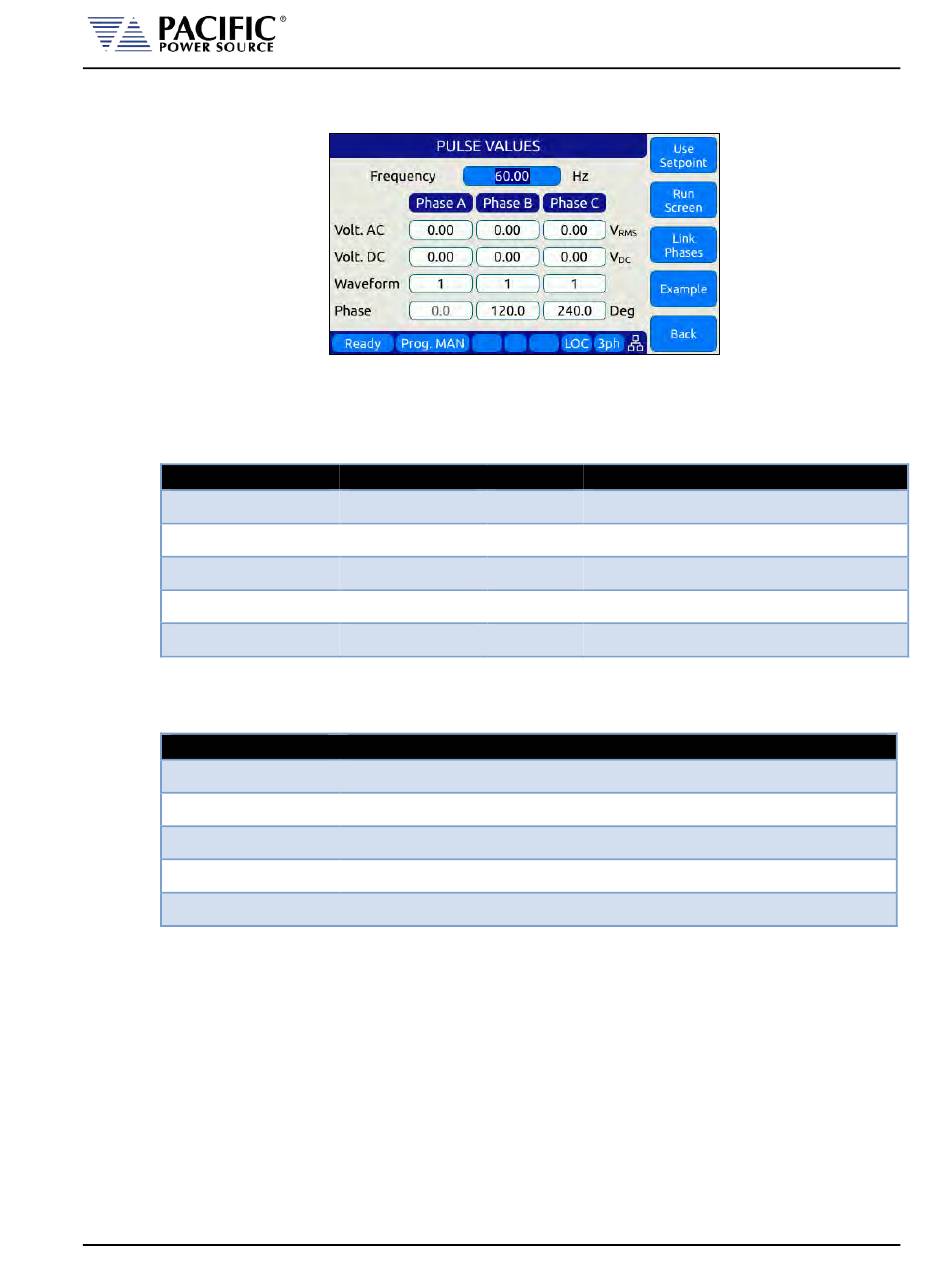

The following parameters are available in a PULSE VALUES screen.
PARAMETER
Frequency
Voltage AC
Voltage DC
Waveform
Phase
The following soft keys are available on the PULSE VALUES screen.
SOFT KEY
Use Setpoint (SK1)
Run Screen(SK2)
Link Phases (SK3)
Example (SK4)
Back (SK5)

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
AFX Series Power Source Operation Manual
Range
15 ~ 1200
0 ~ 300
-425 ~ + 425
1 ~ 200
0.0 ~ 359.9

Table 6-17: Available STEP Transient Parameters

Description
Starts the transient from the "Run from step#" row number
Displays the PULSE EXECUTION screen.
Toggles between phase A, B, C or Coupled ABC
Displays a graphical representation of the STEP parameters
Returns to previous screen

Table 6-18: Available STEP PROGRAM screen soft keys

AFX SERIES® OPERATION MANUAL
SECTION 6:
Unit Description
Hz Frequency
Vrms AC Voltage
Vdc DC Voltage
Waveform number
Deg Phase angle for phases B & C
Front Panel Operation
