Pacific Power Source AFX Series Operation Manual page 441

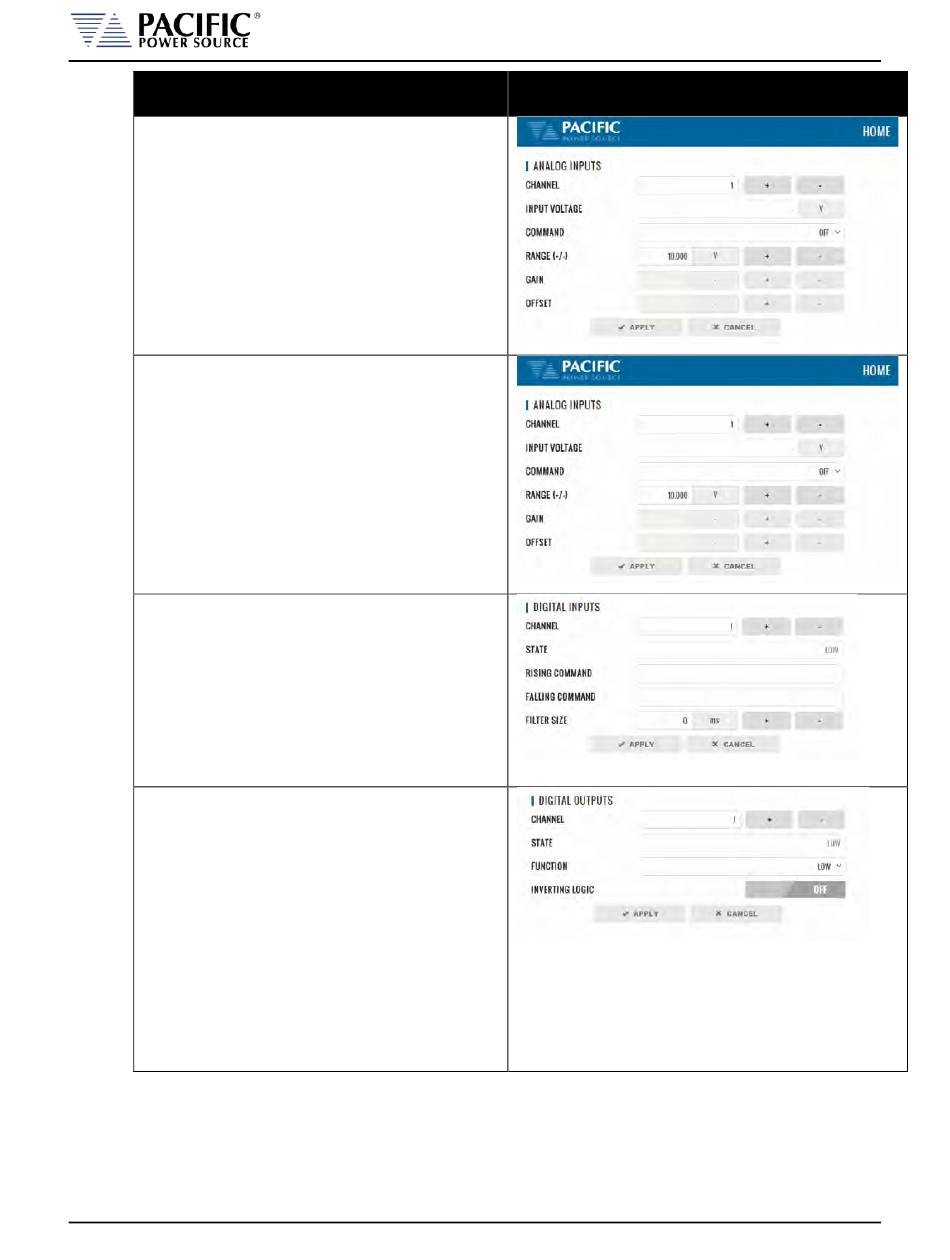

Grouping
Analog Inputs:
CHANNEL
INPUT VOLTAGE
COMMAND
RANGE
GAIN
OFFSET
Analog Outputs:
CHANNEL
OUTPUT VOLTAGE Output setting
MEASUREMENT
RANGE
GAIN
OFFSET
Digital Inputs:
CHANNEL
STATE
RISING CMD
FALLING CMD
FILTER SIZE
Digital Outputs:
CHANNEL
STATE
FUNCTION
INV. LOGIC

Entire Contents Copyright 2018 by Pacific Power Source, Inc. (PPS) • All Rights Reserved • No reproduction without written authorization from PPS.
AFX Series Power Source Operation Manual
[ 1 | 2 | 3 | 4 ]
Displays read back voltage
Select command from dropdown list
or OFF for none
0.0000 – 10.000 V
Gain
Offset value
[ 1 | 2 | 3 | 4 ]
Select measurement to be assigned
to output
0.0000 – 5.000 V
Gain 0.000 - 1000
Offset value – 1000 ~+1000
[ 1 | 2 | 3 ]
Displays input state
Set command string to execute on
rising edge
Set command string to execute on
falling edge
0 – 10,000,000 msec
[ 1 | 2 | 3 | 4 ]
Displays current state
Assigns state to selected channel.
Available states are:
FAULT
FORM
HIGH
LOW
OUTPUT STATE
PROGRAM
REMOTE
TRANSIENT
[ ON | OFF ] Reverses polarity
AFX SERIES® OPERATION MANUAL
LAN Interface Configuration
SECTION 10:
Controls
Page 441 of 485
