2.2

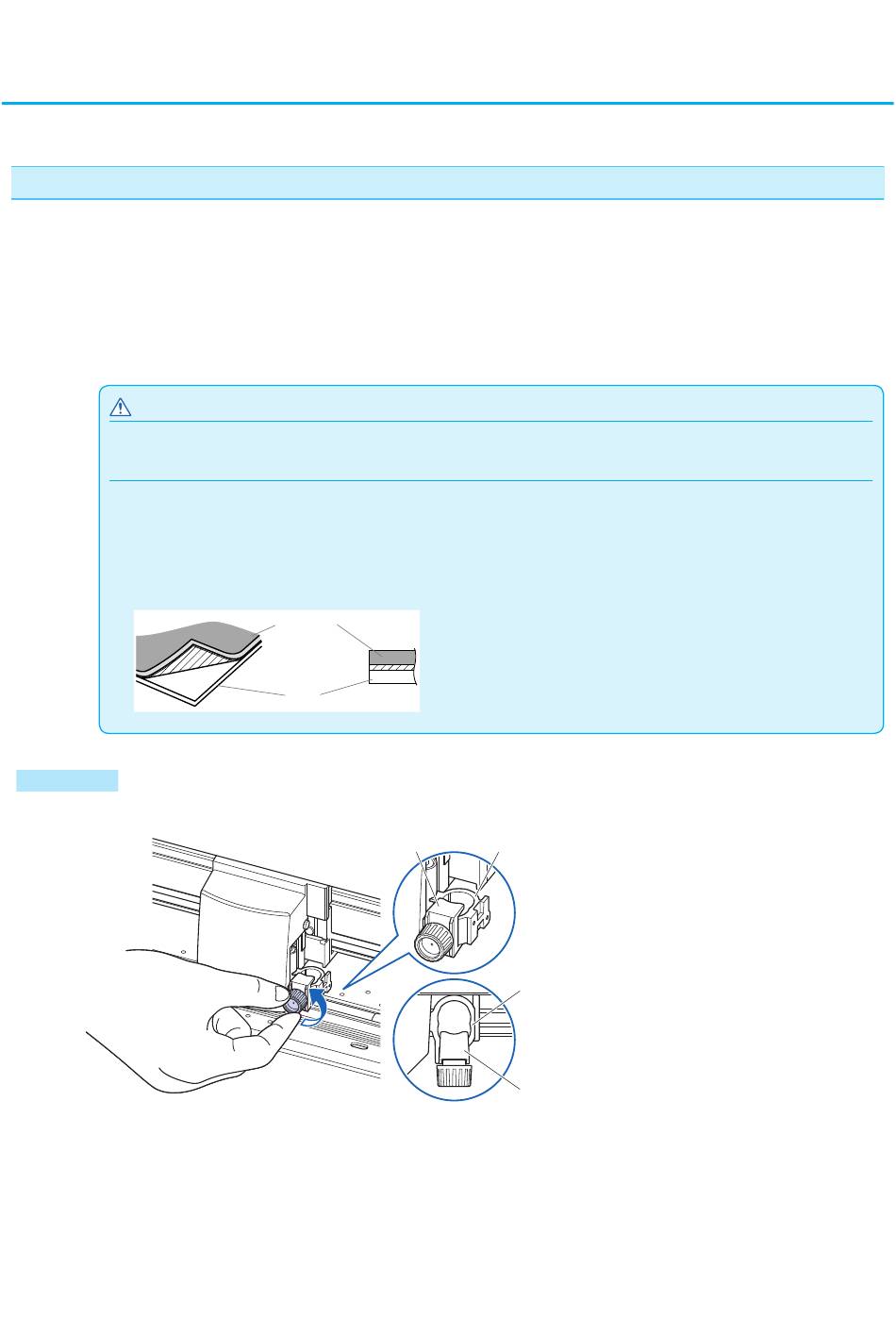

Attaching a Tool

Attach a tool (cutter plunger, plotter pen) to the plotter.
Attaching a tool
When mounting the tool in the tool holder, please note the following.
•
Push the tool all the way into the holder until its flange contacts the upper part of the holder and then tighten
•
the screw firmly.
To prevent injury, avoid absolutely touching the tool immediately after the cutting plotter is turned on or
whenever the tool is moving.
It is explained here using cutter plunger as an example.
CAUTION
When pushing the tool holder with your fingers, the blade tip may be protruding. Take care not to cut your fingers.
Supplement
•
When using with half cutting and plotter pen, set the seal in Tool Holder (backward), and when using cutting out (perforated
cut), set the seal in Tool Holder (forward).
•
Half cutting means that only the marking film is cut out, leaving the backing sheet uncut.
•
Cutting out means that the media is cut out completely.
•
Structure of Marking film
Mounting
1
Loosen the tool holder screw.
Marking film
Backing
sheet
Bracket to hold tool
Top
2-5
Tool holder
Tool holder
Bracket to hold tool
