6.1

Outline of Manual Position Adjust

With manual position adjust, tilt of the axes are adjusted using the 2POINTS, 3POINTS, or 4POINTS adjustment
marks (grits or registration marks) as a standard. The distance between each point can also be entered to adjust
the distance.
Move the tip of each tool to the appropriate point.
Use the media with prints (adjustment marks such as grits or registration marks) necessary to get XY axes and
origin point.

Setting mark scan mode and number of adjustment marks

To perform the AXIS ALIGNMENT, set the MARK SCAN MODE to "AXIS ALIGNMENT".
Select the number of the registration marks (adjustment marks) from 2POINTS, 3POINTS, or 4POINTS when the
MARK SCAN MODE is set to "AXIS ALIGNMENT". Position of each adjustment marks are as following.

Adjust with 2POINTS

2POINTS adjustment will scan 2 registration marks aligned in the media transportation direction, where the
adjustment is done measuring the tilting of the axis and the distance between the registration marks. This
adjustment is 1-axis adjustment (tilt adjustment).

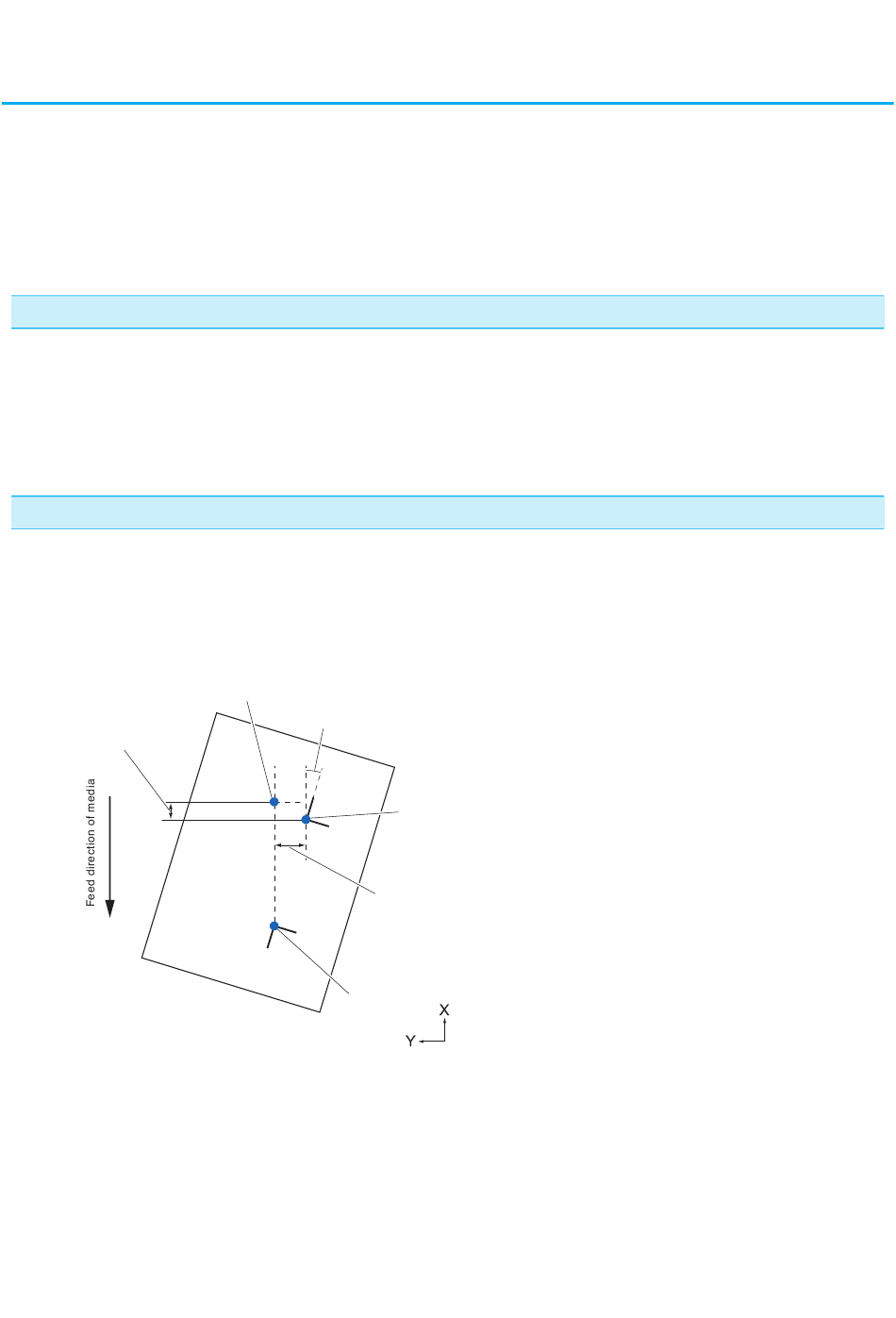

If the loaded media is tilted as shown below, position of the scanned registration mark is shifted from the position
where it should be. Tilt and distance can be adjusted by comparing these coordinate values.
Difference in X
Original registration mark position
Tilt
Difference in Y
First registration mark
Second registration mark
6-2
