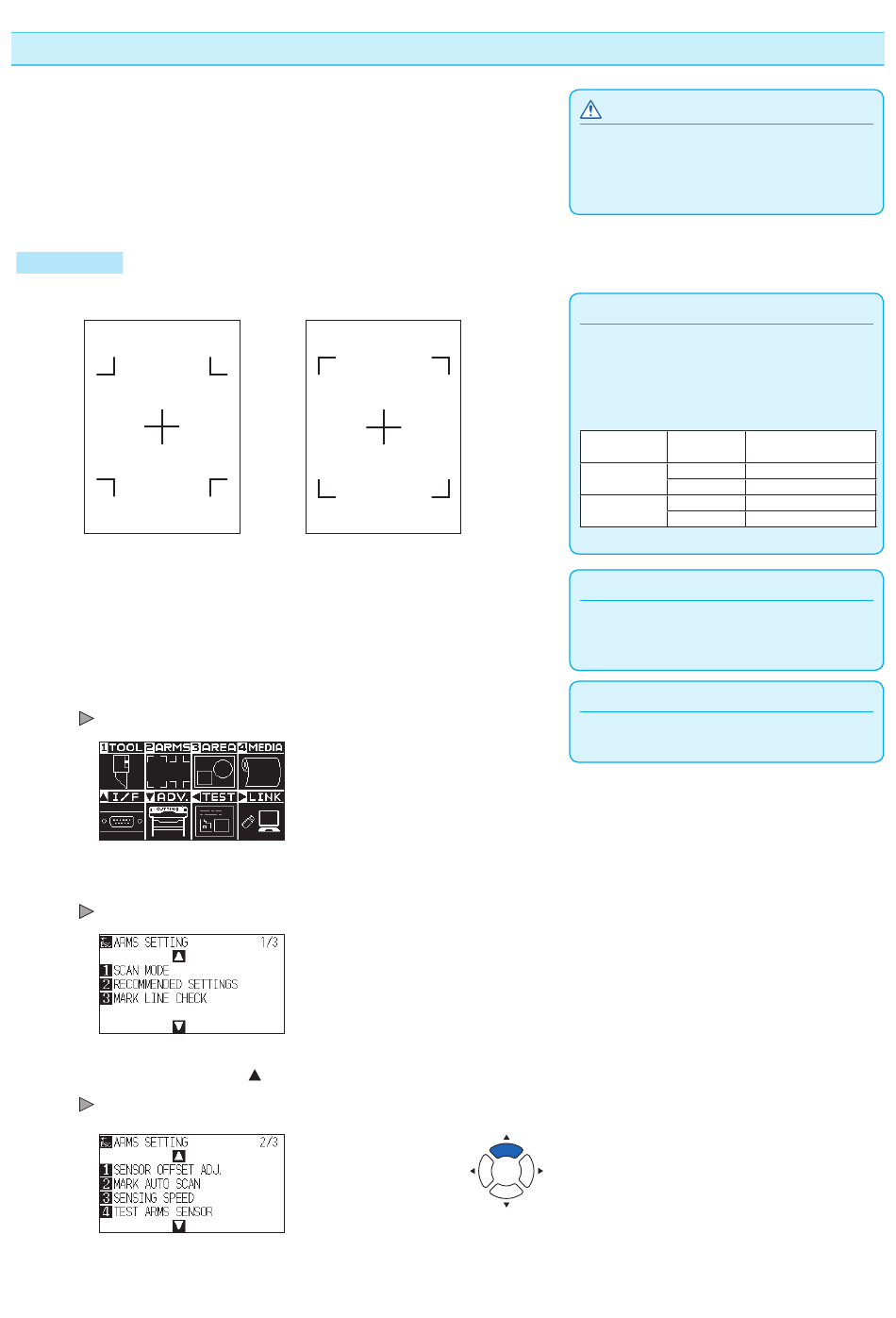

Test the registration mark sensor

If there still is a difference in the cutting, even after performing an
adjustment using the registration mark, it is possible to check if there
is a problem with the registration mark itself or the application by
evaluating the position of the registration mark plotted and detected
only using the plotter.
Operation
1
Print the standard registration mark in the supplied DVD.
MARK TYPE 1
2
Load the printed media onto the plotter.
3
Press the [PAUSE/MENU] key.
MENU screen is displayed.
4
Press the [2] key (ARMS).
ARMS SETTING screen (1/3) is displayed.
5
Press the POSITION ( ) key.
ARMS SETTING screen (2/3) is displayed.
MARK TYPE 2
5-14
CAUTION
This function performs cutting after the
registration mark is scanned. If a cutter is used
as the tool, it may harm the plotter.
Supplement
•
Print the "Test Pattern 1" to test MARK TYPE
1, and "Test Pattern 2" to test MARK TYPE 2.
•
Standard registration mark is inside the
"ARMS Test Files" folder of the supplied DVD.
Registration
File Format File Name
Mark Patern
pdf
MARK TYPE 1
eps
pdf
MARK TYPE 2
eps
Supplement
See "Loading Media (Paper or Marking Film)"
for loading the media.
Supplement
Perform the settings in Normal mode.
ARMStest_type1.pdf
ARMStest_type1.eps
ARMStest_type2.pdf
ARMStest_type2.eps
