2.7

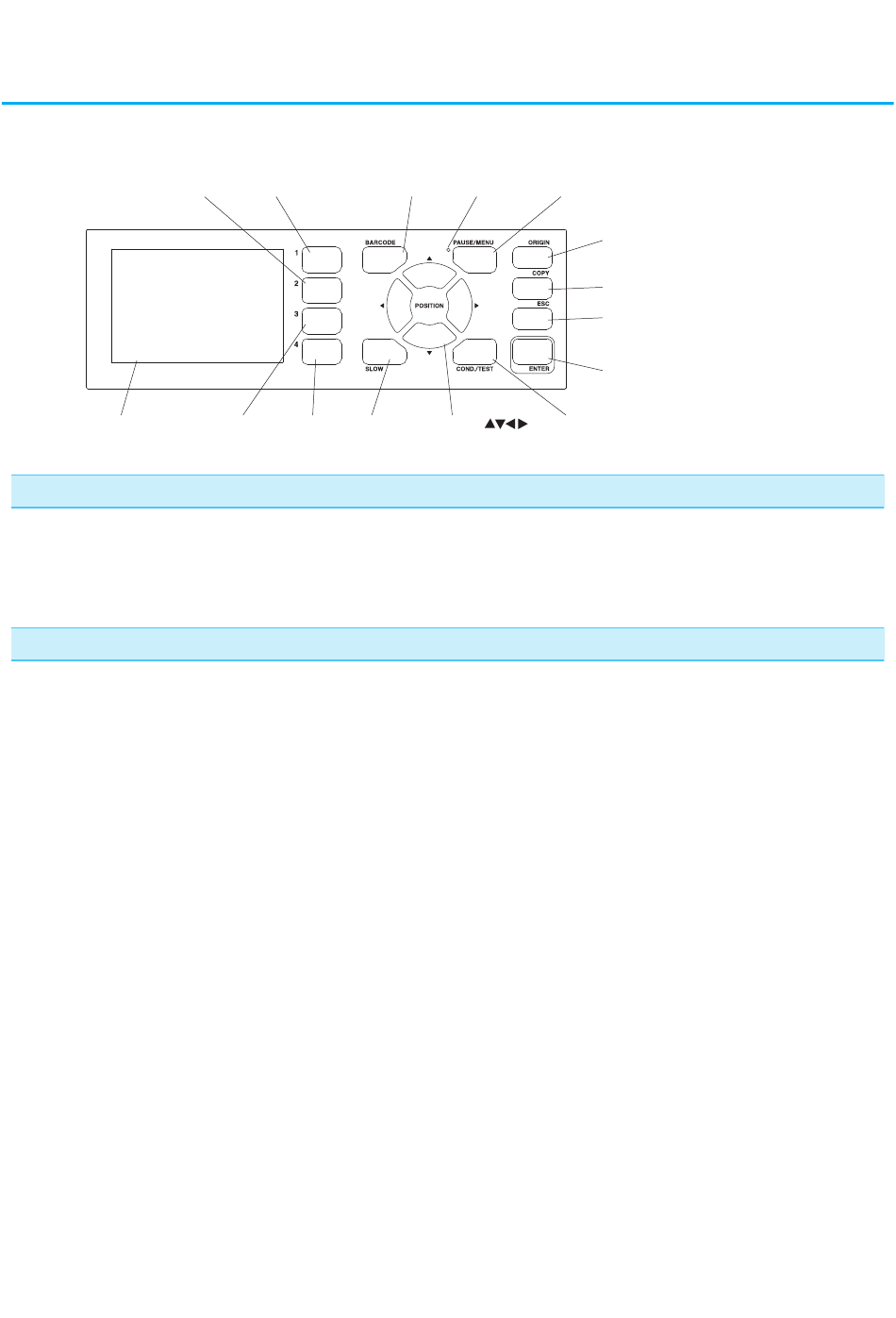

How to Use Control Panel

This section explains the function of lamps and keys on the control panel.
Screen (LCD)

Indicator lamp

PAUSE/MENU lamp
............................ When in MENU mode, the lamp lights up.

Operation key

BARCODE .................. The continuous operation of data link is started.
PAUSE/MENU ............ Switches to the MENU mode.
ORIGIN ....................... It will set the current position as an origin point.
COPY ......................... Copy of data in the buffer memory is output.
ESC ............................ Cancels the setting change and then returns to the previous screen. Returns to the
ENTER ....................... Saves the settings, and then returns to the setting screen in various function or
COND/TEST ............... Displays the screen to set the tool conditions.
[2] key [1] key
[3] key [4] key SLOW key
It will go into MENU mode if it is pressed once, and MENU mode will be turned off when
it is pressed again.
Different function are set in the MENU mode.
When the PAUSE/MENU key is pressed during the operation, the cutting/plotting
operation stops.
On the READY screen, pressing the [ENTER] and [ORIGIN] keys at the same time will
allow you to reset the machine. (Only in Normal mode)
previous screen in the MENU screen.
CONDITION setting screen of the MENU screen.
On the READY screen, pressing the [ENTER] and [ORIGIN] keys at the same time will
allow you to reset this machine.
Use this when checking tool conditions to activate a cutting test.
BARCODE PAUSE/MENU
key lamp
POSITION key
2-31
PAUSE/MENU
key
ORIGIN key
COPY key
ESC key
ENTER key
COND./TEST key
