2.10

Selecting Tool Condition

Set the "TOOL CONDITION (CUT CONDITION) No.", "TOOL", "OFFSET", "SPEED", "FORCE", and "ACCEL
(ACCELERATION)".
In Simple mode, you can switch to the settings for each of the five preset media types.
Normal mode can remember up to 8 settings.
Changing these settings allows you to make the proper settings for each different type of media.
In [Simple mode / Normal mode] on the ADVANCE (ADV.) menu, switch between Simple mode and Normal mode.
When switching the mode, this cutting plotter will be reset.
Selecting the TOOL CONDITION number (Conditon No.)

Simple mode

Operation
1
Press the [COND/TEST] key in the READY status.

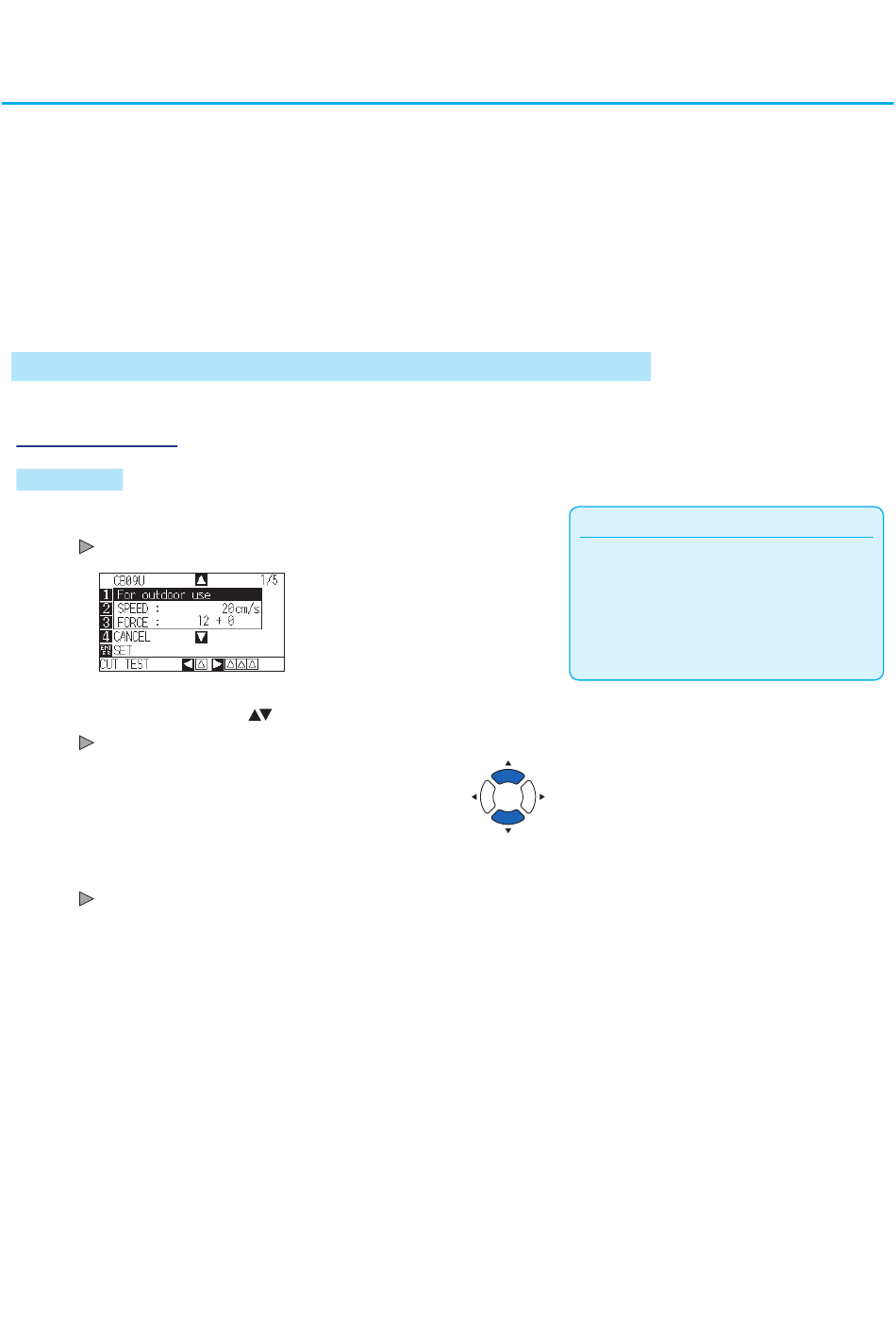

CONDITION setting screen (1/5) is displayed.
2
Press the POSITION (
Select previously registered media types (tool conditions).
3
Confirm the setting and press the [ENTER] key (SET).
Setting will be set, and it will return to default screen.
) key and select the setting.
2-40
Supplement
•
Use Normal mode for changing the type of
blade, offset, and acceleration.
•
Pushing the [4] key (RETURN) allows you
to return to the conditions screen without
changing the settings.
