Setting the Offset Angle

The CE7000 analyzes the cutting data, and controls the angle of the cutter blade tip if the change in the angles of
the corner is large.
Angle control is applied if there is larger angle change than the angle specified as reference angle.
The time to cut is shortened by setting large value for the reference angle, since it will only apply blade control
when there are angles with large angle change, hence reducing the time to make the blade control.
But, if it is set too large, there will be not enough angle control of the blade, and the cut result may differ from what
was expected. Set the reference angle in good balance.
Supplement
The setting will be saved even if the power is shut off.

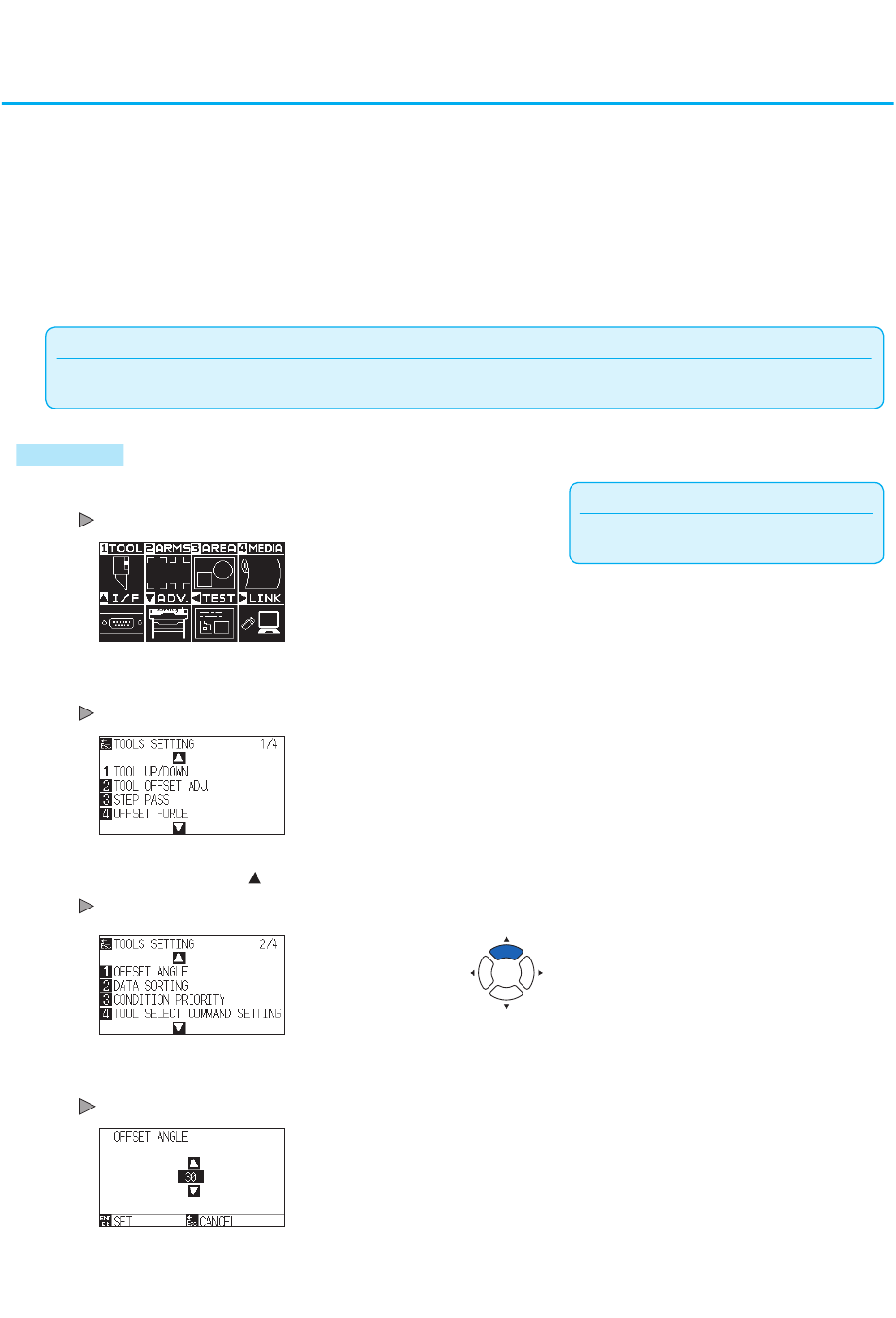

Operation
1
Press the [PAUSE/MENU] key.
MENU screen is displayed.
2
Press the [1] key (TOOL).
TOOLS SETTING screen (1/4) is displayed.
3
Press the POSITION ( ) key.
TOOLS SETTING screen (2/4) is displayed.
4
Press the [1] key (OFFSET ANGLE).
OFFSET ANGLE screen is displayed.
Supplement
Perform the settings in Normal mode.
