GRAPHTEC CE7000 Series User Manual page 270

When using Graphtec Pro Studio
1

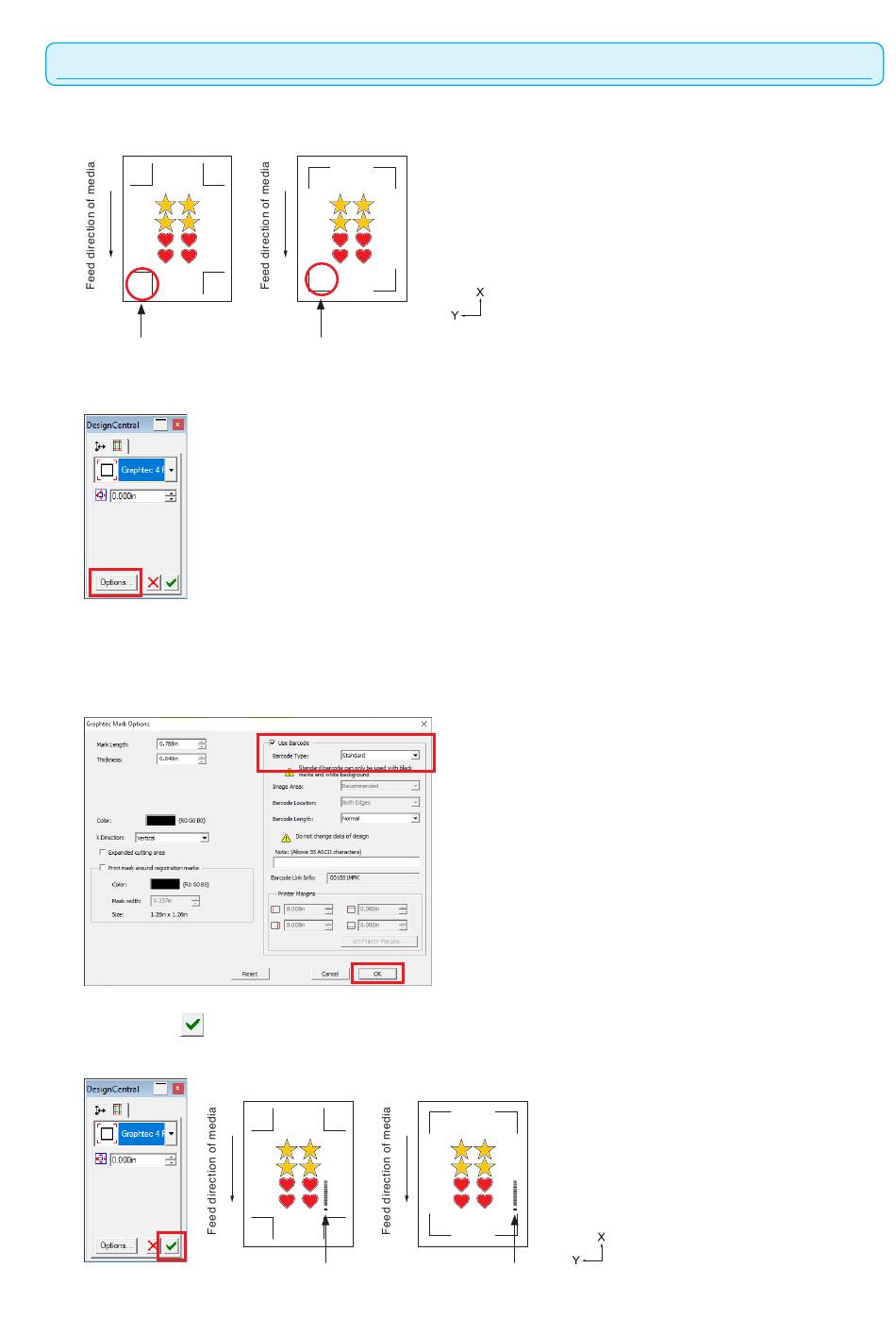

Click on the registration mark on the design screen.
MARK TYPE 1
Registration mark
2
Press the "Options" on the "DesignCentral" screen.
3
The "Graphtec Mark Options" screen is displayed.
Check the "Use Barcode" and select the "Standard" from
the "Barcode Type". Press the "OK".
4
Press the on the "DesignCentral" screen.
Bar code is created on the design screen.
MARK TYPE 2
Registration mark
MARK TYPE 1
Bar code
MARK TYPE 2
Bar code
