Setting and Adjustment of ARMS

This section describes the necessary adjustment and settings to correctly scan the registration mark with ARMS.
•

Set the MARK SCAN Mode

•
Checking the recommended setting of registration mark
•
Check the lines of registration mark
•
Test the registration mark sensor
•
Adjust for the registration mark scan position
•
Adjust after plotting the adjustment registration mark
•
Detect the registration mark for adjustment on the media and enter the value
•
Set the registration mark automatic detection
•
Set speed of the registration mark scan
Set the MARK SCAN Mode
Select the SCAN Mode of the sensor to scan the registration marks. Select according to the media condition.
Mode 1: Select when using a general medium of white background.
Mode 2: Select when using colored media or glossy media.
Mode 3:Select when the plotter cannot scan in Mode 1 or Mode 2 with a special material.
Use the "RECOMMENDED SETTINGS" function to checkthe guideline for selecting a SCAN Mode.
In addition, set the registration mark adjustment value as necessary. Set the registration mark adjustment value
with "+" or "-".
For Mode 1, judgment is made based on the density of the registration mark. Please set "+" for dark registration
marks and "-" for pale registration marks.
For Mode 2 and Mode 3, judgment is made based on the contrast between the background and the register mark.
Set it to "+" when the contrast is large, and "-" when it is small.
Operation
1

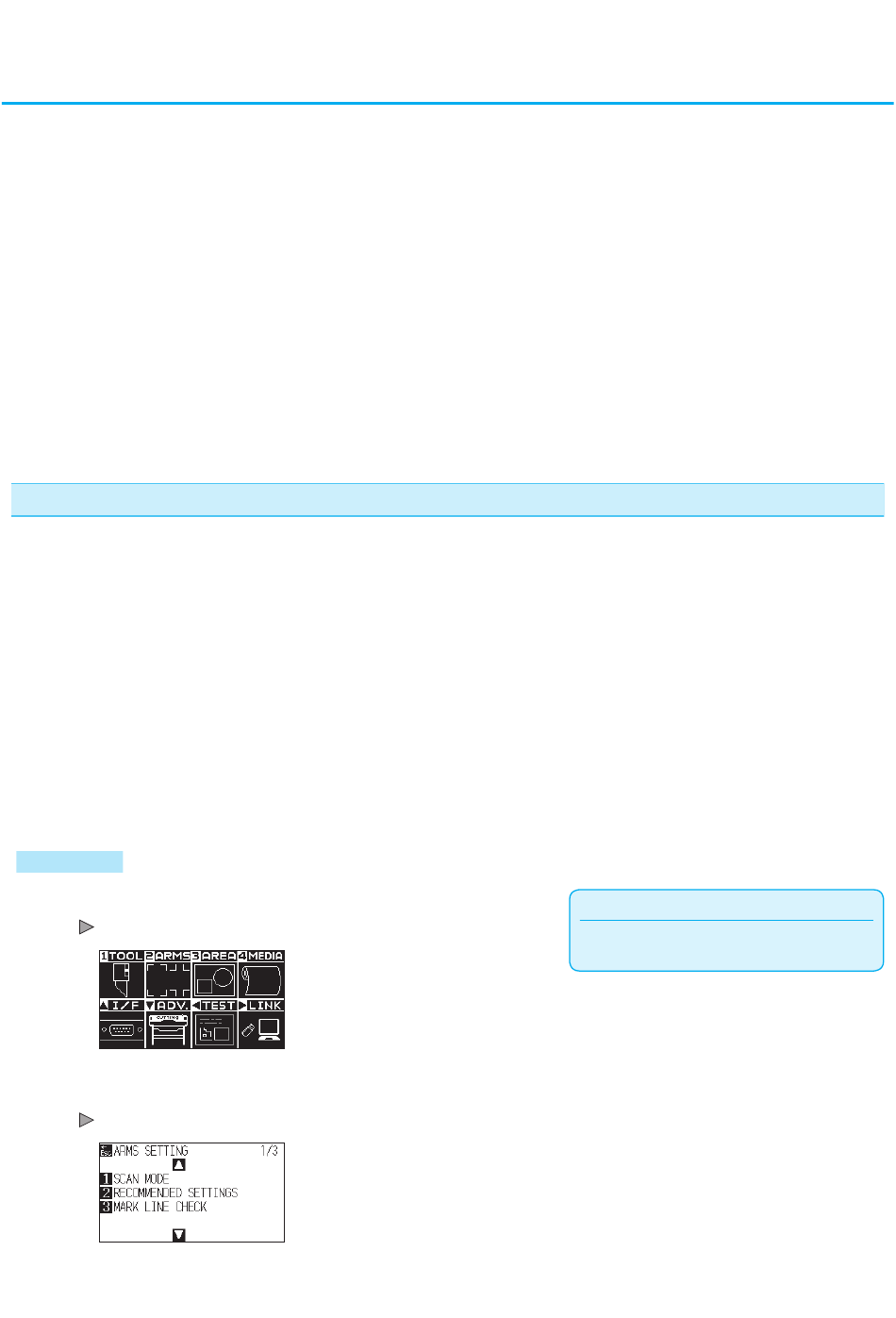

Press the [PAUSE/MENU] key.
MENU screen is displayed.
2
Press the [2] key (ARMS).
ARMS SETTING screen (1/3) is displayed.
Supplement
Perform the settings in Normal mode.
