2.4

Aligning the Push Rollers

This section describes how to alignment of the push rollers.

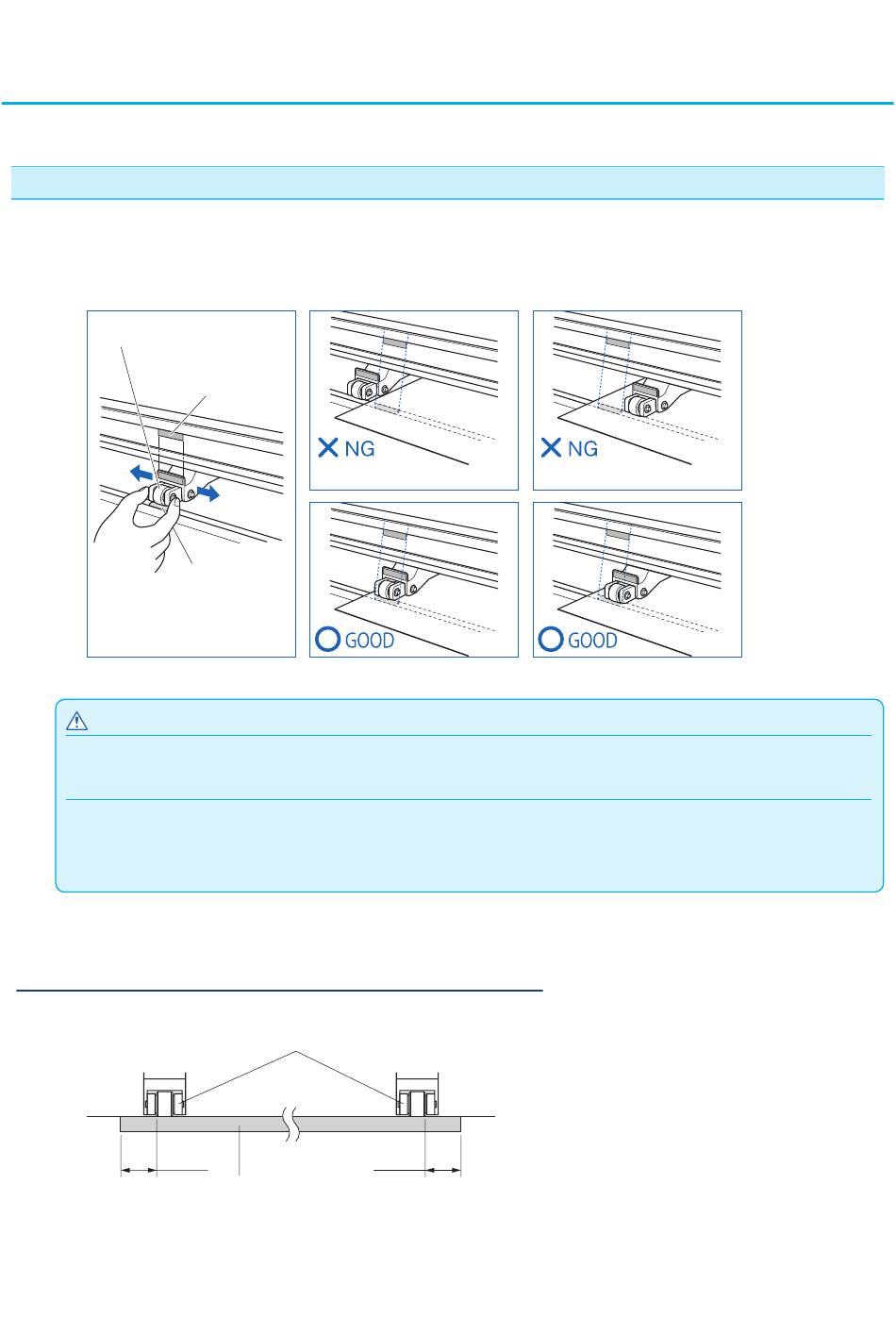

Aligning the push roller

Position the left and right push rollers to correspond with the width of the media. Adjust the push rollers so that
they are positioned above both the media and the grit rollers.
Positioning the push rollers within the grit roller position guides ensures that they are above the grit rollers.
Push roller
Grit roller position guide
Grit roller
CAUTION
To move the push rollers, the media set lever must be in the lowered position.
Supplement
If a [confirming push roller point] message appears after setting the media and raising the media set lever, it means the right push
roller is not on the right grit roller, or that the left or center push roller is not on the proper grit roller. Make sure everything is set
correctly.

When feeding long media (2 meters or more)

Position the push rollers at least 15 mm inside the edges of the media.
15 mm
(It isn't on the grit roller.)
Push roller
15 mm
Media
(It isn't on the grit roller.)
2-25
