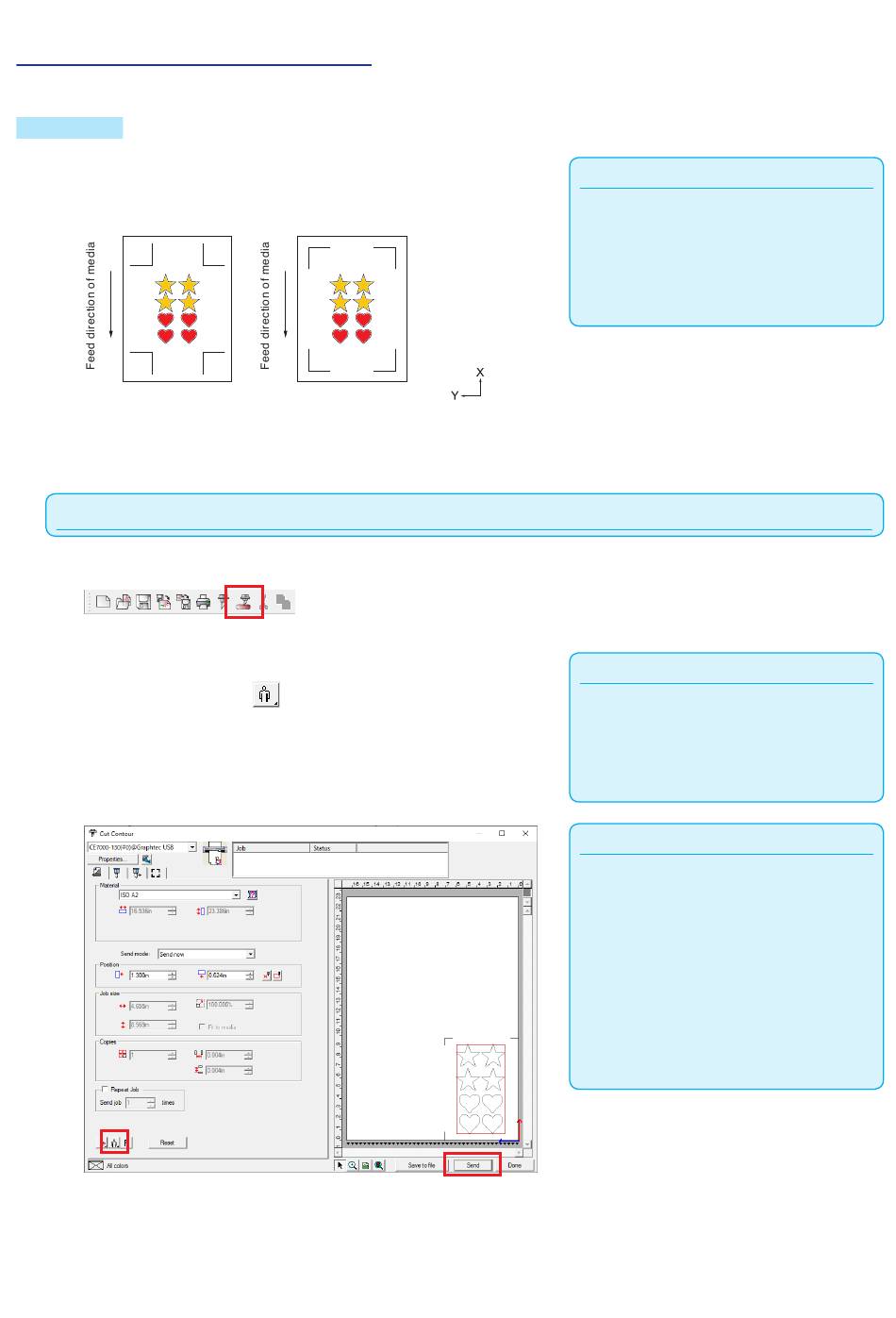

Step 4: Cut the printed media.
Cut the media prepared in Step 3 with the cutting plotter.
Operation
4-
1 Load the printed media on the cutting plotter.
MARK TYPE 1
4-
2 Send the cutting data to the cutting plotter.
When using Graphtec Pro Studio
1
Click on the "Cut Contour" icon.
2
The "Cut Contour" screen is displayed.
Set the ROTATE to
the media.
Press the "Send".
MARK TYPE 2
to match the setting direction of
13-7
Supplement
•
For loading media, see "Loading Media (Paper
or Marking Film)".
•
If a registration mark scanning error occurs,
check the registration marks etc. (See
"ARMS".)
Supplement
The ROTATE can be set only when using
4POINTS.
For other registration marks, load the media
according to the orientation of the preview.
Supplement
When the "Cut Contour" screen is displayed
for the first time, the "Add Device" screen is
displayed. Follow the instructions on the screen
to select the model name to use.
•
For USB connection, select the "Graphtec
USB".
•
For network connection, select the "TCP/IP"
and then enter the IP address of the cutting
plotter.
