Confirm the position of tool and press the [ENTER] key (SET).
7

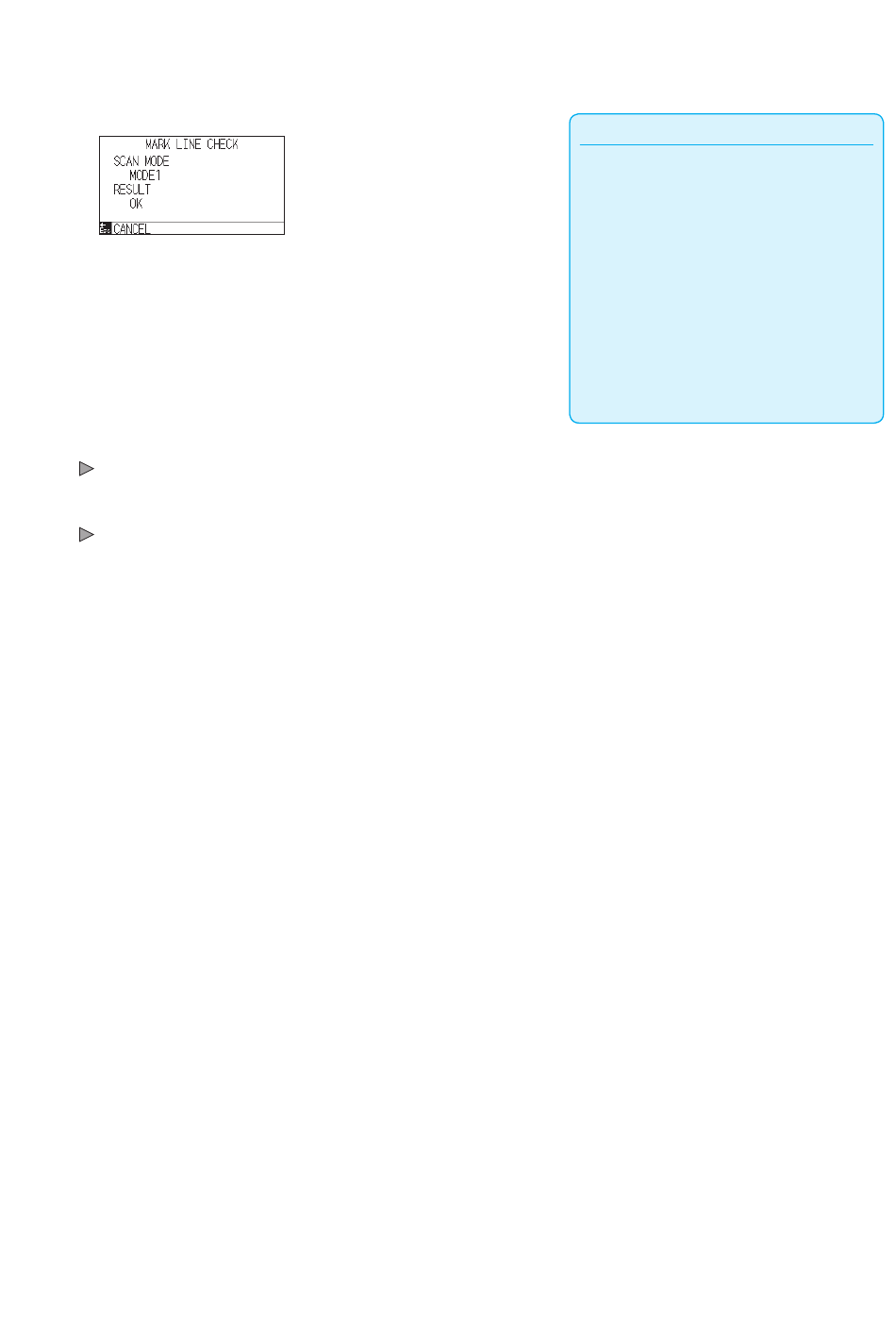

The scanning result is displayed on the screen.
SCAN MODE:
The currently set scanning mode is displayed.
RESULT:
The scanning result (Good / Bad) is displayed.
8
Confirm the setting and press the [ESC] key (CANCEL).
It will return to ARMS SETTING screen (1/3).
9
Press the [PAUSE/MENU] key.
It will return to default screen.
Supplement
In the case of "not good", check the following.
•
Check if the registration mark type is correct.
•
Check if the SCAN Mode and adjustment
value are correct.
•
Check the recommended value setting again.
•
Make the registration mark line thicker.
•
Check the above-mentioned "Media That
Registration Mark Cannot be Detected".
Even if the above is done, if it is "not good", the
registration mark cannot be used.
