Rear View : Ce7000-60 - GRAPHTEC CE7000 Series User Manual

Media stopper .........................This stops the stock shaft from spinning when setting in media. It is utilized
Netrwork (LAN) Interface connector
.........................Used to connect this plotter with a network (LAN) I/F.
USB memory dedicated connector
.........................USB memory dedicated connector.

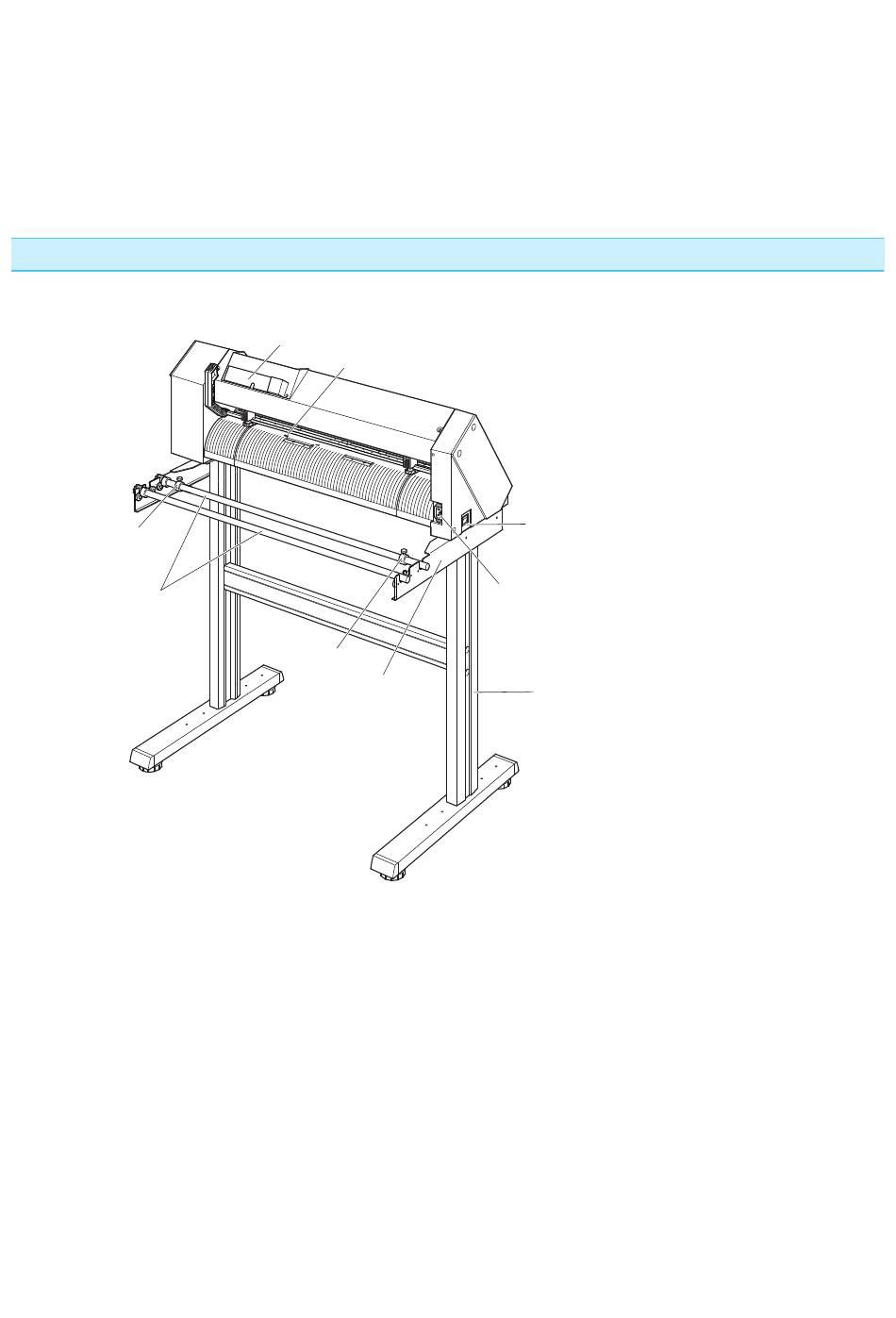

Rear view : CE7000-60

Stopper
Stock shaft
Power switch ...........................Used to turn the plotter on and off.
AC line inlet ............................. Inlet where the power cable is connected.
Media stocker ..........................A stock to set roll media in.
Stock shaft ..............................A roller that takes in roll media.
Stopper ....................................Keeps set roll media in place.
Stand ........................................A stand to put the machine on.
Accessory case ......................Space for temporary storage of accessories such as cutter blades and cutter
when pulling roll media straight out.
Accessory case
Media sensors
Stopper
Media stocker
plungers.
Power switch
AC line inlet
Stand
1-7
