Front View : Ce7000-60 - GRAPHTEC CE7000 Series User Manual

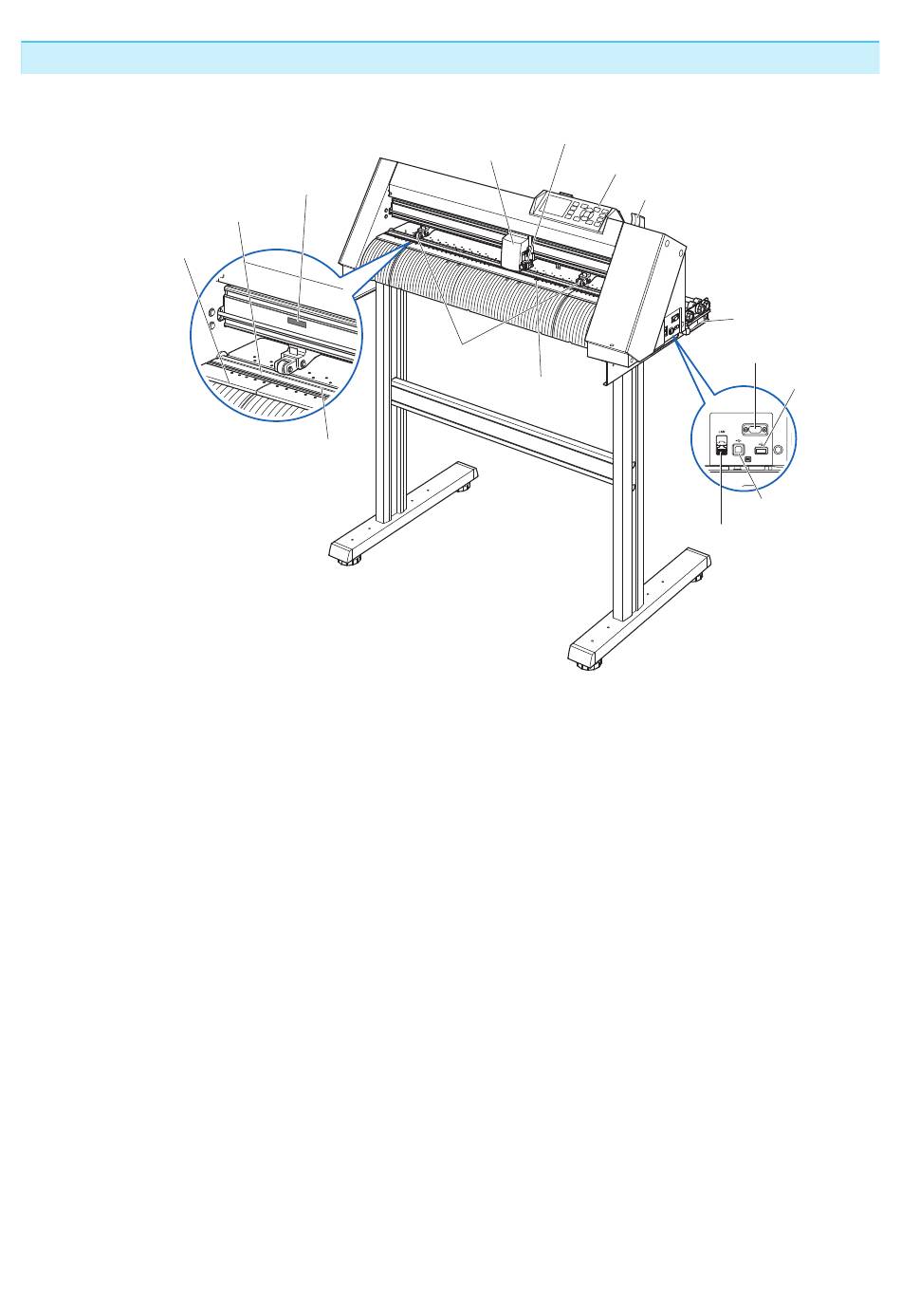

Front view : CE7000-60

Cutting mat
Cutting groove
Control panel ...........................Used to access various plotter functions.
Push rollers .............................Rollers that push the media against the grit rollers.
Grit rollers ...............................Feeds the media back and forth.
Media sensors ........................The front sensor is used to sense the leading edge of the media. The rear
Tool carriage ...........................Moves the cutter-pen or plotting pen across the media during cutting or
Tool holder ..............................Holds the cutter-pen or plotting pen and moves it up or down.
Grit roller position guide .......A roller position guide is affixed to the front side of the rail, which shows the
Cutting mat .............................The cutter blade moves on this cutting mat.
Cutting groove ........................Use this groove to cut out (die cut) or cross cut.
Media set lever .......................Used to raise or lower the Push rollers during the loading or unloading of
USB interface connector .......Used to connect the plotter to the computer with a USB interface cable.
RS-232C interface connector
.........................Used to connect the plotter to the computer with a RS-232C interface cable.
Grit roller position guide
Grit rollers
sensor is used to sense the trailing edge of the media.
plotting.
position of each grit roller. Use these alignment marks as an aid in locating the
Push rollers.
media.
It depends on the sales area. For details, please contact the distributor where
you purchased.
Tool holder
Tool carriage
Push rollers
Media sensors
1-6
Control panel
Media set lever
Media stopper
RS-232C interface connector
USB memory dedicated
connector
USB interface connector
Netrwork (LAN) Interface
connector
