6

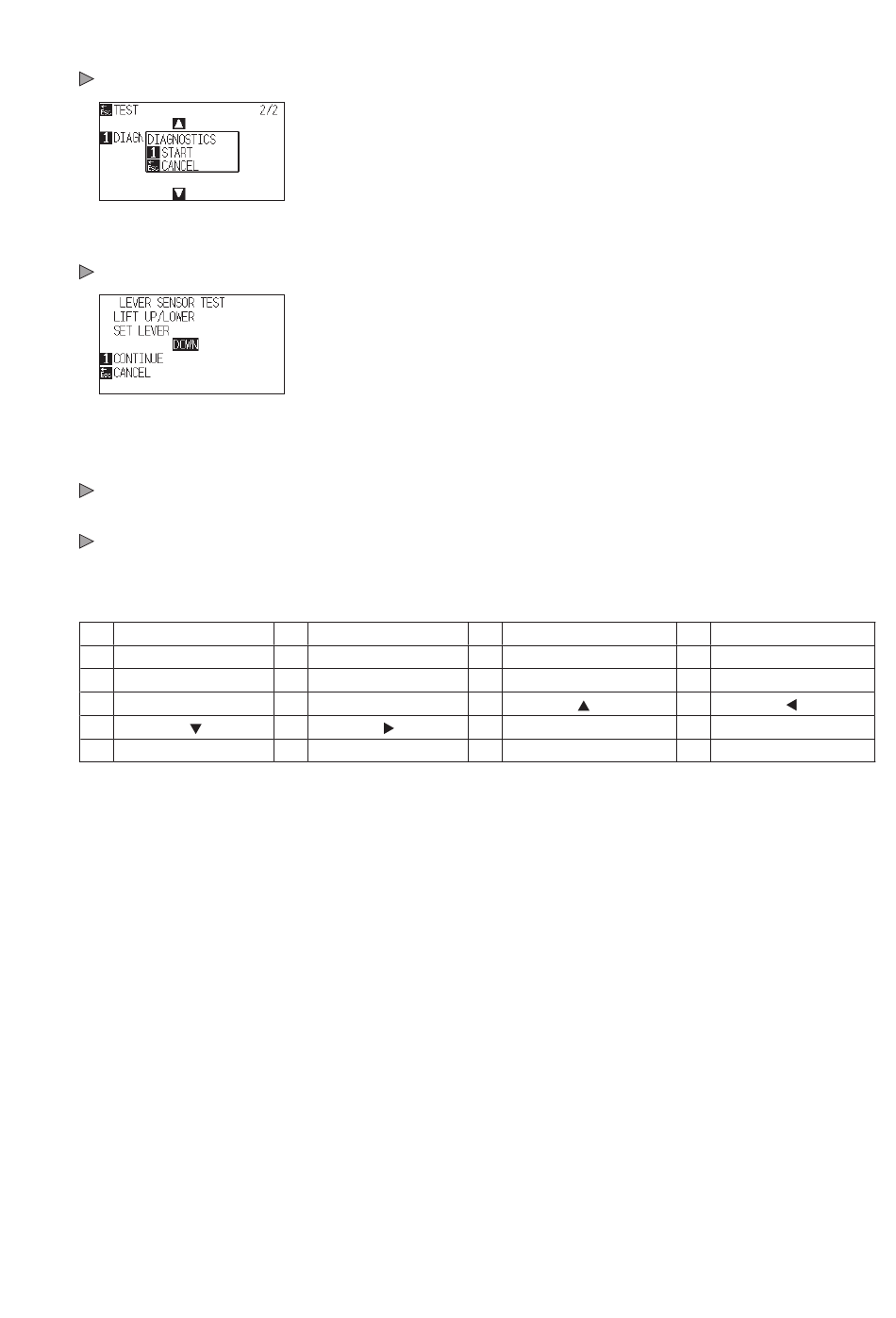

Press the [1] key (DIAGNOSTICS).
DIAGNOSTICS start screen is displayed.
7
Press the [1] key (START).
Messages for testing are displayed on the screen.
8
Operate the keys and the sensors following the instructions
on the screen.
"OK" will be displayed if the operation is detected correctly, and next test
will start.
It will return to TEST screen once all the test items are completed.
Test items are as following. (It may be changed.)
1 Set lever sensor
5 +X media sensor
9 [1] key
13 [BARCODE] key
17 POSITION [ ] key
21 [ORIGIN] key
2 Home sensor
6 X motor signal
10 [2] key
14 [SLOW] key
18 POSITION [ ] key
22 [COPY] key
15-25
3 Push roller sensor
7 Y motor signal
11 [3] key
15 POSITION [ ] key
19 [PAUSE/MENU] key
23 [ESC] key
4 -X media sensor
8 Tool height signal
12 [4] key
16 POSITION [ ] key
20 [COND/TEST] key
24 [ENTER] key
