7.4

Setting the Distance Adjust

DISTANCE ADJUST value corrects any deviation in the length of cut or plotted line segments, which occurs
depending on the media being used. DISTANCE ADJUST value for the deviation is specified as a percentage of
the total distance. For example, a setting of +0.05% adjusts a distance of 2 m (2,000 mm) by 2,000 x 0.05% = 1
mm, making 2,001 mm. DISTANCE ADJUST can be specified for each CONDITION No.
Supplement
This setting will be saved even if the power is shut off.

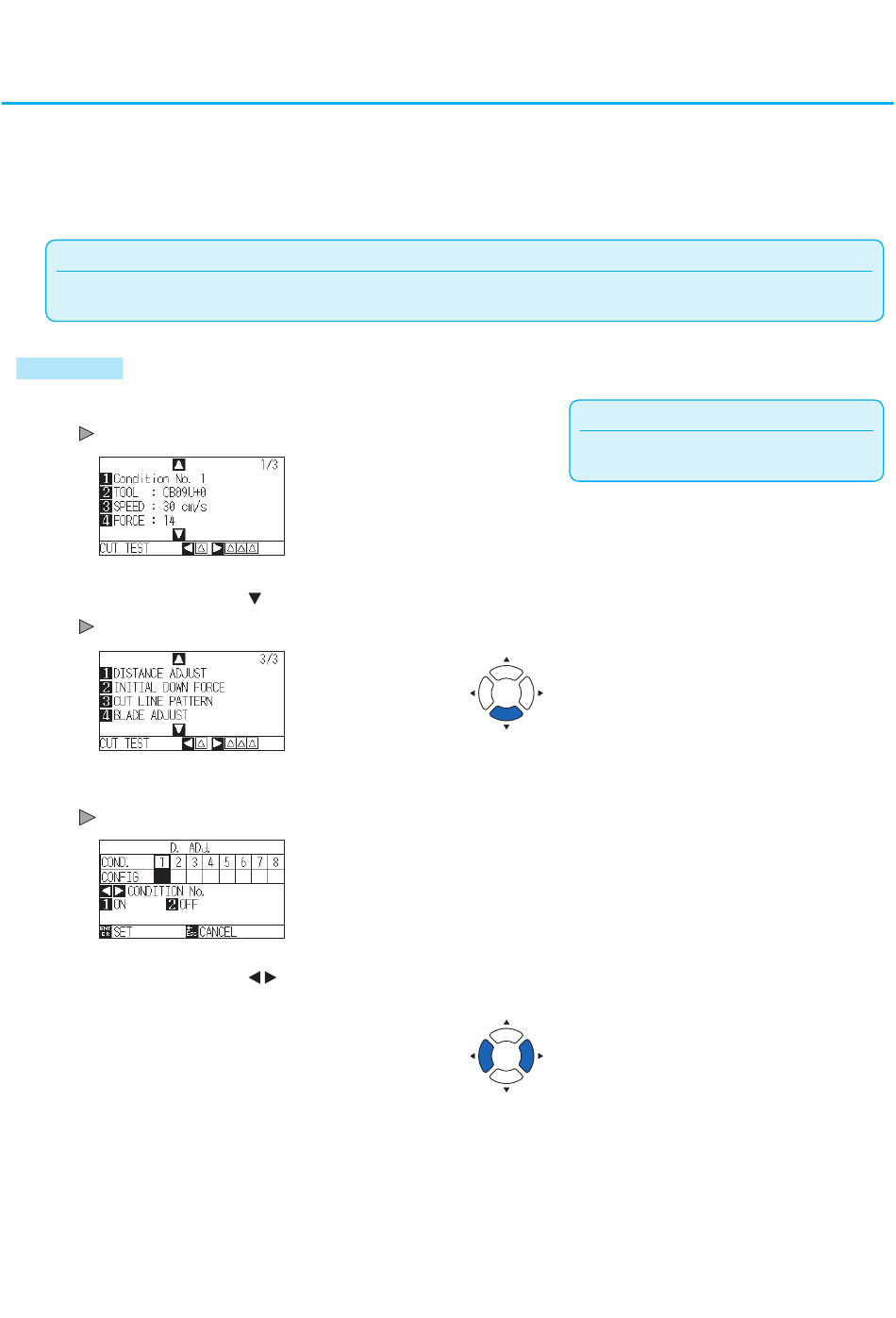

Operation
1
Press the [COND/TEST] key.
CONDITION setting screen (1/3) is displayed.
2
Press the POSITION ( ) key.
CONDITION setting screen (3/3) is displayed.
3
Press the [1] key (DISTANCE ADJUST).
D. ADJ. screen is displayed.
4
Press the POSITION (
No.
) keys and select the CONDITION
7-12
Supplement
Perform the settings in Normal mode.
