7.7

Setting the OFFSET FORCE

Slight cut operation is performed before the actual cut operation to align the blade toward the cutting direction.
Lower FORCE is necessary compared with the normal cutting, so it is possible to set lower FORCE as an
OFFSET FORCE.
OFFSET FORCE is used to control the rotation of the blade with the tangential mode in addition to control the
blade direction at the beginning of the cut.

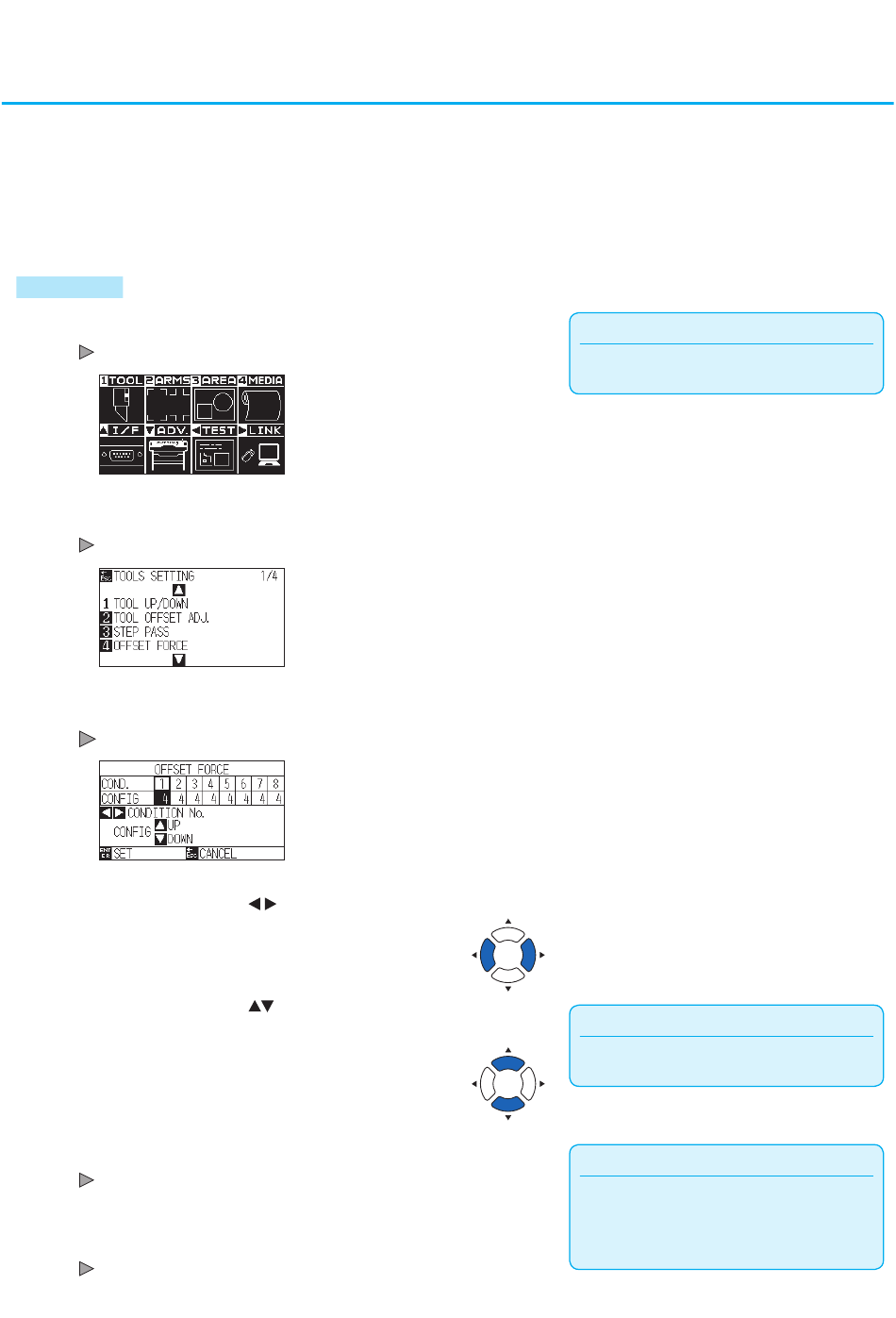

Operation
1
Press the [PAUSE/MENU] key.
MENU screen is displayed.
2
Press the [1] key (TOOL).
TOOLS SETTING screen (1/4) is displayed.
3
Press the [4] key (OFFSET FORCE).
OFFSET FORCE screen is displayed.
4
Press the POSITION (
5
Press the POSITION (
the setting value.
6
Confirm the setting and press the [ENTER] key (SET).
Setting will be confirmed and it will return to TOOLS SETTING screen
(1/4).
7
Press the [PAUSE/MENU] key.
It will return to default screen.
) keys to select the Condition No.
) keys and increase or decrease
7-21
Supplement
Perform the settings in Normal mode.
Supplement
You can set the range between 1 and 38.
Supplement
It will return to TOOLS SETTING screen (1/4)
without changing the settings when you press
the [ESC] key (CANCEL).
