GRAPHTEC CE7000 Series User Manual page 263

When using Cutting Master 4
1
In Adobe Illustrator, select "Cutting Master 4" - "Cut/Plot"
from the File menu.
In Corel DRAW, select "Launch" - "Cut/Plot (CM4)" from
the tool bar.
* If using CorelDRAW version X7 or earlier, select from
the application launcher.
Before selecting the Cut/Plot, set the layer of printing
data to Hide .
2

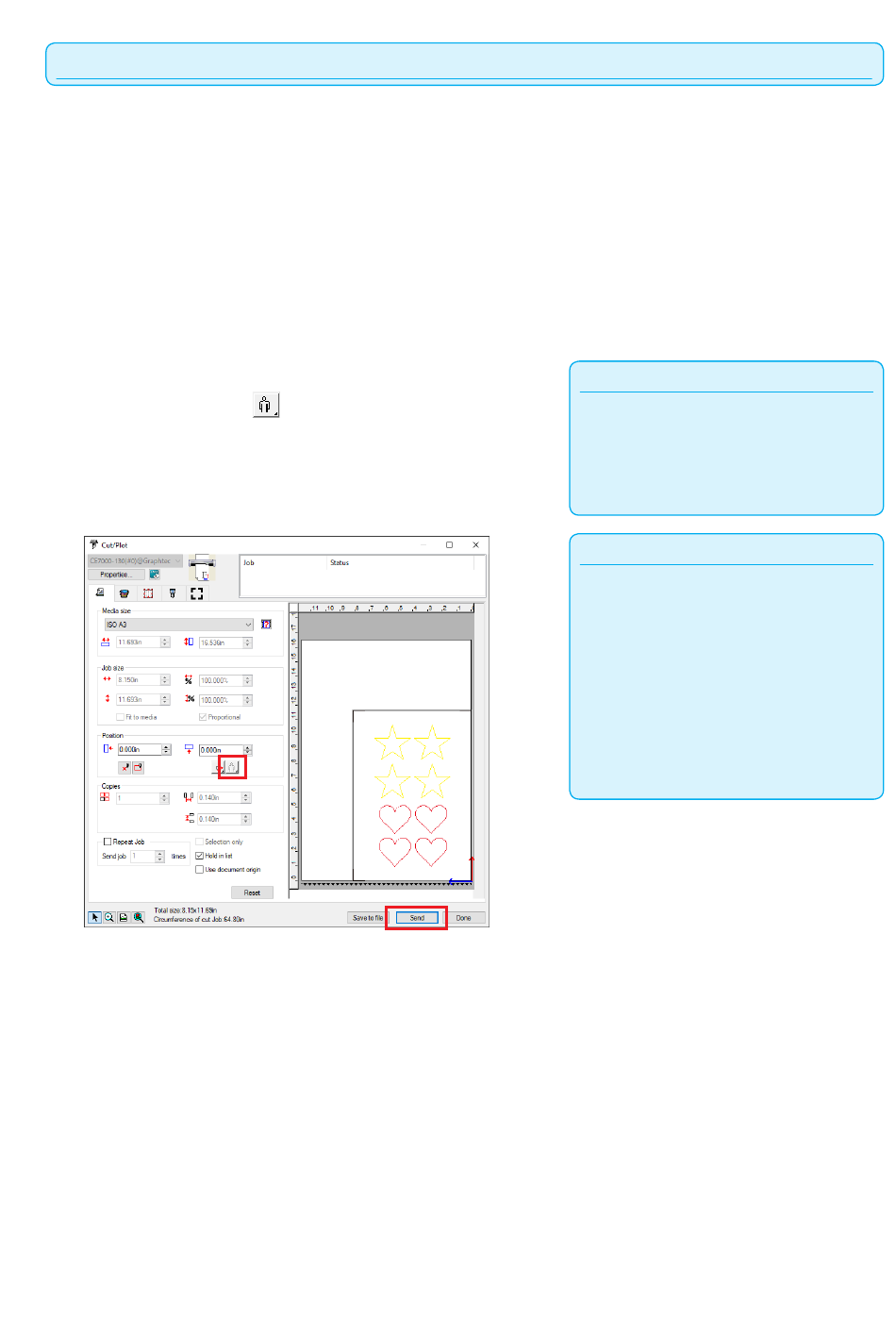

"Cut/Plot" screen is displayed.
Set the ROTATE to
media.
Press the "Send".
to match the set direction of the
13-9
Supplement
The ROTATE can be set only when using
4POINTS.
For other registration marks, load the media
according to the orientation of the preview.
Supplement
When the "Cut Contour" screen is displayed
for the first time, the "Add Device" screen is
displayed. Follow the instructions on the screen
to select the model name to use.
•
For USB connection, select the "Graphtec
USB".
•
For network connection, select the "TCP/IP"
and then enter the IP address of the cutting
plotter.
