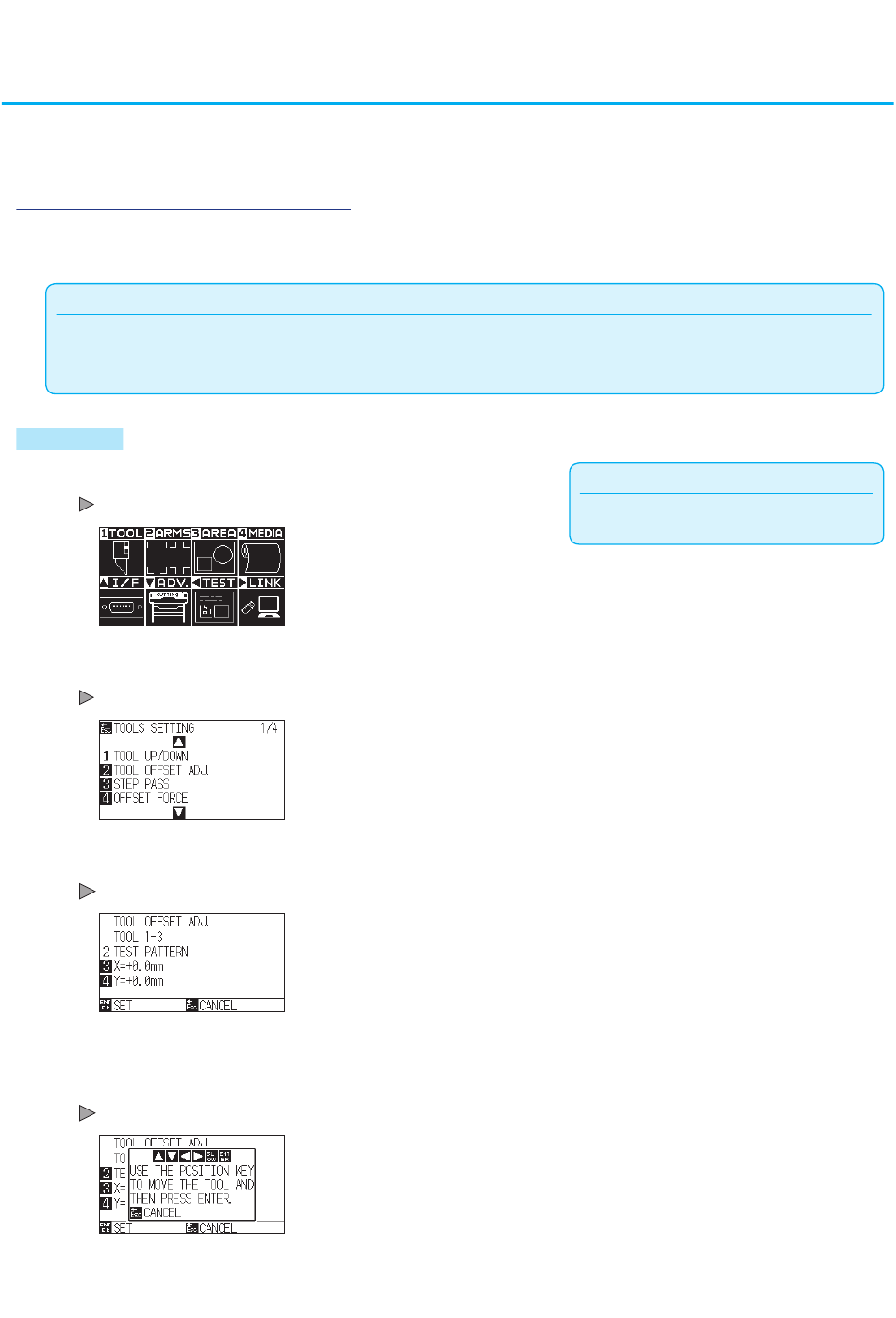

7.8

Setting Adjustment Between the Tools

If there is a misalignment between the tools, you can correct the misalignment by using this function.

In the case of Tool 1 - Tool 3

If there is a misalignment in the cutting/plotting between Tool 1 (tool attached to the backward of the tool holder)
and Tool 3 (tool attached to the forward of the tool holder), you can correct it by entering the adjustment value.
Supplement
Set "TOOL NO. SETTING" of tool condition 1 to 1 and set "TOOL" to Pen.
Set "TOOL NO. SETTING" of tool condition 2 to 3 and set "TOOL" to Cutter.
Operation
1
Press the [PAUSE/MENU] key.
MENU screen is displayed.
2
Press the [1] key (TOOL).
TOOL SETTING (1/4) screen is displayed.
3
Press the [2] key (TOOL OFFSET ADJ.).
TOOL OFFSET ADJ. screen is displayed.
4
Press the [2] key (TEST PATTERN).
The following message is displayed.
Supplement
Perform the settings in Normal mode.
7-22
