Step 2: Create design data for printing and cutting.
Design the drawing pattern that you want to print and the countour to be cut.
Operation
2-
1 Create print design for printing and cutting.
MARK TYPE 1
2-
2 Create cut design for printing and cutting.

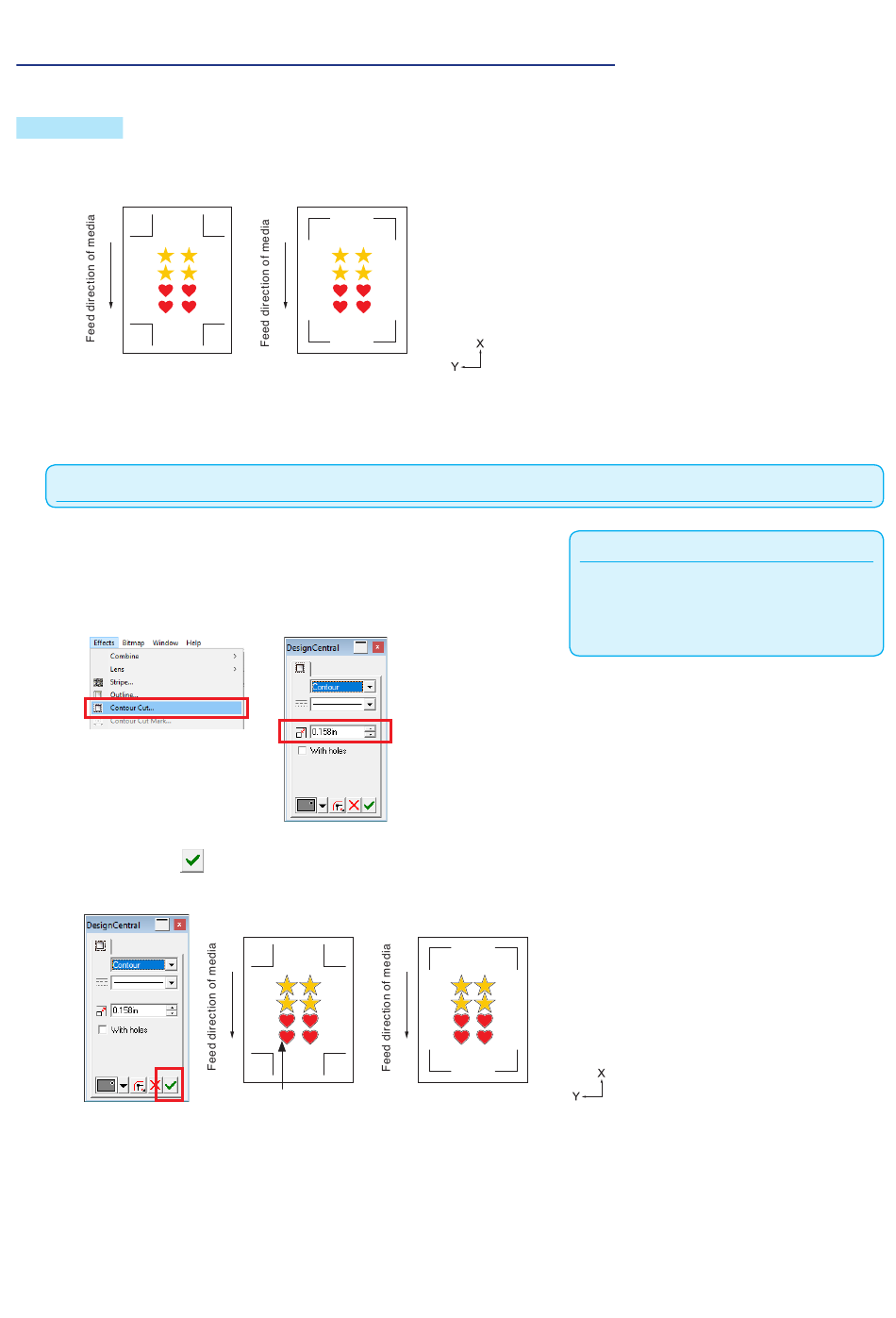

When using Graphtec Pro Studio
1
Select the print data and select "Effects" - "Contour Cut
Mark".
Select the offset value of contour on the "DesignCentral"
screen.
2
Press the
Cutting data is created on the design screen.
MARK TYPE 2
on the "DesignCentral" screen.
MARK TYPE 1
Cutting data
Supplement
If this setting is not performed, "Step 4: Cut the
printed media" - "Contour Cut Mark" icoin in
Step 4-2 is not enabled.
MARK TYPE 2
