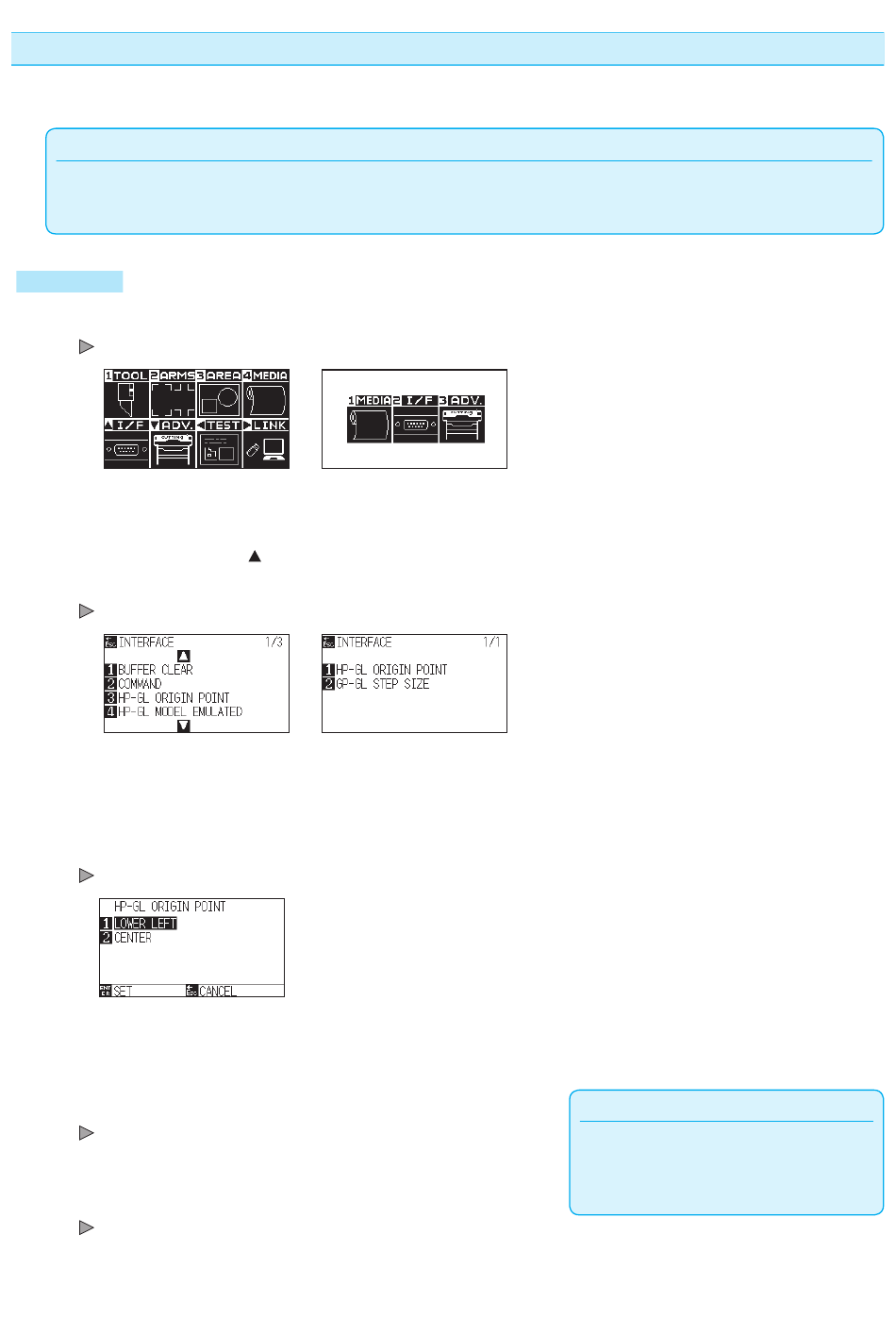

Setting origin point when HP-GL is set

When using the HP-GL command, the origin point is set to either the lower left of the cutting area or the center.
Supplement
•
When using the GP-GL command, this setting does not affect the operation.
•
See "Settings of Controls from Computer" for setting the COMMAND.
Operation
1
Press the [PAUSE/MENU] key.
MENU screen is displayed.
Menu screen
(Normal mode)
2
Press the POSITION ( ) key (I/F) in Normal mode, or press
the [2] key (I/F) in Simple mode.
INTERFACE screen is displayed.
INTERFACE screen
(Normal mode)
3
Press the [3] key (HP-GL ORIGIN POINT) in Normal mode,
or press the [1] key (HP-GL ORIGIN POINT) in Simple mode.
HP-GL ORIGIN POINT setting screen is displayed.
4
Press the [1] key (LOWER LEFT) or the [2] key (CENTER).
5
Confirm the setting and press the [ENTER] key (SET).
Setting will be confirmed and it will return to INTERFACE screen (1/3).
6
Press the [PAUSE/MENU] key.
It will return to the default screen.
Menu screen
(Simple mode)
INTERFACE screen
(Simple mode)
3-9
Supplement
It will return to INTERFACE screen without
changing the settings when you press the [ESC]
key (CANCEL).
