Confirm the Cutting Data

Output of the dump list of the cutting data received by the plotter is possible. It is used to check if the transmission
of cutting data is performed correctly.
CAUTION
Do not place your hand around the moving areas. The tool carriage will start moving, so there is a chance of injury. Tool carriage will
start to move immediately after selecting to print the dump list.
Supplement
•
There may be a difference in the RS-232C transmission condition or the command setting when the printed output and the display of
transmission data does not match. Check the transmission condition and the command.
•
If the command setting is "Auto", the dump list of the cutting data is not output. Please set the command to "GP-GL" or "HP-GL".
Operation
1
Load a media larger than A4 size.
2
Set the pen tool to the tool holder (Backward) and select the
condition where the pen tool is set.
3

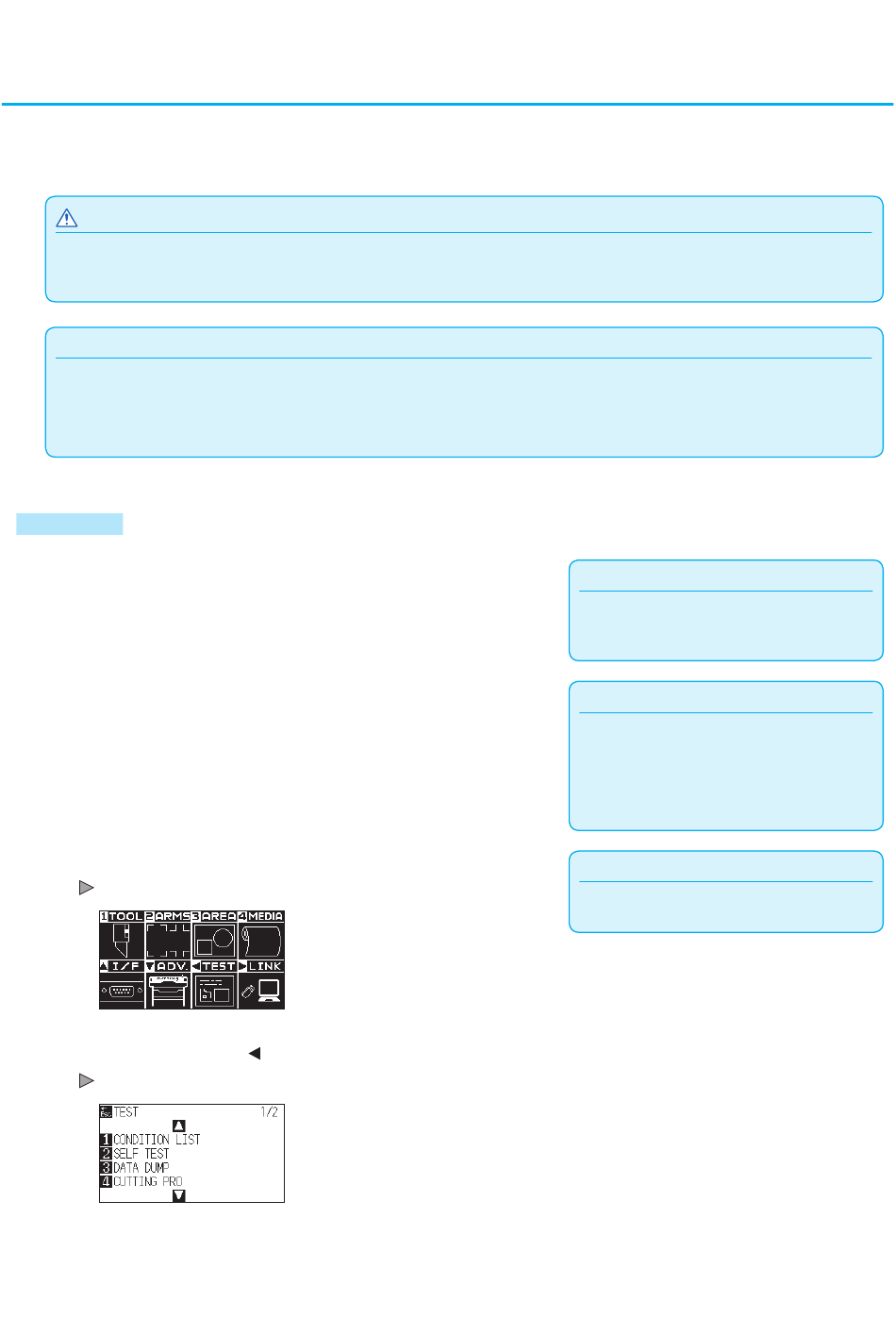

Press the [PAUSE/MENU] key in the default screen.
MENU screen is displayed.
4
Press the POSITION ( ) key (TEST).
TEST screen (1/2) is displayed.
Supplement
See "Loading Media (Paper or Marking Film)"
for loading the media.
Supplement
•
See "Attaching a Tool" for setting the pen tool.
•
For changing the tool conditions please refer
to "Selecting Tool Condition", and for tool
settings please refer to "Setting the Tool".
Supplement
Perform the settings in Normal mode.
