Preparation of Cutter Plunger

This chapter describes the structures and types of the cutter plungers (cutter pens).

Cutter plunger nomenclature

The plotter cuts using a cutter blade mounted in a plunger. There are two different plungers to suit the diameter
of the cutter blade to be mounted (the φ0.9 mm cutter plunger is provided as a standard accessory). Be sure to
mount the cutter blade in the corresponding cutter plunger.

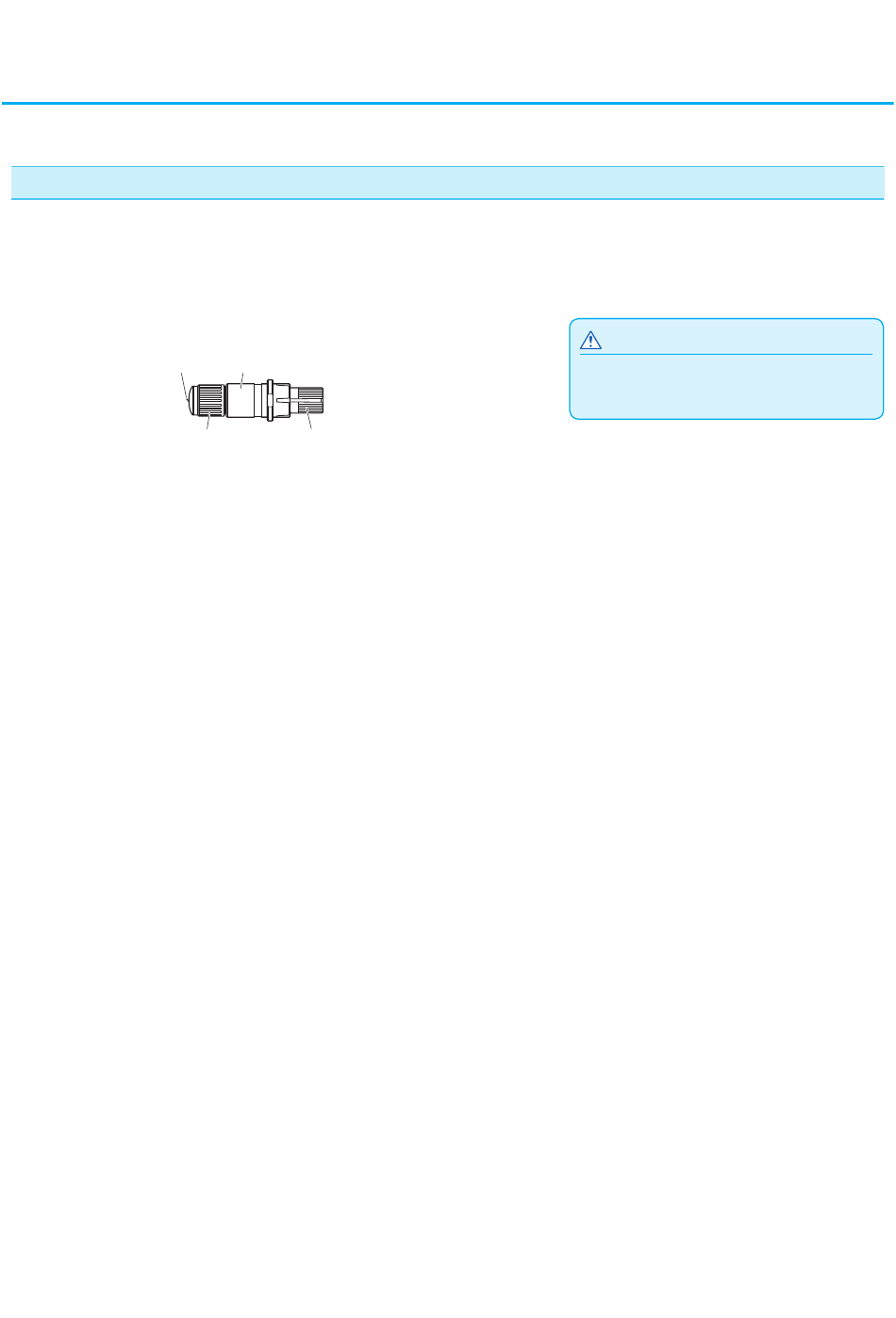

PHP33-CB09N-HS/PHP33-CB15N-HS
Cutter blade
Plunger-cap
(Blue: For φ0.9 mm-diameter blades)
(Red: For φ1.5 mm-diameter blades)
Plunger
Blade-length adjustment knob
To avoid bodily injury, handle cutter blades with
care.
