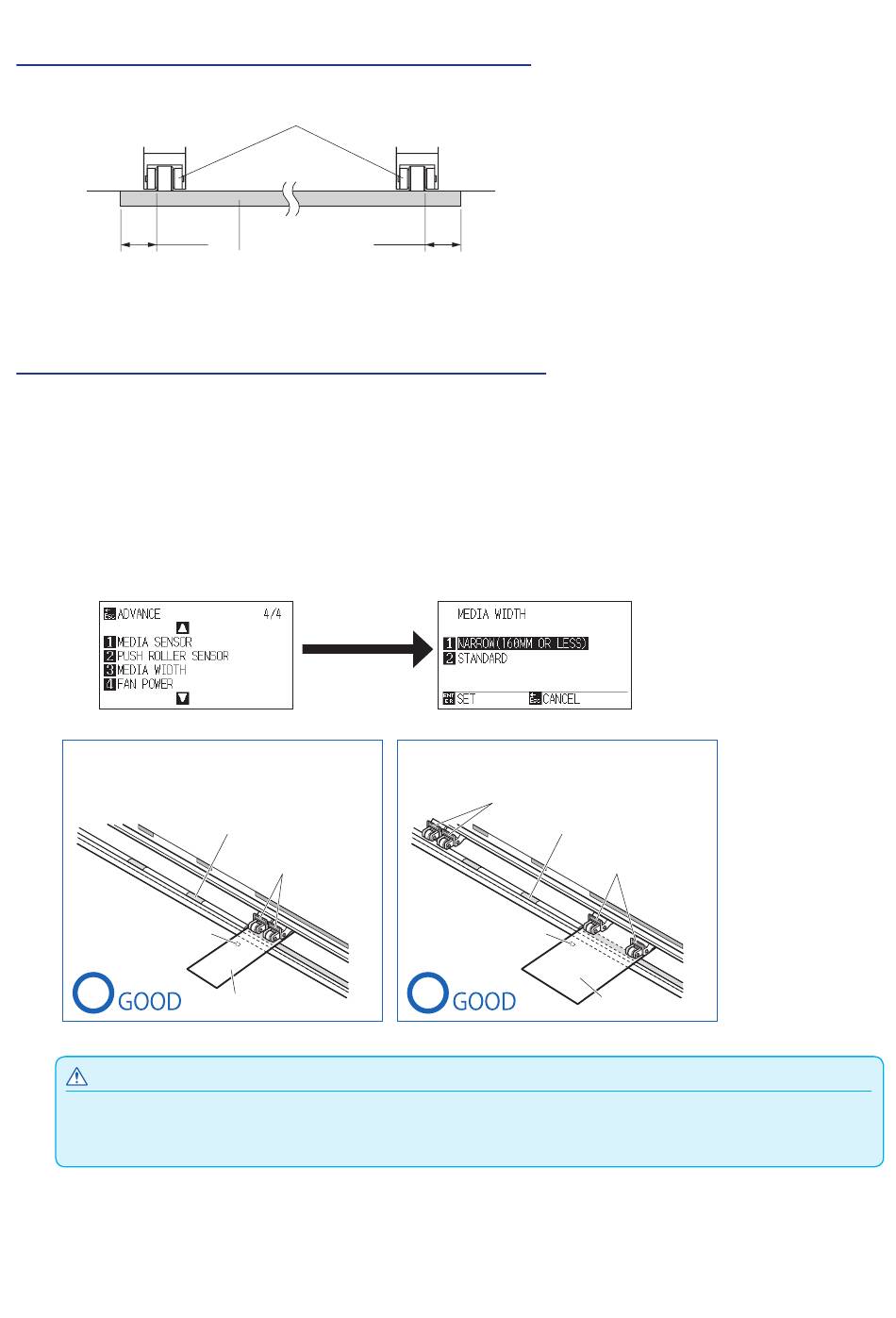

When feeding long media (2 meters or less)

Position the push rollers at least 5 mm inside the edges of the media.
5 mm

When narrow media (160 mm or less) is used

Make sure that all push rollers are on the long right grit roller. Use the left side of the grit roller as a starting point
and then set the push rollers so that they're on both sides of the media.
The CE7000 can take media width of 50 mm or more.
* When using CE7000-130/160, set it to "NARROW(160MM OR LESS)" in "ADVANCE" - "MEDIA WIDTH".
Please use only 2 push rollers on the right side. The hold-down force switching of the third and subsequent
push rollers should be set to be Low (OFF) and not on the grit roller. (The push roller position is not detected.)
Please set the same hold-down force of the push roller to be used. Move the third and subsequent push rollers
away from the media position.
CE7000-40/60
Media sensor
CAUTION
•
The media must be at least 125 mm in length in media feed direction.
•
The media must always be positioned over the media sensor.
Push roller
Media
[3] key
Grit roller
Push roller
Media
5 mm
CE7000-130/160
Push roller
Grit roller
Media sensor
2-26
