Press the [2] key (CHECK).
The height is calculated by moving the tool up and down.

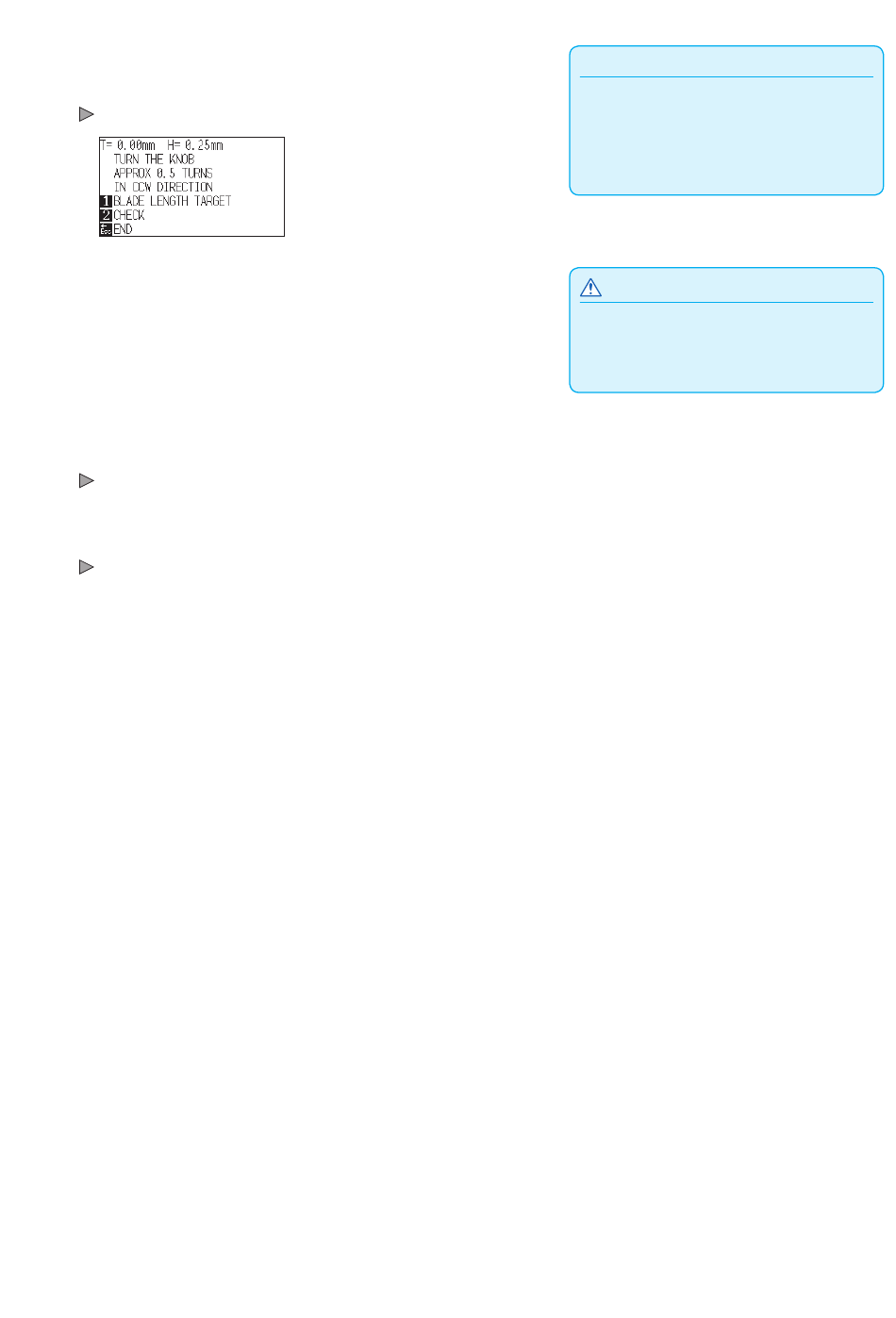

The amount and direction to turn the adjustment knob is displayed.
13
Turn the blade-length adjustment knob and adjust the cutter
blade length.
Current blade length is displayed by pressing the [2] key
(CHECK) , so adjust the blade length until it matches the
thickness of the media.
14
Press the [ESC] key (END).
Adjustment is completed and it will return to CONDITION setting screen
(3/3).
15
Press the [COND/TEST] key.
I will be return to default screen. After completing the settings, press
[ENTER] key.
Supplement
"T" is the target value of the blade length, and
"H" is the current blade height (amount).
Turning the blade-length adjustment knob
displays the number of turns and direction.
Depending on the loaded media, the blade
might sink in to the media, making accurate
measurement impossible.
2-62
CAUTION
