GRAPHTEC CE7000 Series User Manual page 188

3

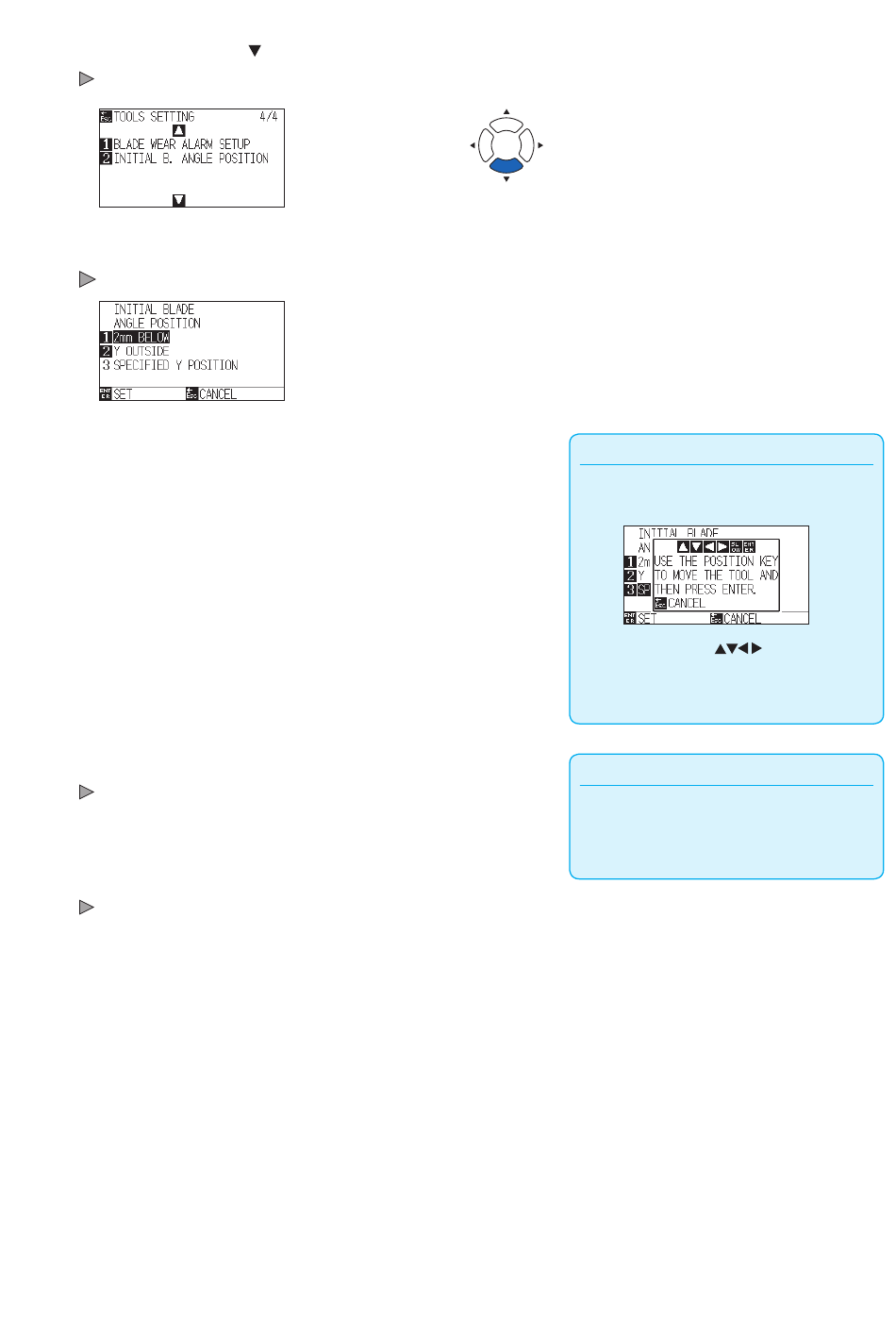

Press the POSITION ( ) key.
TOOLS SETTING screen (4/4) is displayed.
4
Press the [2] key (INITIAL B. ANGLE POSITION).
INITIAL BLADE ANGLE POSITION setting screen is displayed.
5
Press the [1] key (2 mm BELOW), the [2] key (Y OUTSIDE) or
the [3] key (SPECIFIED Y POSITION).
6
Confirm the setting and press the [ENTER] key (SET).
Setting will be confirmed and it will return to TOOLS SETTING screen
(4/4).
7
Press the [PAUSE/MENU] key.
It will return to default screen.
Supplement
When the [3] key (SPECIFIED Y POSITION) is
selected, the following message is displayed.
Press the POSITION (
tool position and then press the [ENTER] key to
make the setting.
Supplement
It will return to TOOLS SETTING screen (4/4)
without changing the settings when you press
the [ESC] key (CANCEL).
7-20
