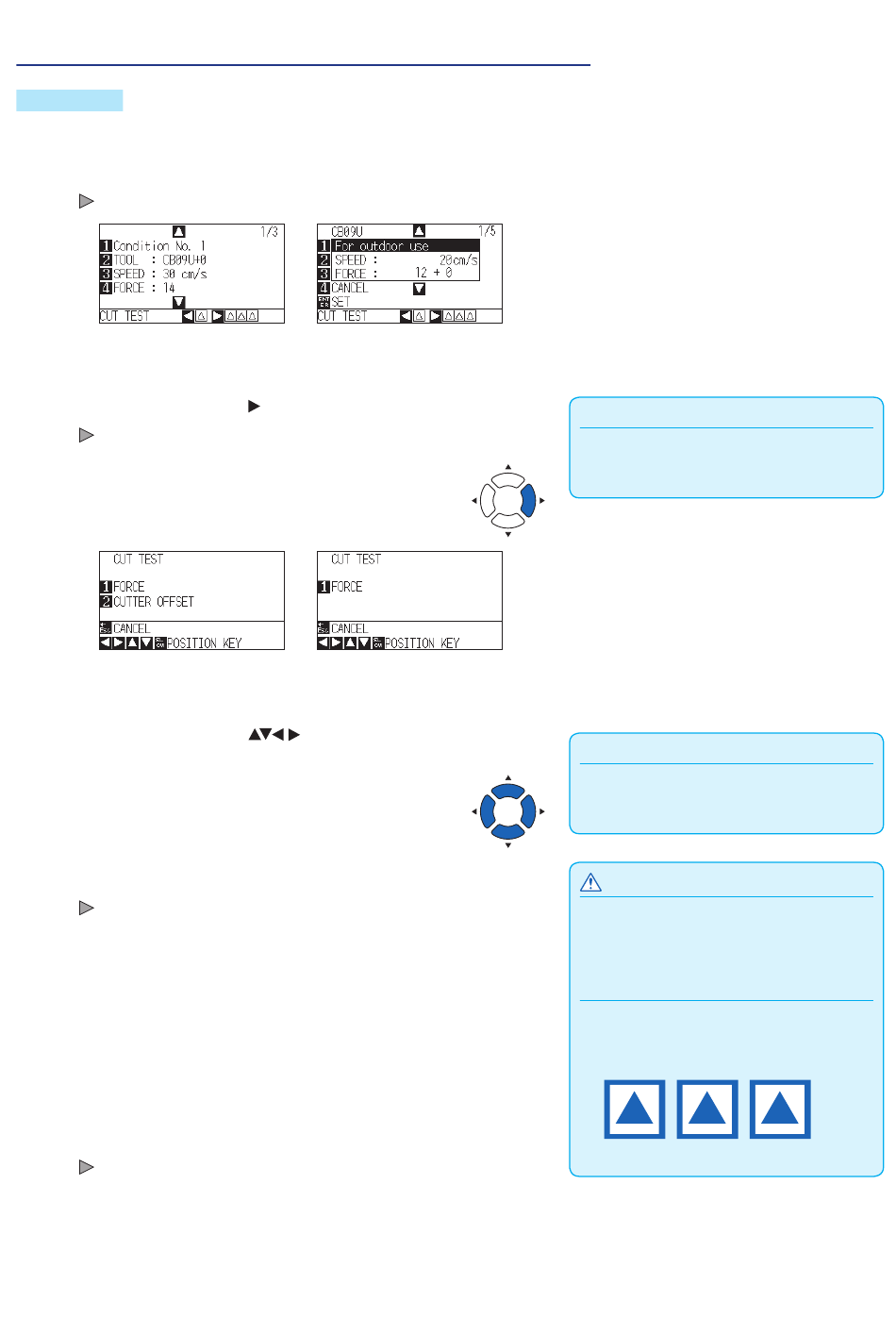

To make 3 cuts with set value and ±1 of set value
Operation
1
Load the media for test cutting in the plotter.
2
Press the [COND/TEST] key in the default screen.
CONDITION setting screen (1/3) is displayed.
CONDITION screen
(Normal mode)
3
Press the POSITION ( ) key (CUT TEST).
CUT TEST screen is displayed.
CONDITION screen
(Normal mode)
4
Press the POSITION (
to the location you wish to perform the test cutting.
5
Press the [1] key (FORCE).
3 cutting test patterns are cut, with current FORCE in the center, and 1
each of FORCE increased and decreased for 1.
6
Press the [ENTER] key after completion.
It will return to CUT TEST menu screen.
CONDITION screen
(Simple mode)
CONDITION screen
(Simple mode)
) keys to move the tool carriage
2-57
Supplement
It will return to CONDITION setting screen when
you press the [ESC] key (CANCEL).
Supplement
Pressing the POSITION and [SLOW] keys at the
same time will move the tool carriage slower.
CAUTION
When the [1] key (FORCE) is pressed, the tool
carriage will start moving, so take care not to get
injured by the cutter blade.
Supplement
Test cut patterns can have their cut order and
force changed as shown below.
+1 0
Cut Order
-1
