Circle-command resolution setting (CIRCLE RESOLUTION)

This function set the sets the resolution upon receipt of the circle-command for the HP-GL pen plotter arc cutting
command.
Select from "AUTO" or "DEFAULT" of 5 degrees.
Operation
1

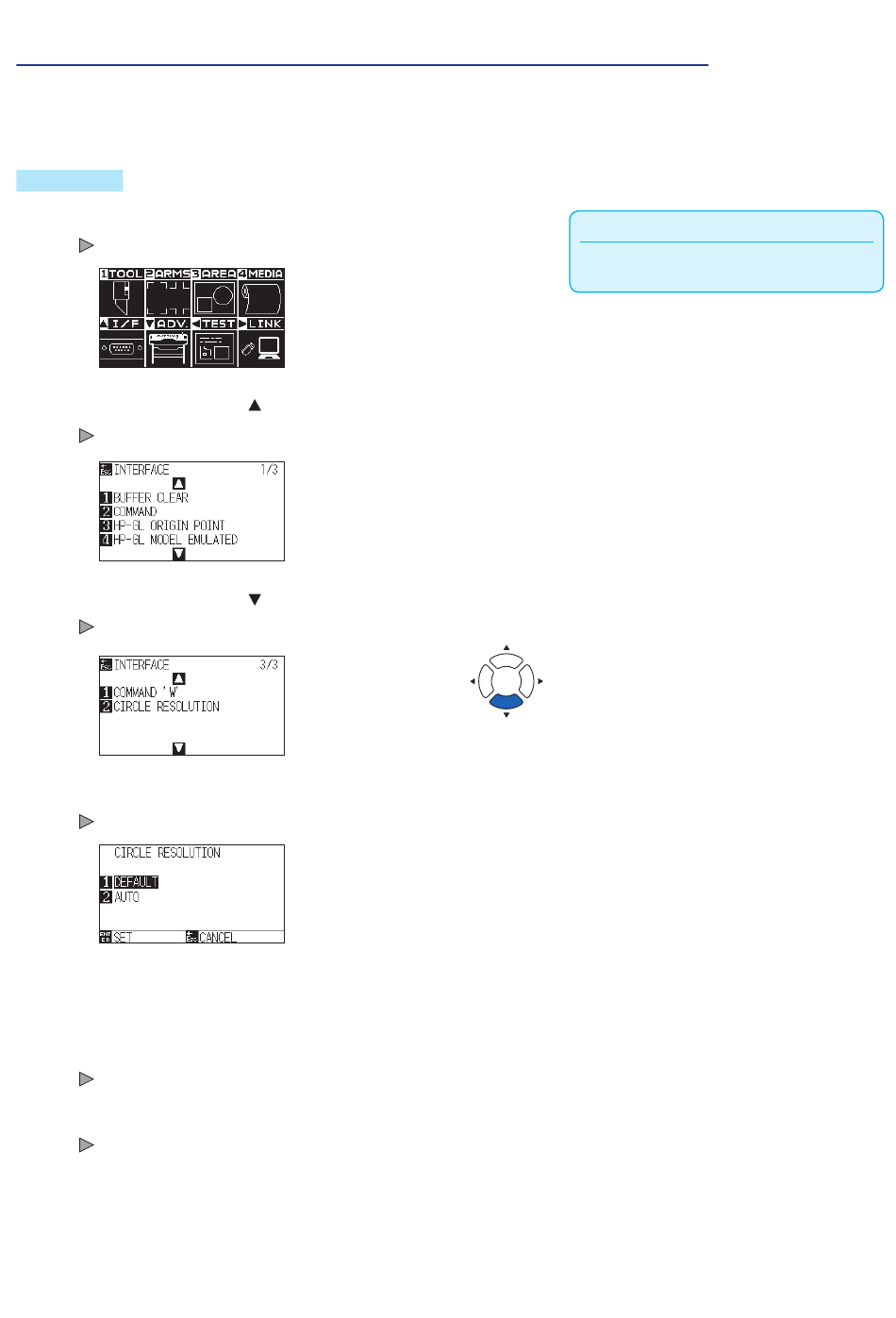

Press the [PAUSE/MENU] key in the default screen.
MENU screen is displayed.
2
Press the POSITION ( ) key (I/F).
INTERFACE screen (1/3) is displayed.
3
Press the POSITION ( ) key.
INTERFACE screen (3/3) is displayed.
4
Press the [2] key (CIRCLE RESOLUTION).
CIRCLE RESOLUTION screen is displayed.
5
Press the [1] key (DEFAULT) or the [2] key (AUTO).
6
Confirm the setting and press the [ENTER] key (SET).
Setting will be confirmed and it will return to INTERFACE screen (3/3).
7
Press the [PAUSE/MENU] key.
It will return to default screen.
Supplement
Perform the settings in Normal mode.
