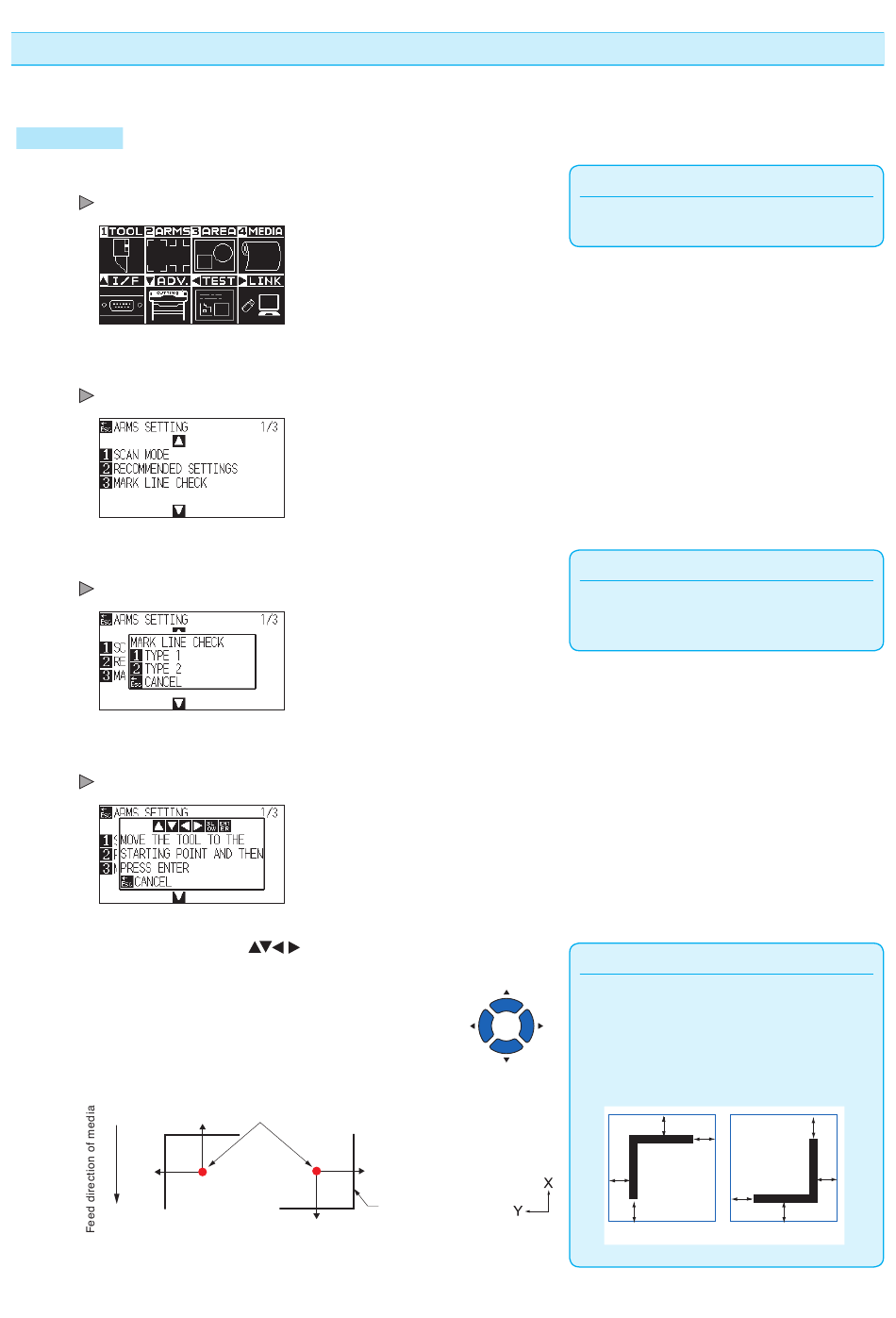

Check the lines of registration mark

After detecting registration marks actually, confirm mark scanning operation.
Operation
1
Press the [PAUSE/MENU] key.
MENU screen is displayed.
2
Press the [2] key (ARMS).
ARMS SETTING screen (1/3) is displayed.
3
Press the [3] key (MARK LINE CHECK).
MARK LINE CHECK screen is displayed.
4
Press the [1] key (TYPE1) or the [2] key (TYPE2).
The following message is displayed.
5
Press the POSITION (
scanning start position (red circle).
MARK TYPE 1
Registration mark scanning start position
) keys to move the tool to the
MARK TYPE 2
Registration mark
5-12
Supplement
Perform the settings in Normal mode.
Supplement
This function is not available when MARK TYPE
3 or MARK TYPE 4 is used.
Supplement
When checking the lines of registration mark
using the mask registration mark, set the mask
width to 20 mm on the application software.
If it is 20 mm or less, the registration mark lines
cannot be checked properly.
a
a
a
a
a
a=20mm
a
a
a
