15.4

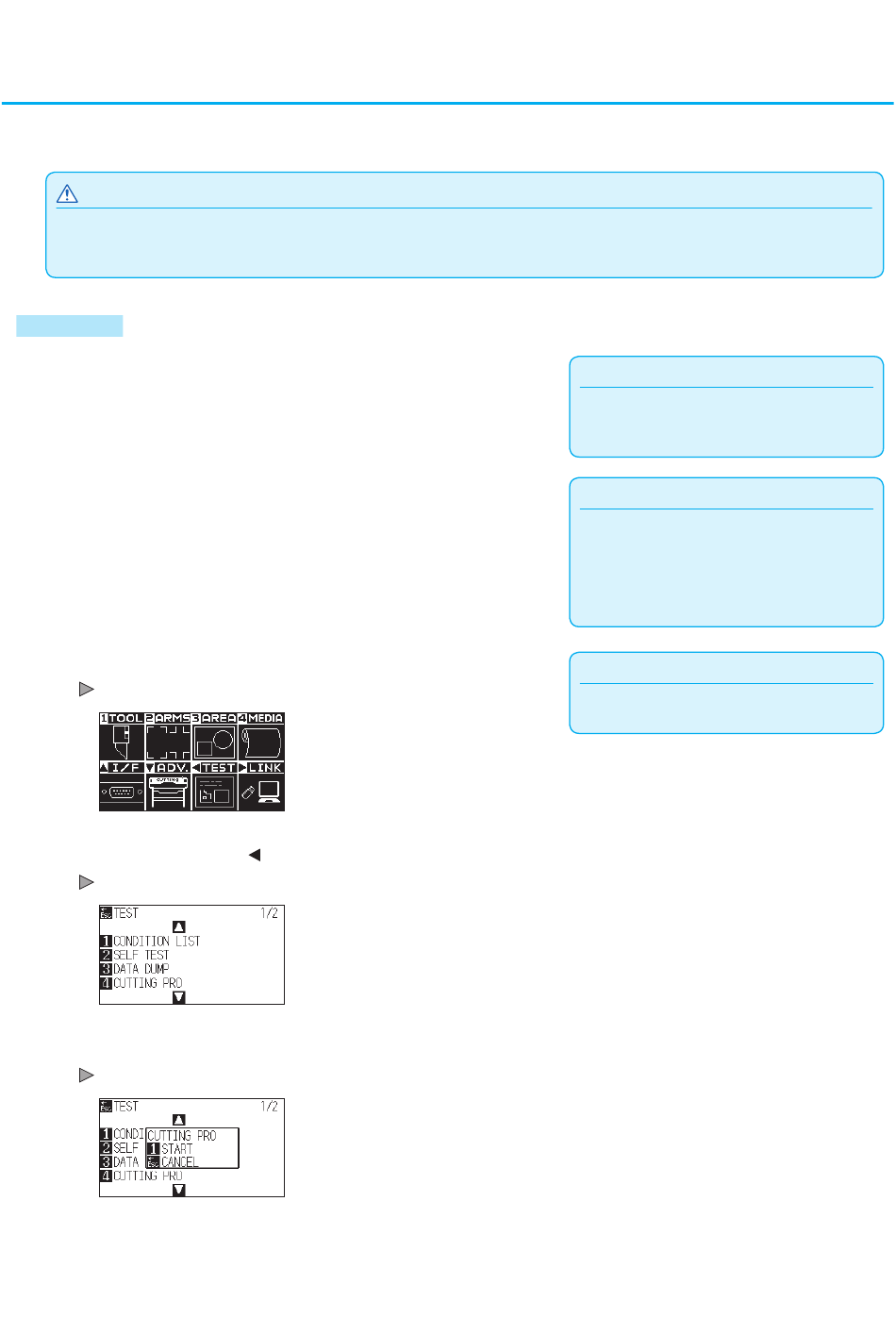

Creating CUTTING PRO

Create a test pattern to check the operation of the plotter.
CAUTION
Do not place your hand around the moving areas. The tool carriage will start moving, so there is a chance of injury. Tool carriage will
start to move immediately after selecting to plot the test pattern.
Operation
1
Load a media larger than A3 size.
2
Set the pen tool to the tool holder (Backward) and select the
condition where the pen tool is set.
3
Press the [PAUSE/MENU] key in the default screen.
MENU screen is displayed.
4
Press the POSITION ( ) key (TEST).
TEST screen (1/2) is displayed.
5
Press the [4] key (CUTTING PRO).
CUTTING PRO start screen is displayed.
Supplement
See "Loading Media (Paper or Marking Film)"
for loading the media.
Supplement
•
See "Attaching a Tool" for setting the pen tool.
•
For changing the tool conditions please refer
to "Selecting Tool Condition", and for tool
settings please refer to "Setting the Tool".
Supplement
Perform the settings in Normal mode.
15-20
