Setting the length of overcut

Set the length of overcut with tangential mode.
Operation
1

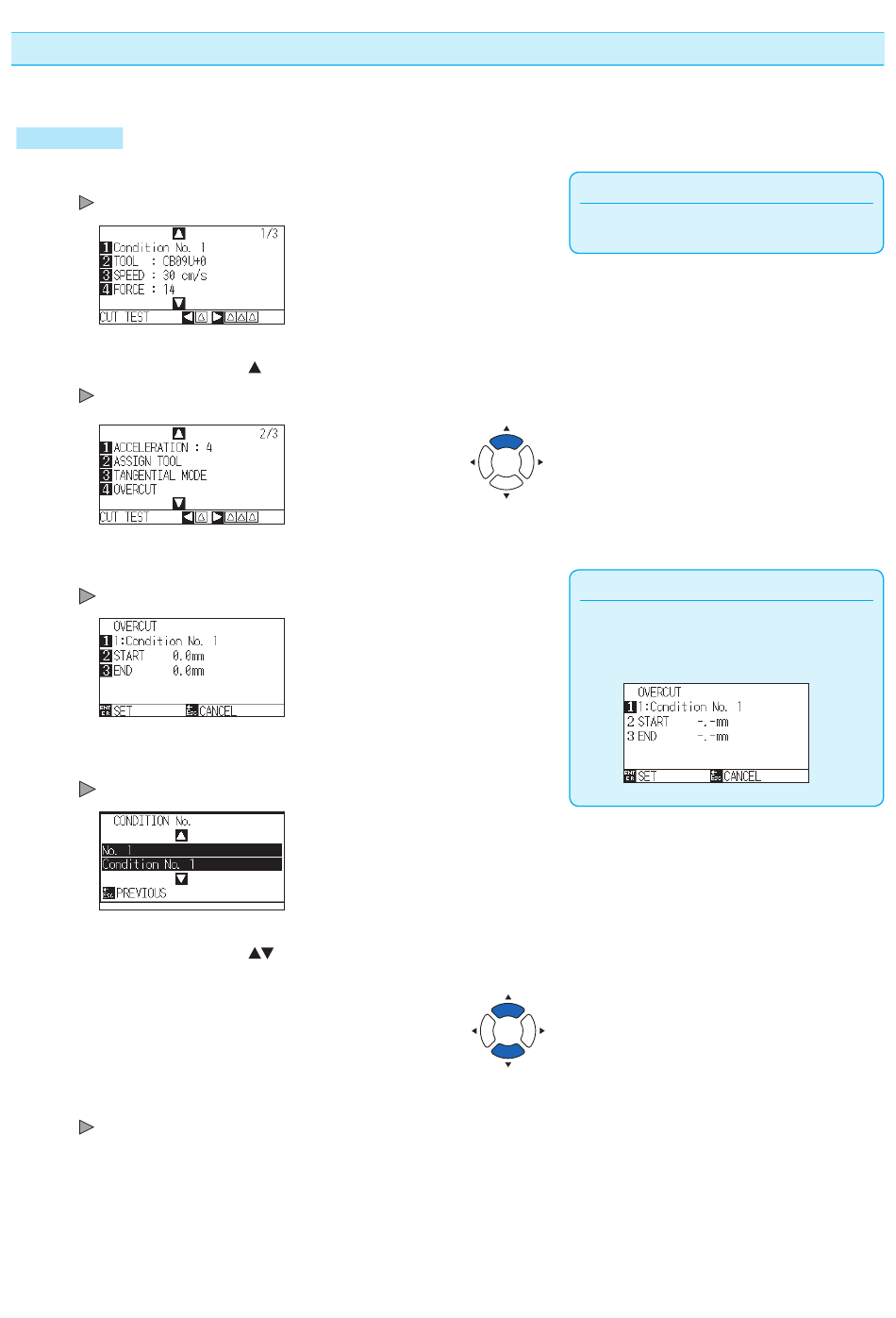

Press the [COND/TEST] key.
CONDITION setting screen (1/3) is displayed.
2
Press the POSITION ( ) key.
CONDITION setting screen (2/3) is displayed.
3
Press the [4] key (OVERCUT).
OVERCUT screen is display
4
Press the [1] key (Condition No.)
CONDITION No. screen is displayed.
5
Press the POSITION (
No.
6
Confirm the setting, and press the [ESC] key (PREVIOUS).
Condition No. will be selected and it will return to OVERCUT screen.
) keys and select the CONDITION
7-4
Supplement
Perform the settings in Normal mode.
Supplement
It is enabled when Tangential Mode is set.
When it is set to OFF, the screen below will be
displayed.
