GRAPHTEC CE7000 Series User Manual page 86

5
Press the [1] key (1) or the [3] key (3).
6
Confirm the setting and press the [ENTER] key (SET).
Setting will be confirmed and it will return to CONDITION setting screen
(2/3).
7
Press the [COND/TEST] key.
It will return to default screen.
Supplement
•

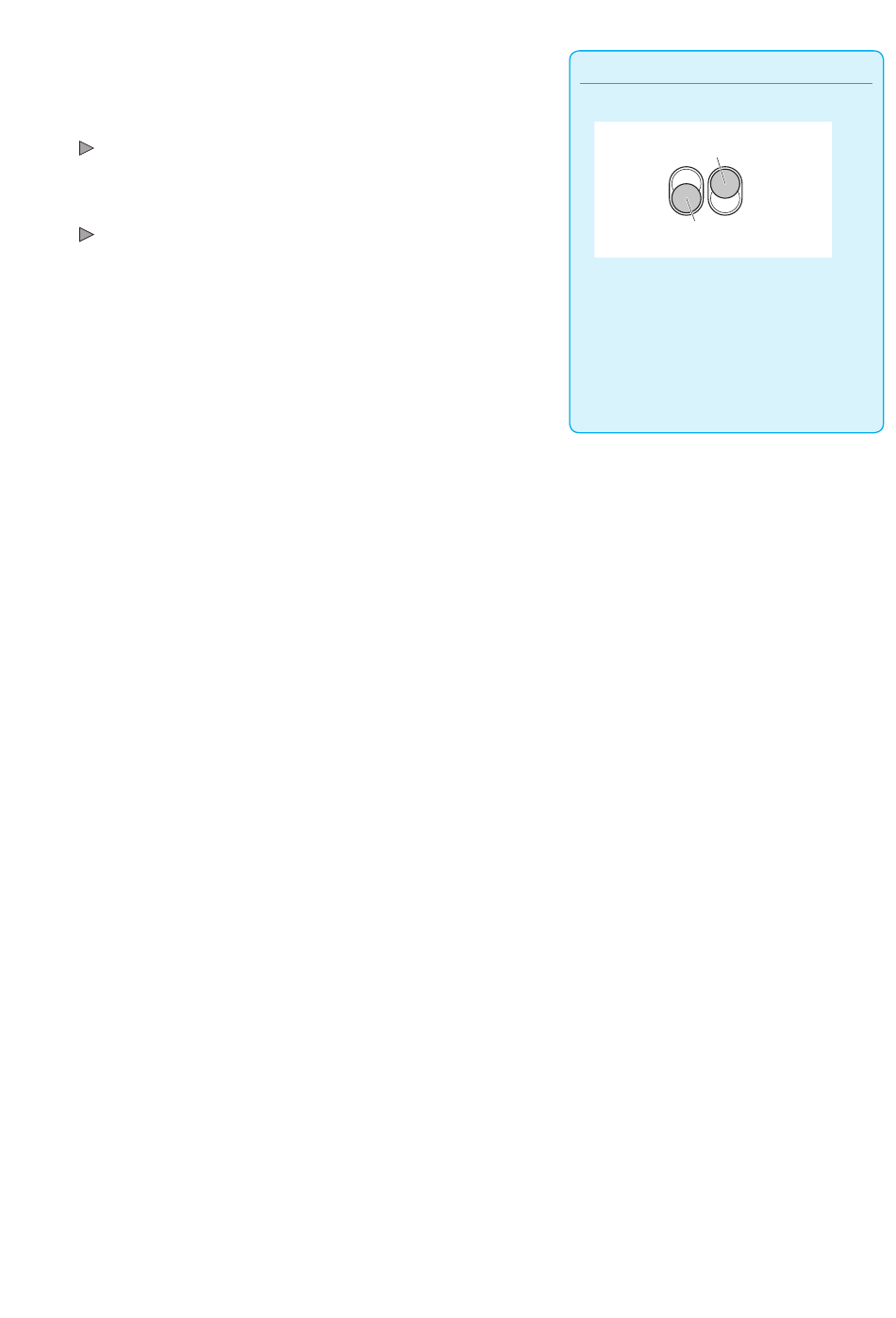

Tool number and installed position
Tool 1: When using a tool installed behind
Tool 3: When using a tool attached in front of
•
For information on how to install the tool, see
"Attaching a Tool".
2-54
Tool Holder
(Backward: Half cut/Plotter pen)
Tool Holder
(Forward: Cutting out)
the tool holder
the tool holder
