When coordinate axes rotation are set

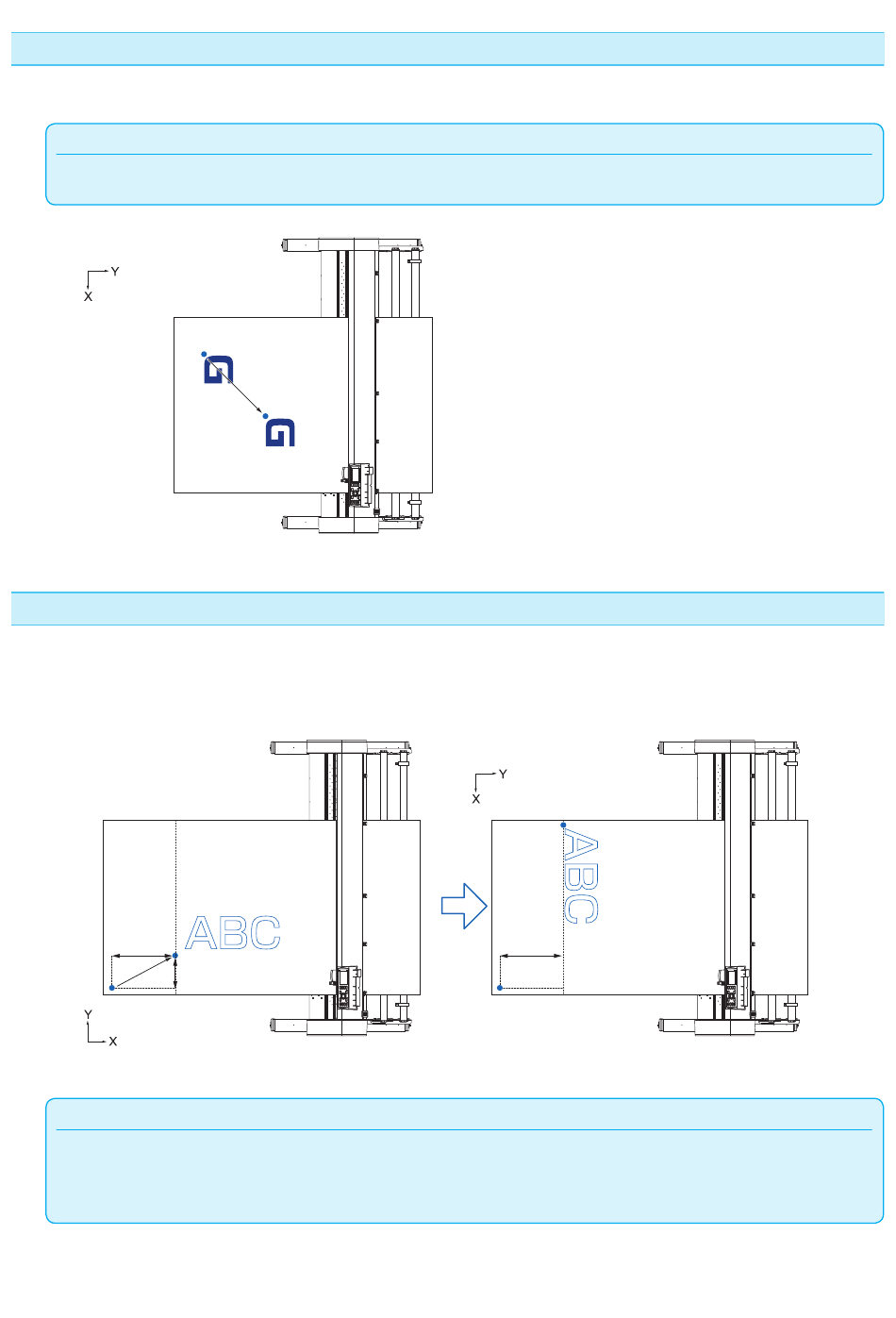

If the origin point is moved while the coordinate axes are rotated, the origin point will move as shown below.
Supplement
See "Setting the Cutting Direction" about the rotation of the coordinate axes.
Original origin point

When coordinate axes are rotated after origin point is set

The origin point will be initialized as shown below if the coordinate is rotated after moving the origin point.
Distance "a" will be maintained, but distance "b" will be initialized.
a
New origin point
b
Original origin
point
Before setting
Supplement
•
To use the origin point movement and coordinate axes rotation together, always rotate the coordinate axes first, and then move the
origin point.
•
Coordinate value displayed after setting new origin point is a distance from the new origin point.
New origin
point
New origin
point
a
Original origin
point
After setting
