Setting the speed

Set the speed of the tool that is used in each of the condition numbers.
Setting range : CE7000-40 1 to10 (in 1 cm/s increment), 10 to 60 (in 5 cm/s increment)
: CE7000-60 1 to10 (in 1 cm/s increment), 10 to 60 (in 5 cm/s increment), 64
: CE7000-130 1 to10 (in 1 cm/s increment), 10 to 70 (in 5 cm/s increment), 71
: CE7000-160 1 to10 (in 1 cm/s increment), 10 to 70 (in 5 cm/s increment), 71
Supplement
•
In the CE7000-60, if speed is set to 64 and acceleration to 3 at the same time, the "*" will be displayed in the acceleration. In this
case, both values will be automatically calculated and the cutting plotter works with the values.
•
In the CE7000-130/160, if acceleration is se to 2, the speed cannot be set to 65 or more (65, 70, or 71). In this case, the " * " will be
displayed in the acceleration and both values of the speed and acceleration will be automatically calculated and the cutting plotter
works with the values.

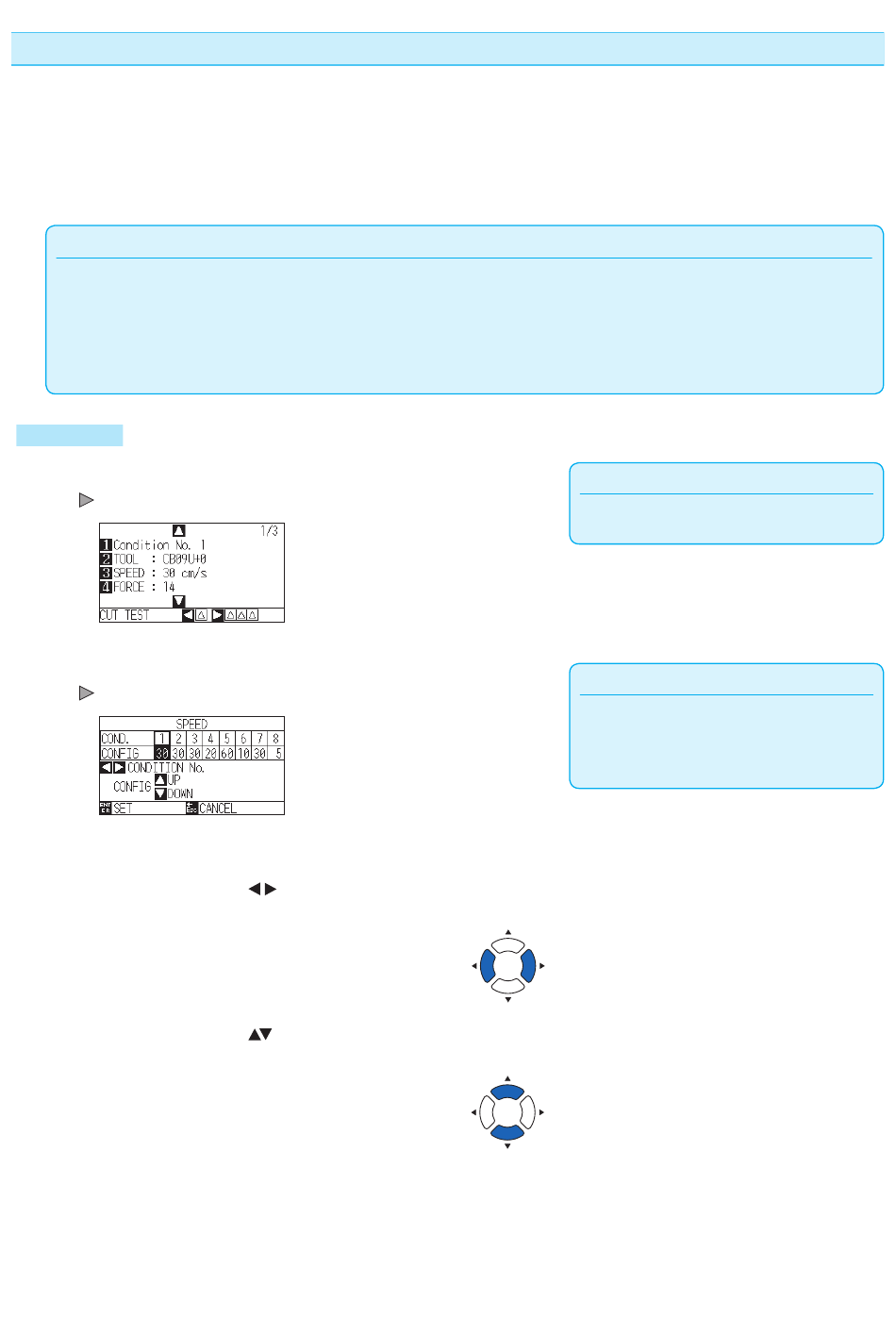

Operation
1
Press the [COND/TEST] key in the default screen.
CONDITION setting screen (1/3) is displayed.
2
Press the [3] key (SPEED).
SPEED setting screen is displayed.
* Display may vary depending on the selected tool condition number.
3
Press the POSITION (
number (CONDITION No.).
4
Press the POSITION (
setting value.
) keys and select the tool condition
) keys and increase or decrease the
2-48
Supplement
Perform the settings in Normal mode.
Supplement
It will return to CONDITION setting screen (1/3)
without changing the settings when you press
the [ESC] key (CANCEL).
