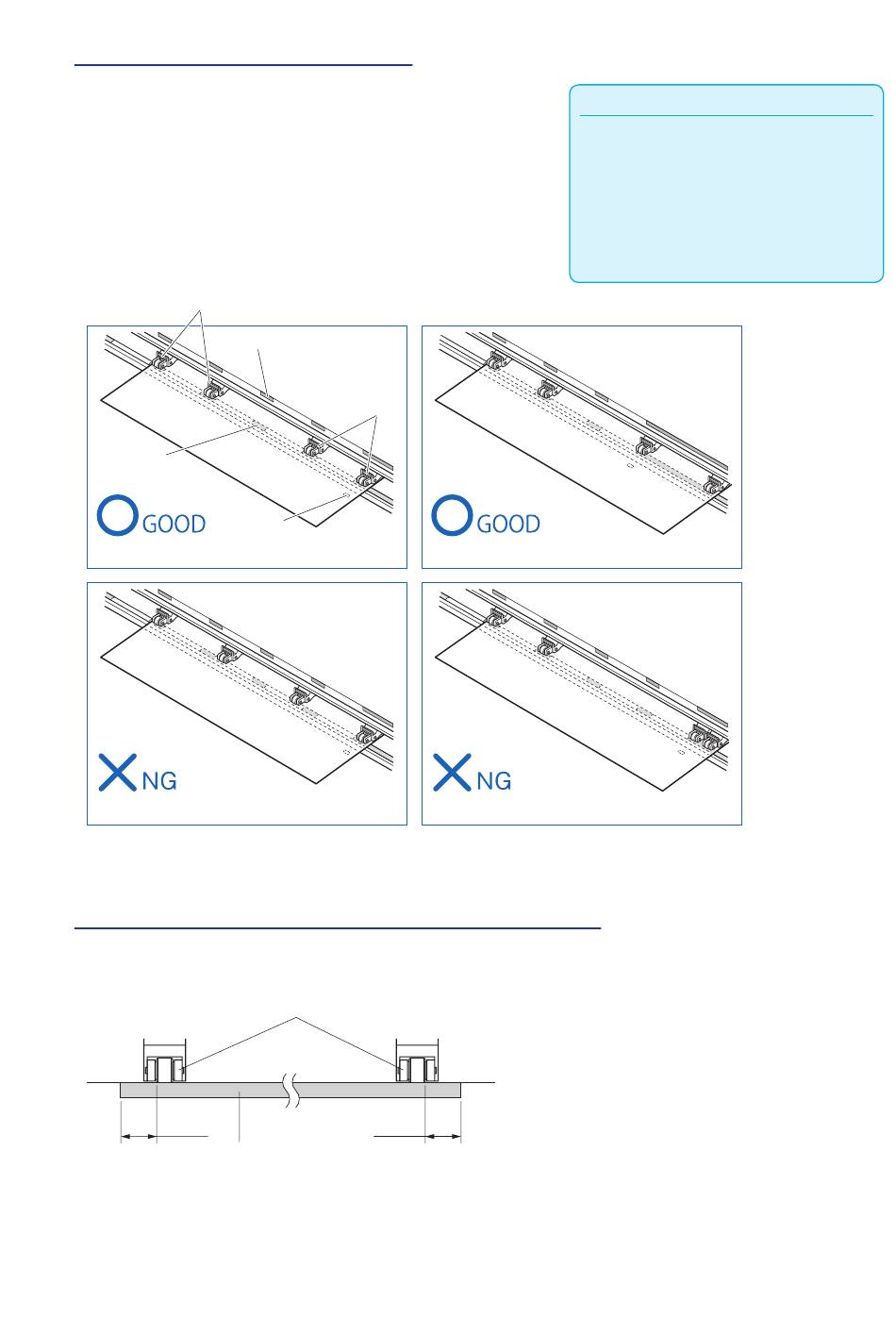

When using CE7000-130/160
Use the 4 push rollers to push down the sides and center of
the media. Use the grit roller position guide and make sure
the push rollers are on top of the grit rollers.
You can adjust the push roller's hold-down force.
Push roller
Grit roller position guide
Grit roller
Media sensor
(The center push roller is on top of the grit roller.)
(The center push roller is not on top of the grit roller.)
When feeding long media (2 meters or more)
Position the push rollers at least 15 mm inside the edges of
the media.
15 mm
Media
Push roller
(The center push roller is on top of the grit roller.)
(The center push roller is near the edge.)
Push roller
15 mm
Supplement
•
The media must always be positioned over
the media sensor.
•
See "Aligning the Push Rollers" for the
position of the push rollers.
•
See "Aligning the Push Rollers" for information
about push roller hold-down force.
