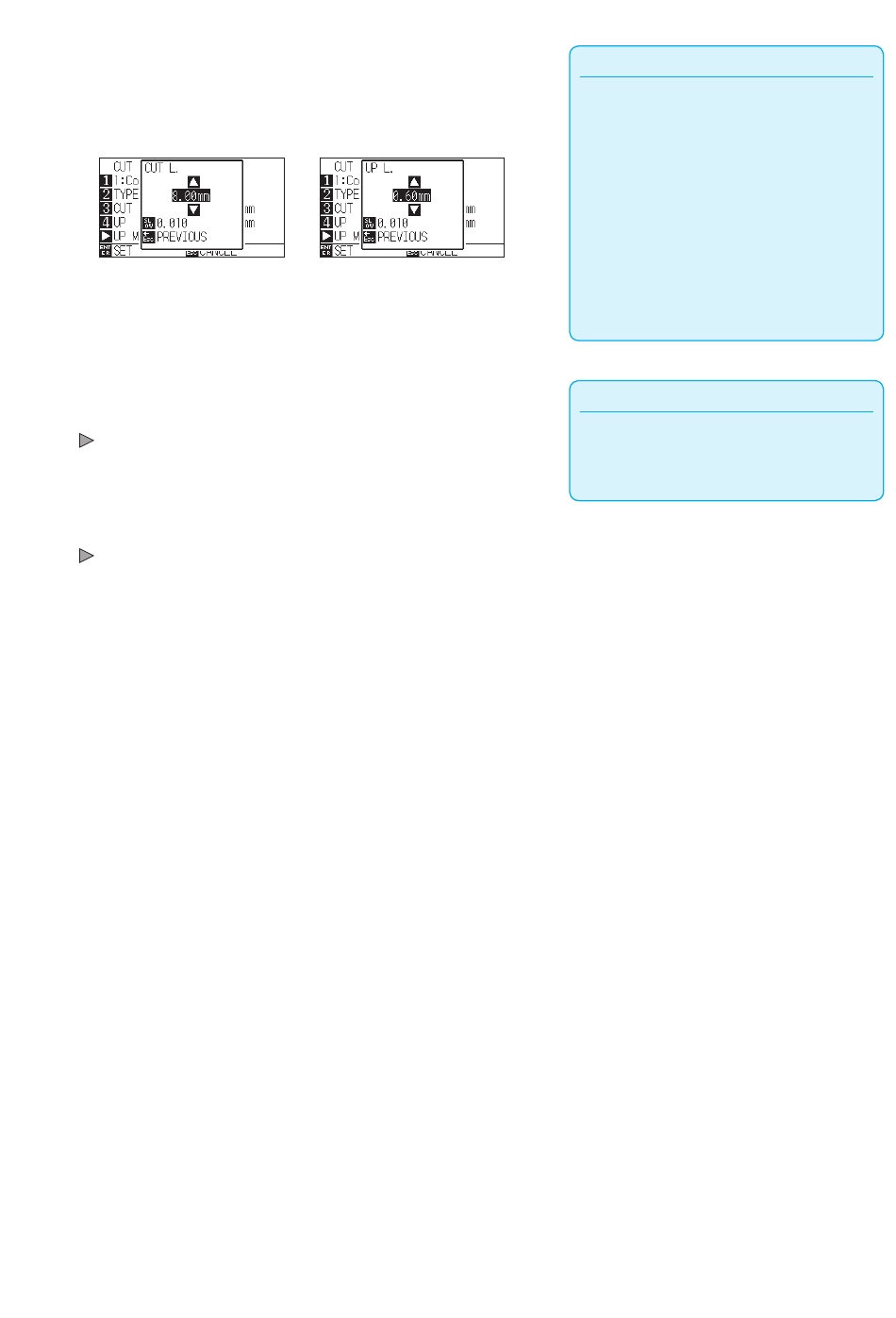

If the "USER" is chosen in step 8, press the [3] key (CUT
L.) and the [4] key (UP L.) to set the cut length and tool up
length.
Follow steps 10 to 12 for this operation.
14
Confirm the setting and press the [ENTER] key (SET) in the
CUT LINE PATTERN screen.
Setting will be confirmed and it will return to CONDITION setting screen
(2/3).
15
Press the [COND/TEST] key.
It will return to the default screen.
Supplement
•
If the TYPE No. 0 to 7 is selected in step
8, CUT L and UP L is only displayed, and
not possible to change. Skip this step, and
proceed.
•
Range possible to set for the CUT L is 0.1 mm
to 100.0 mm.
•
Range possible to set for the UP L is 0.1 mm
to 10.0 mm.
•
Press the [SLOW] key to select the setting
digits.
Supplement
It will return to CONDITION setting screen (3/3)
without changing the settings when you press the
[ESC] key (CANCEL).
