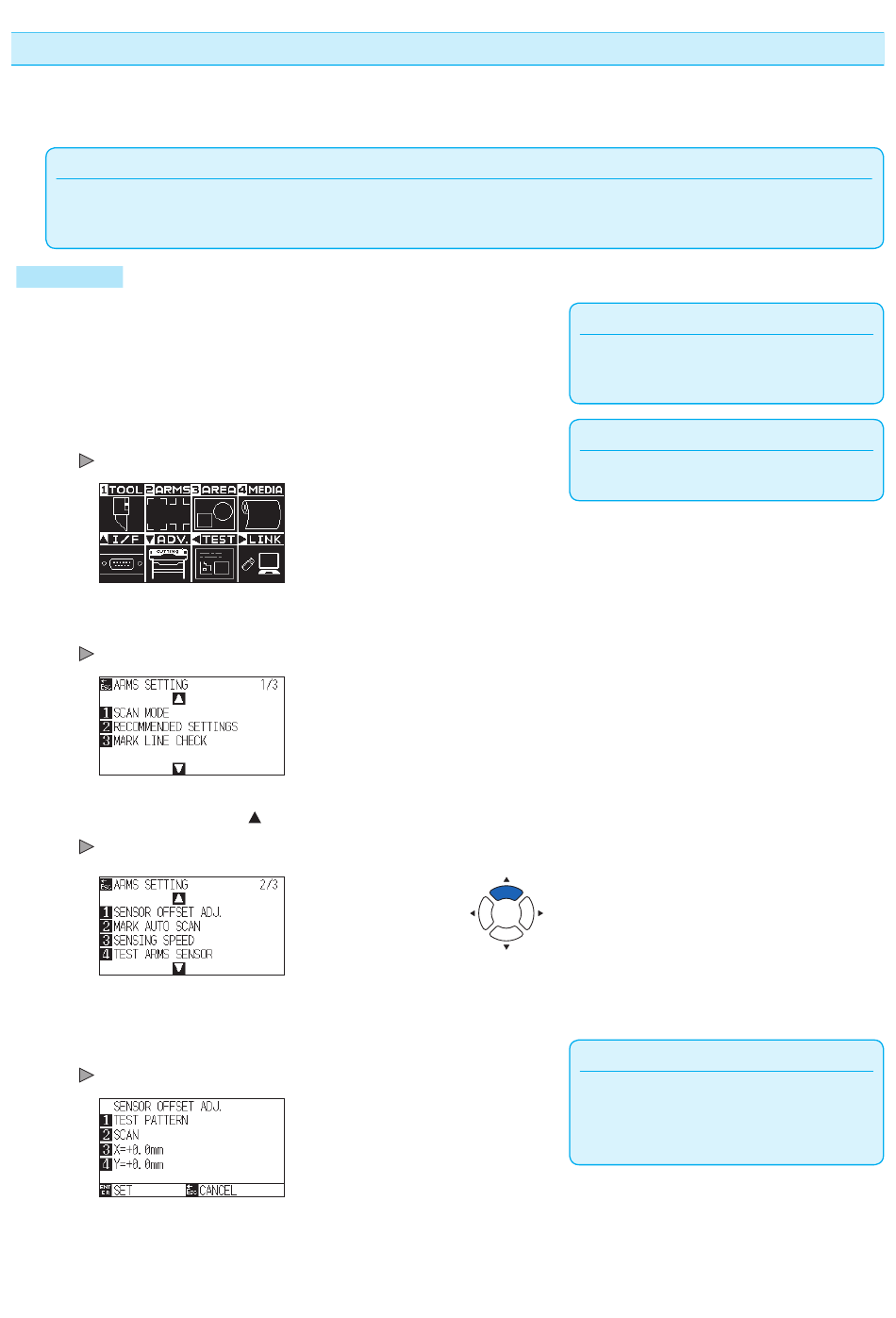

Detect the registration mark for adjustment on the media and enter the value

Method to enter the adjustment value, which is the difference between the scanned registration mark on the
media and the cutting position, is described here.
Supplement
Plot the registration mark before going to following steps if there is no registration mark drawn on the media. See "Adjust After Plotting
the Adjustment Registration Mark" to plot registration marks.
Operation
1
Load the media with adjustment registration mark in the
plotter.
2
Press the [PAUSE/MENU] key.
MENU screen is displayed.
3
Press the [2] key (ARMS).
ARMS SETTING screen (1/3) is displayed.
4
Press the POSITION ( ) key.
ARMS SETTING screen (2/3) is displayed.
5
Press the [1] key (SENSOR OFFSET ADJ.).
SENSOR OFFSET ADJ. screen is displayed.
Supplement
See "Loading Media (Paper or Marking Film)"
for loading the media.
Supplement
Perform the settings in Normal mode.
Supplement
It will return to ARMS SETTING screen (3/4)
without changing the settings when you press
the [ESC] key (CANCEL).
