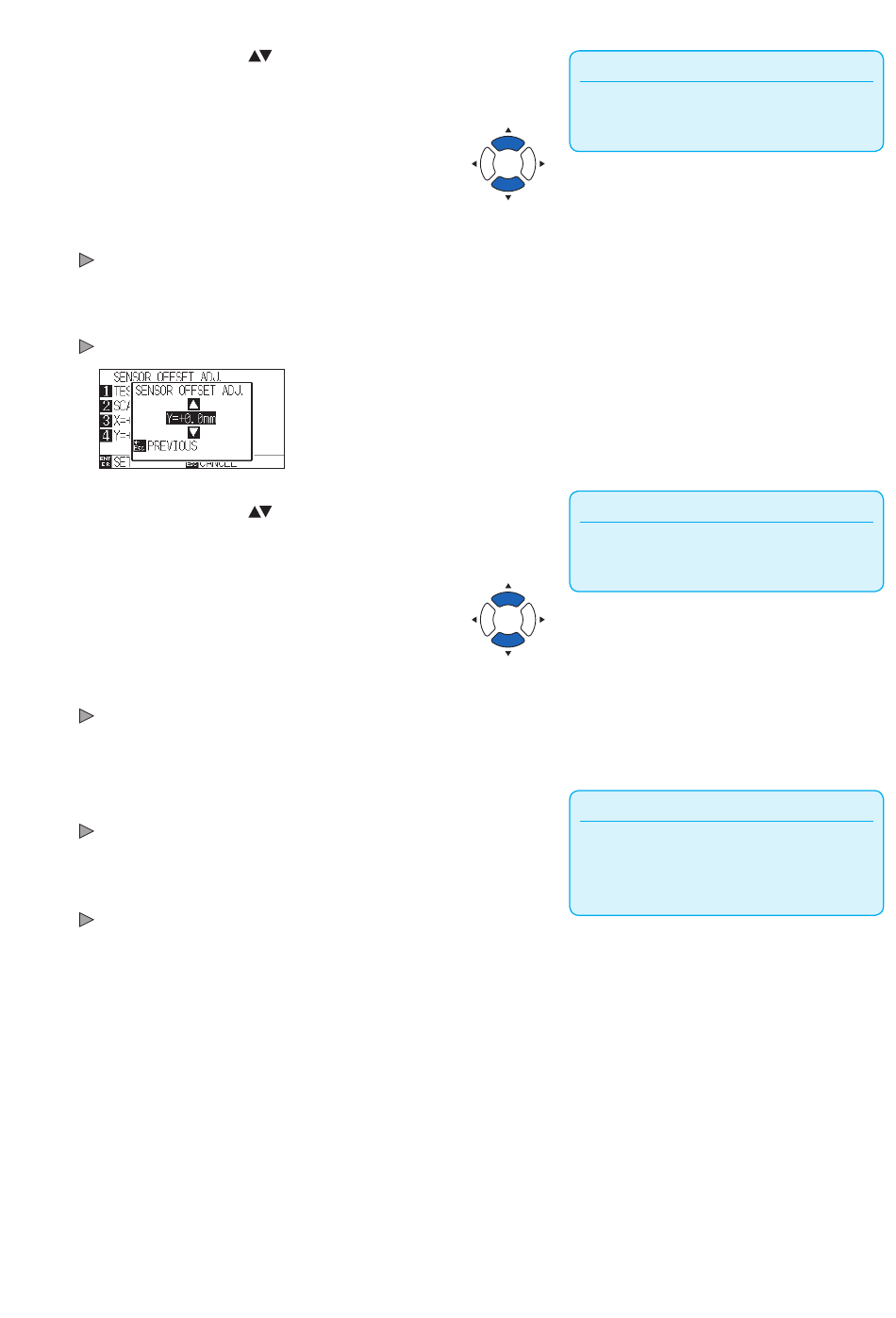

GRAPHTEC CE7000 Series User Manual page 156

11
Press the POSITION (
setting value
Set the X value measured in step 9.
12
Confirm the setting and press the [ESC] key (PREVIOUS).
SENSOR OFFSET ADJ. is selected and it will return to SENSOR
OFFSET ADJ. screen.
13
Press the [4] key (Y).
SENSOR OFFSET ADJ. Y screen is displayed.
14
Press the POSITION (
setting value.
Set the Y value measured in step 9.
15
Confirm the setting and press the [ESC] key (PREVIOUS).
SENSOR OFFSET is selected and it will return to SENSOR OFFSET
ADJ. screen.
16
Confirm the setting and press the [ENTER] key (SET).
Setting will be confirmed and it will return to ARMS SETTING screen
(2/3).
17
Press the [PAUSE/MENU] key.
It will return to the default screen.
) keys and increase or decrease the
) keys and increase or decrease the
5-22
Supplement
You can set the range between -3.0mm and
+3.0mm.
Supplement
You can set the range between -3.0mm and
+3.0mm.
Supplement
It will return to ARMS SETTING screen (2/3)
without changing the setting when you press the
[ESC] key (CANCEL).
