Moving the pen while raised or lowered in Response to the 'W' command (COMMAND 'W')

Here, you can change the settings for the 'W' command, which is a GP-GL arc cutting command.
This function set the operation upon receipt of the 'W' command for the drawing of arcs.
The pen will move to the specified starting position in the raised status when it is set to TOOL UP, regardless of
the pen's conditions. The pen will move without changing its condition, to the specified starting position in the
lowered status when it is set to TOOL DOWN.
Supplement
This has an effect on the tool cutter only. For the pen setting, always the pen is raised (PEN UP).

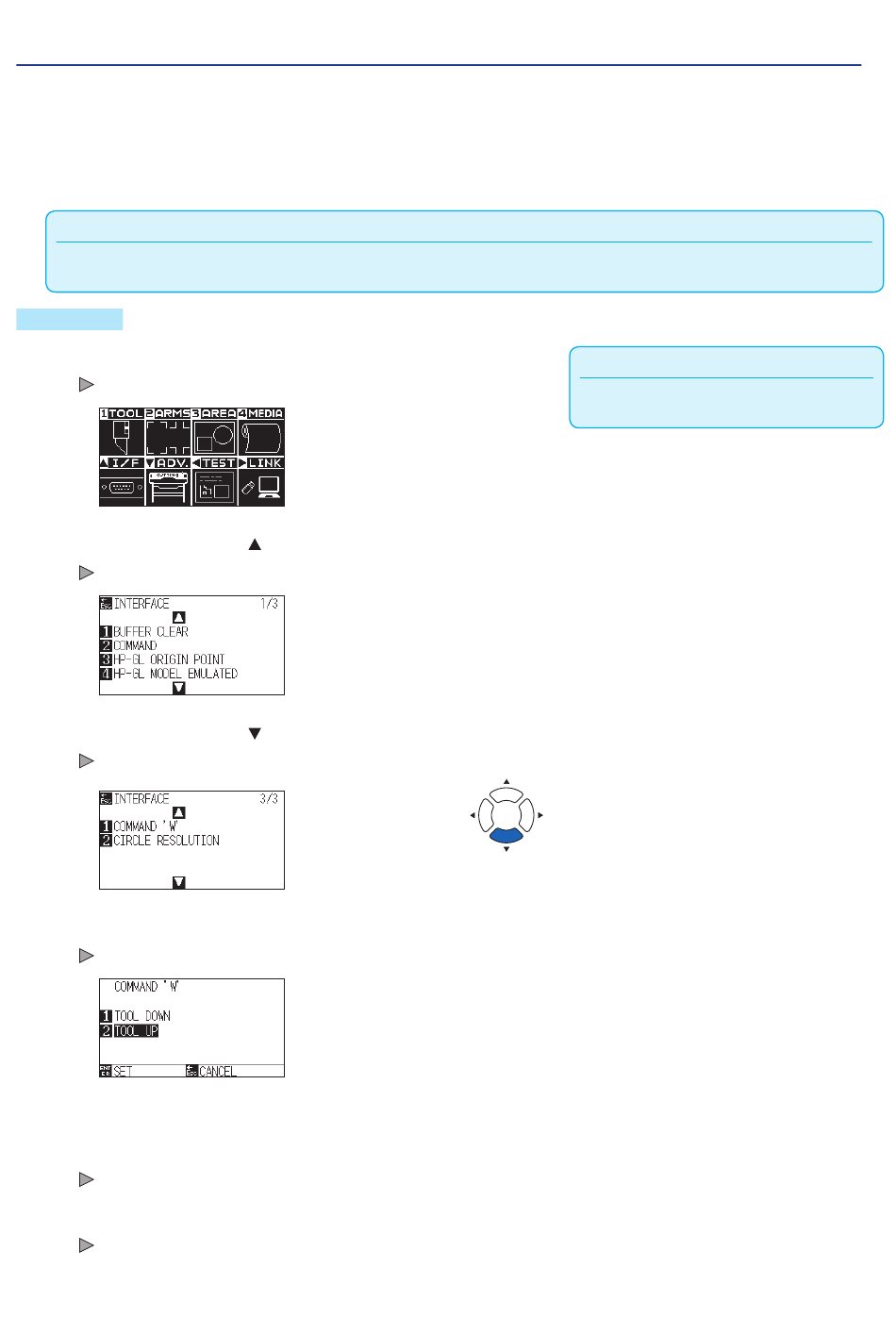

Operation
1
Press the [PAUSE/MENU] key in the default screen.
MENU screen is displayed.
2
Press the POSITION ( ) key (I/F).
INTERFACE screen (1/3) is displayed.
3
Press the POSITION ( ) key.
INTERFACE screen (3/3) is displayed.
4
Press the [1] key (COMMAND 'W').
COMMAND 'W' screen is displayed.
5
Press the [1] key (TOOL DOWN) or the [2] key (TOOL UP).
6
Confirm the setting and press the [ENTER] key (SET).
Setting will be confirmed and it will return to INTERFACE screen (3/3).
7
Press the [PAUSE/MENU] key.
It will return to default screen.
Supplement
Perform the settings in Normal mode.
11-6
