6.2

Manual Position Adjust

Method of manual position adjust is described here.
Supplement
•
Adjustment will be cleared if following is done after setting the adjustment.
• Set new origin point.
• Set the media again.
• Set rotation or mirror. (Set the rotation or mirror prior to the axis adjustment)
Axis adjustment will convert in accordance with rotation or mirror in this case.
•
When the inclination of the axis is too large when setting the first and second point, the first and third point, the third and fourth point,
or the second and fourth point, "Angle adjustment error, please reset" will be displayed. After setting the media so as to make the
inclination small, please perform adjustment operations.
•
Axis adjustment will be cleared when point 1 and point 2 is set to same point.
Operation
1
Load the media on which the registration mark patterns are
printed.
(See "Loading Media (Paper or Marking Film)".)
2
Set a cutter plunger or a pen in the tool holder.
3

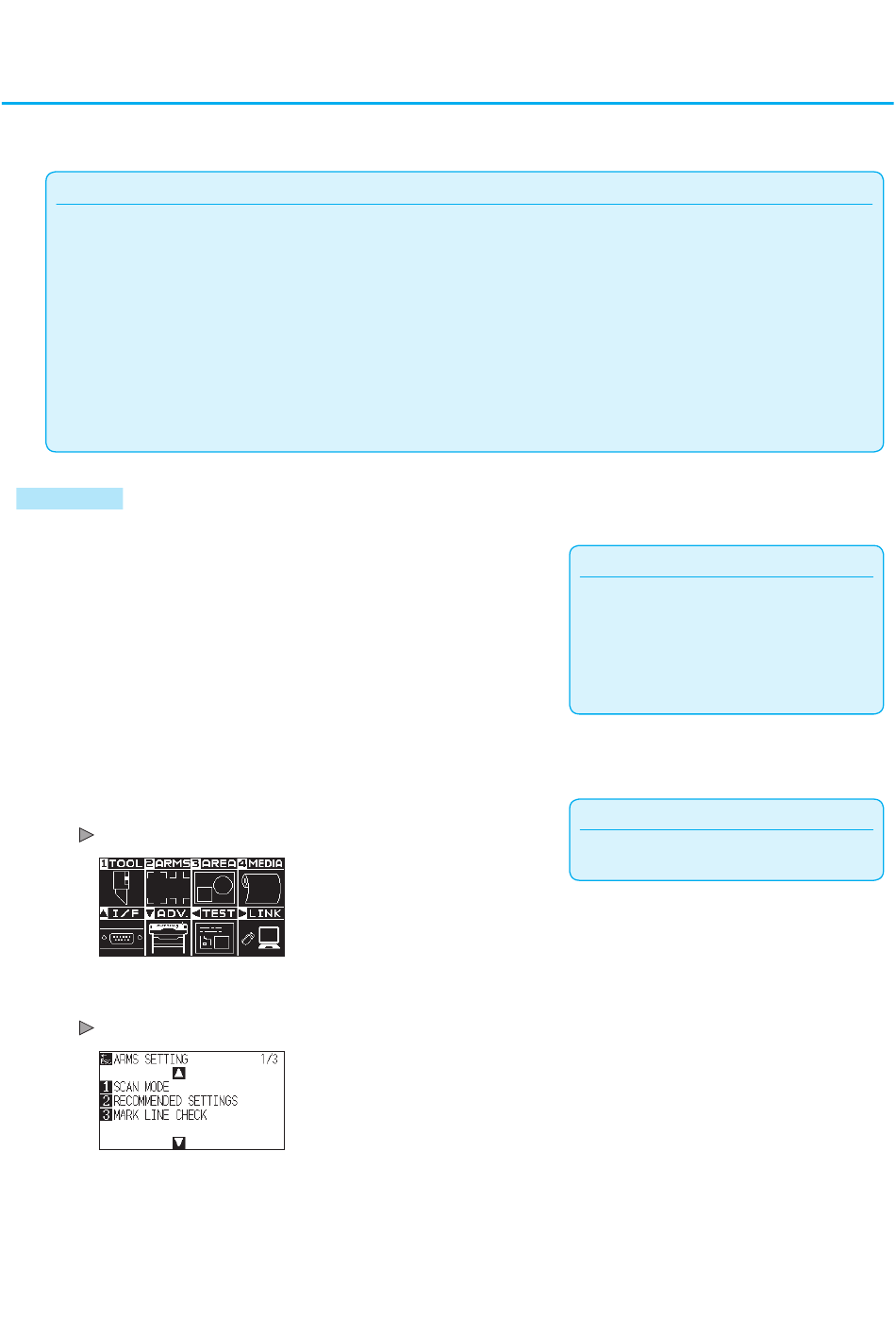

Press the [PAUSE/MENU] key.
MENU screen is displayed.
4
Press the [2] key (ARMS).
ARMS SETTING screen (1/3) is displayed.
Supplement
Confirm that the push roller is steadily on the
media within the range of media movement. This
adjustment is based on assumption that media
is slightly tilted. Media might fall off if the tilting
of the media is too large.
Supplement
Perform the settings in Normal mode.
