Positioning of the media and the registration mark

Place the registration mark away from the edge of media to scan the registration mark.
Make sure the push roller location is outside of the registration mark.

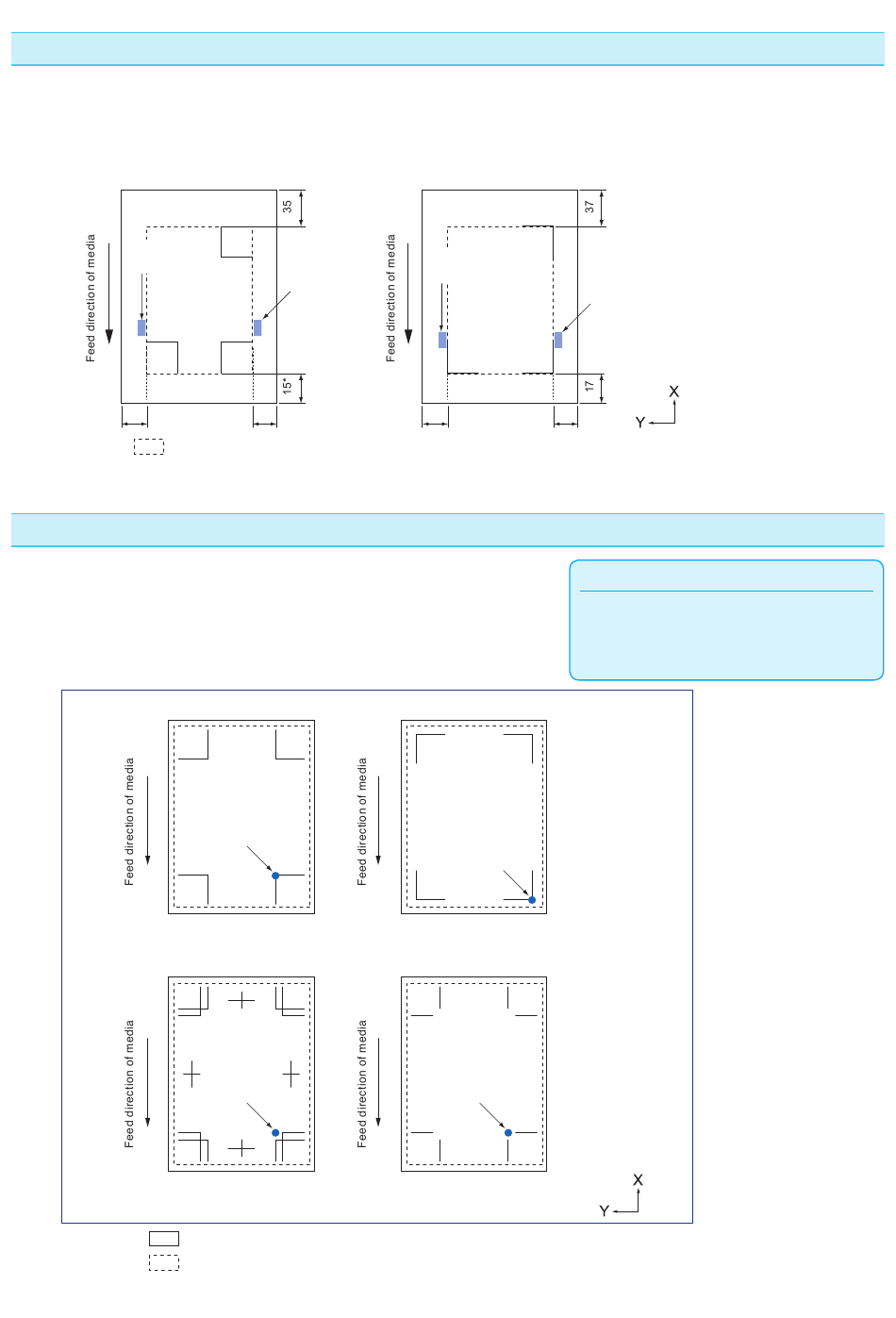

Draw the registration mark as shown in the next image.
MARK TYPE 11
Leftmost push
roller
15
Cutting area (same as the area after scanning the registration mark)
* When the expand limit is set to 1
or more, it will be 10.

Cutting area when adjusting the regisitaration mark

Even when the registration marks are being adjusted, you can cut
the outside of the registration mark (cutting area).
Rightmost push
roller
15
MARK TYPE 1
Origin point
MARK TYPE 3
Origin point
Media
Cutting area (same as the area after scanning the registration mark)
MARK TYPE 2
Leftmost push
roller
Rightmost push
roller
15 15
Supplement
If the distortion due to the adjustment is large,
there is a possibility that the cutting area is
reduced.
MARK TYPE 2
Origin point
MARK TYPE 4
Origin point
5-6
Unit: mm
