2.12.2 Origin Point Settings When configuring HP-GL (Simple mode)

When using the HP-GL command, the origin point is set to either the lower left of the cutting area or the center.
When using the GP-GL command, this setting does not affect the operation.
Command settings are automatic in Simple mode.
This can also be set in Normal mode.
Supplement
See "Settings of Controls from Computer" for more information.
Operation

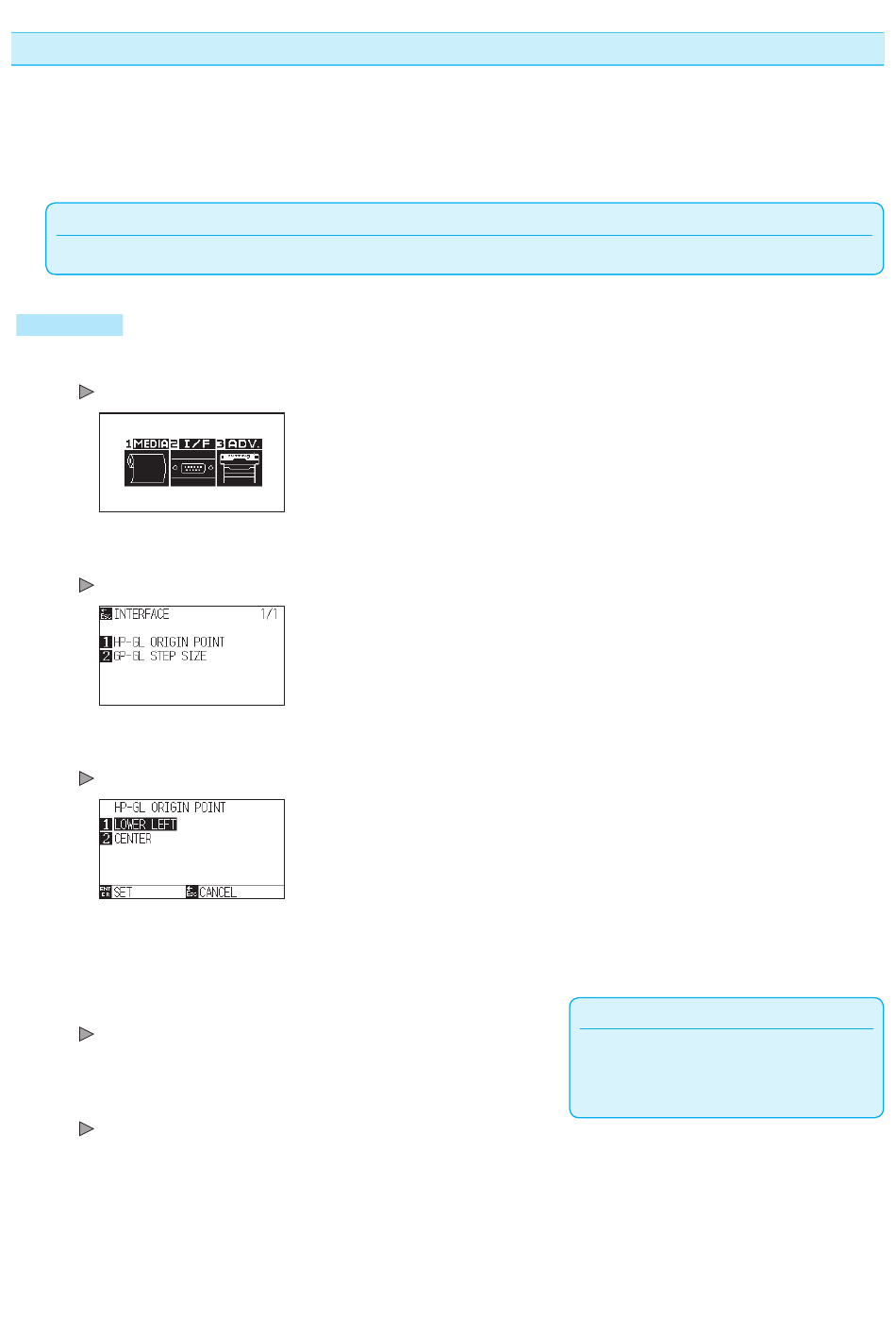

1
Press [PAUSE/MENU] key.
MENU screen is displayed.
2
Press [2] key (I/F).
INTERFACE screen is displayed.
3
Press [1] key (HP-GL ORIGIN POINT).
HP-GL ORIGIN POINT setting screen is displayed.
4
Press [1] key (LOWER LEFT) or [2] (CENTER).
5
Confirm the setting and press the [ENTER] key (SET).
Setting will be set, and it will return to INTERFACE screen.
6
Press [PAUSE/MENU] key.
It will return to default screen.
Supplement
It will return to INTERFACE screen without
changing the settings when you press the [ESC]
key (CANCEL).
